REMOVAL AND INSTALLATION

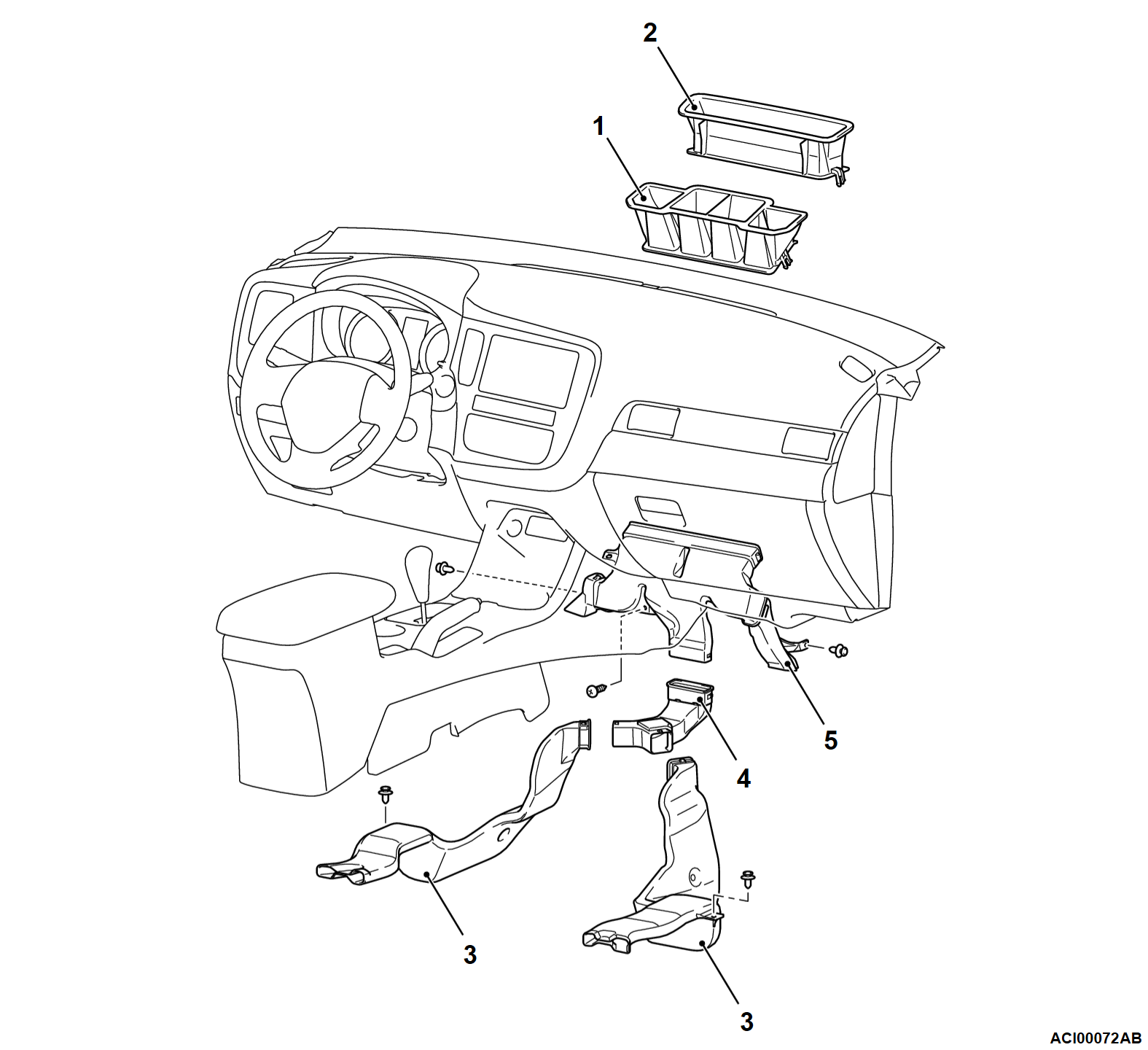

<Center duct, rear heater duct, foot duct>
Center duct removal steps
•Instrument panel assembly (Refer to GROUP 52A - Instrumental Panel ).
•Rear console duct A (Refer to ) <Vehicles with rear floor console duct>.
1.Rear center duct
2.Front center duct
Rear heater duct removal steps
•Center floor console (Refer to GROUP 52A - Front Floor Console ).
•Bottom cover assembly (driver's side &passenger's side) (Refer to GROUP 52A - Instrumental Panel ).
3.Rear heater duct B
•Front seat assembly (Refer to GROUP 52A - Front Seat ).
•Front scuff plate, cowl side trim (Refer to GROUP 52A - Interior Trim ).
•Turn up the floor carpet.
4.Rear heater duct A
Foot duct removal steps
•Heater assembly (Refer to ).
5.Foot duct

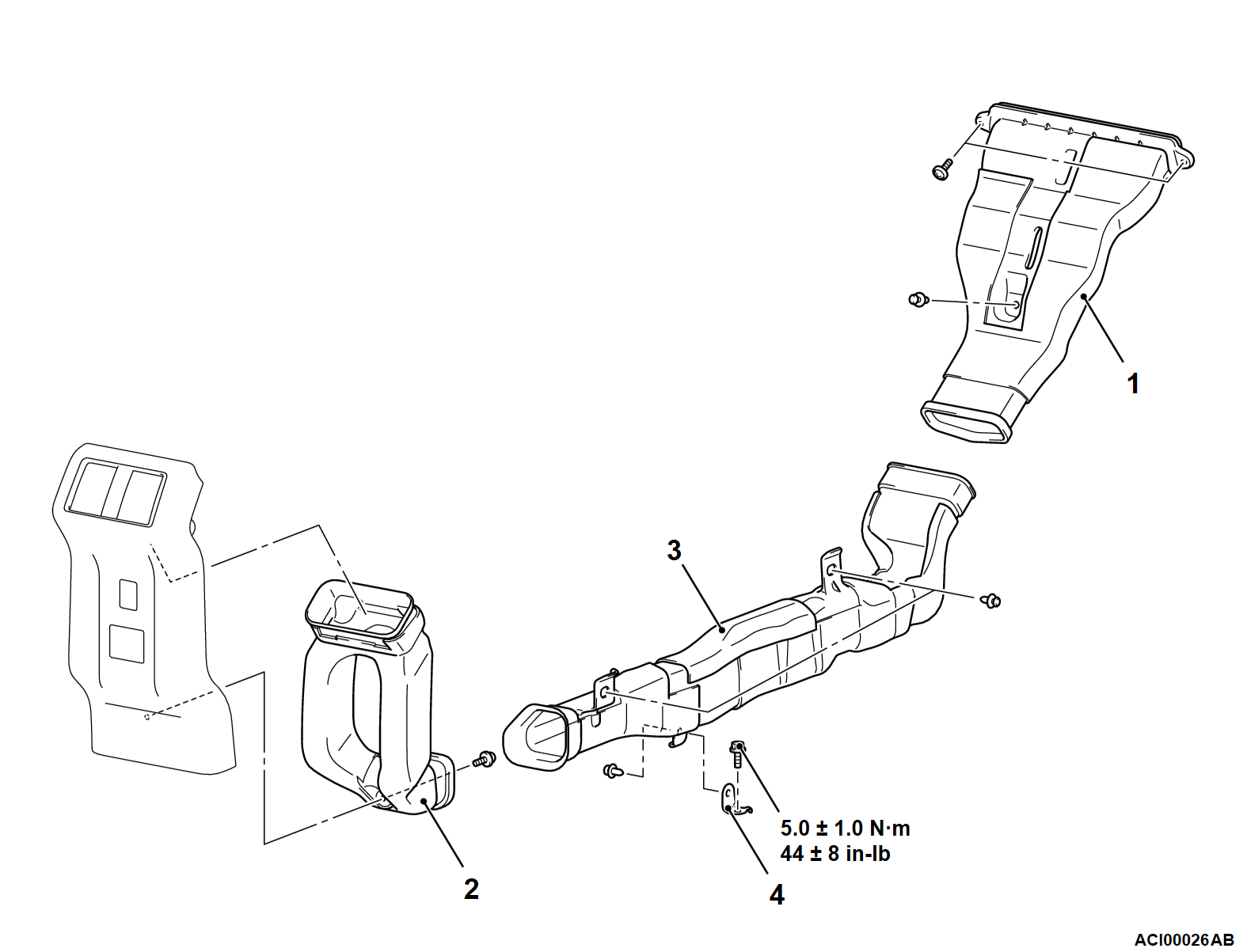

<Rear console duct>
Rear console duct A removal steps
•Front deck crossmember (Refer to ).
1.Rear console duct A
Rear console duct B, C removal steps
•Rear floor console accessory panel (Refer to GROUP 52A - Rear Floor Console ).
2.Rear console duct C
•Center floor console (Refer to GROUP 52A - Front Floor Console ).
3.Rear console duct B
4.Console duct bracket
