REMOVAL AND INSTALLATION

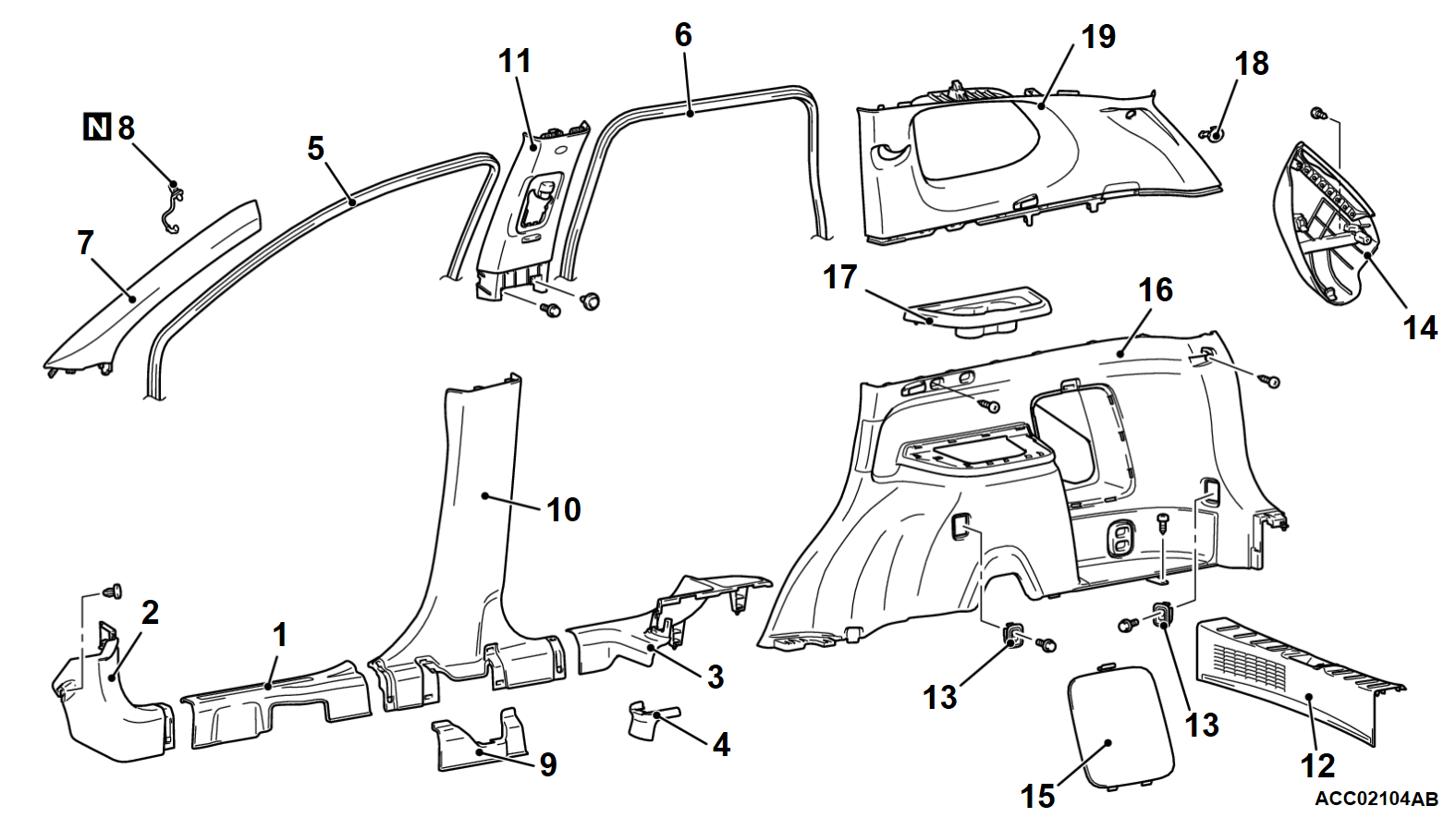

Removal steps
1.Front scuff plate
2.Cowl side trim
3.Rear scuff plate
4.Rear scuff plate front
5.Front door opening trim
6.Rear door opening trim
7.Front pillar trim
8.Garnish clip
9.Center pillar trim lower cover
Seat belt pre-tensioner connector connection
10.Center pillar trim, lower
11.Center pillar trim, upper
12.Rear end trim
13.Cargo hook assembly
14.Quarter trim cover
15.Jack lid assembly
16.Quarter trim lower
17.Quarter trim tray
18.Quarter trim upper cap
19.Quarter trim upper

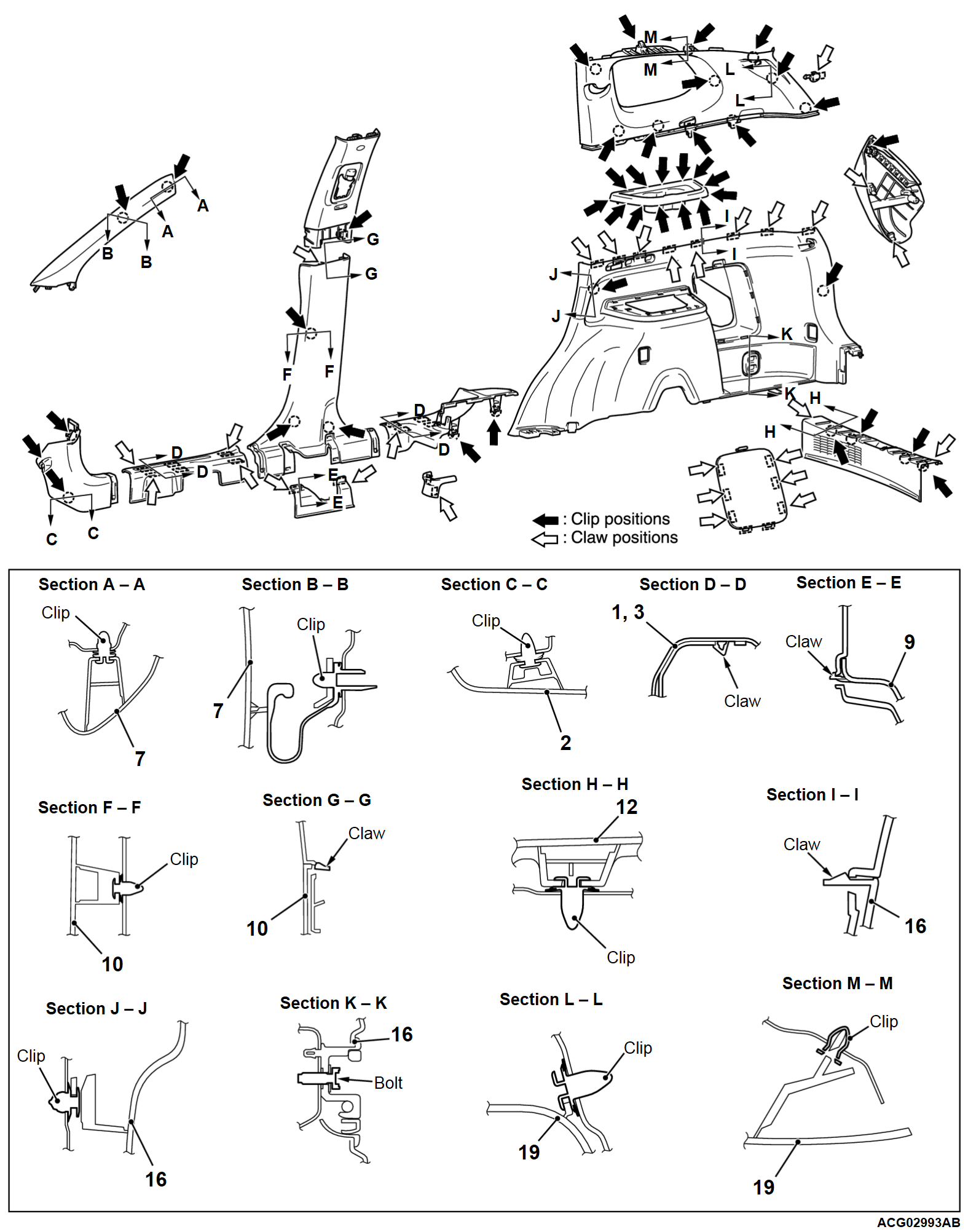

CLIP AND CLAW POSITIONS
noteEach number in the illustration indicates a part number.
