REMOVAL AND INSTALLATION

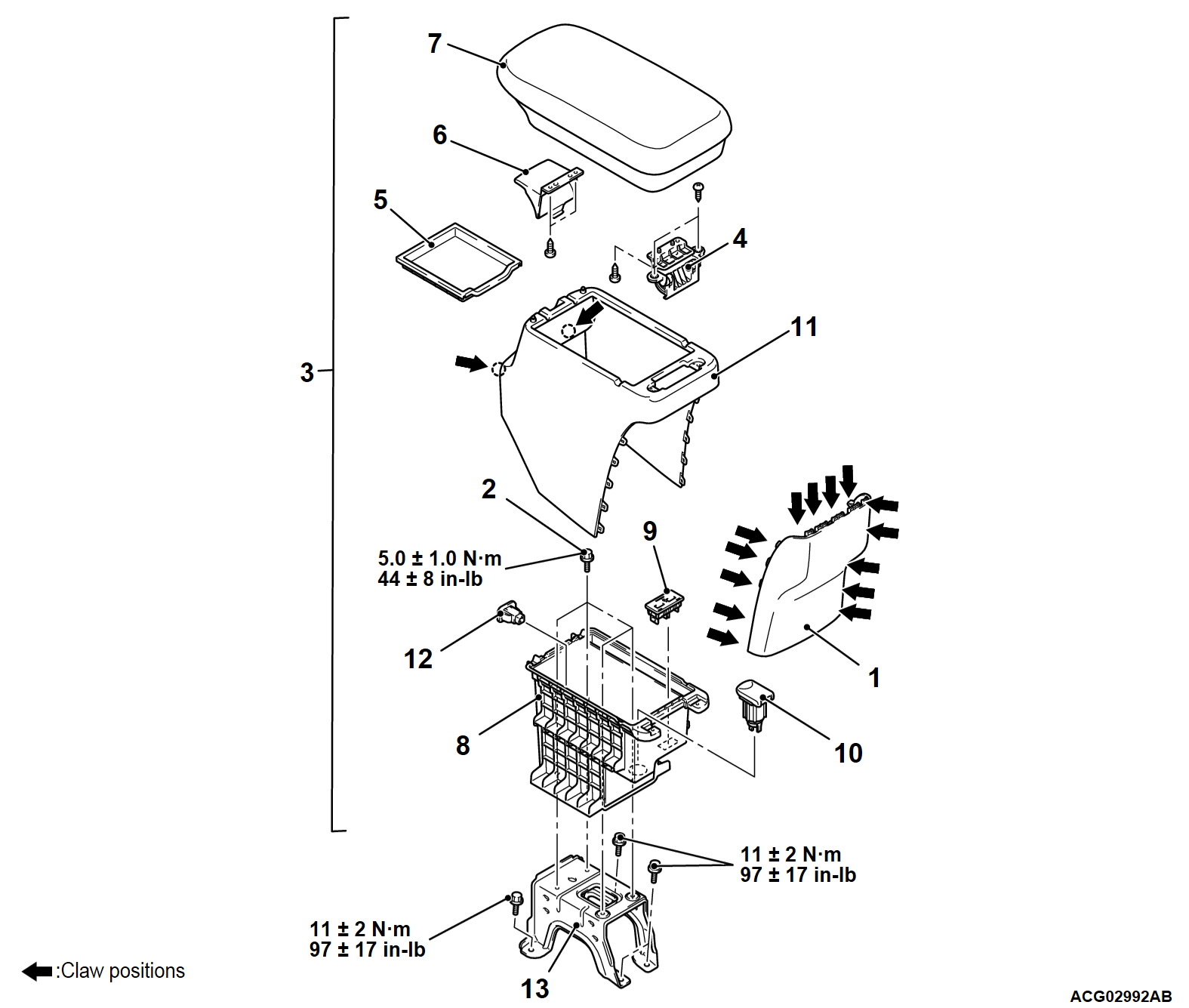

<EXCEPT VEHICLES WITH ELECTRIC PARKING BRAKE>
Disassembly steps
1.Floor rear console accessory panel
•Accessory socket connector connection
•USB adapter connector connection
2.Rear floor console assembly mounting bolt
3.Rear floor console assembly
4.Hinge assembly
5.Armrest tray
6.Floor console lid lock lever
7.Floor console lid
8.Floor console box inner
9.USB adapter
10.Accessory socket
11.Rear console
12.Floor console box lamp
13.Floor console bracket rear

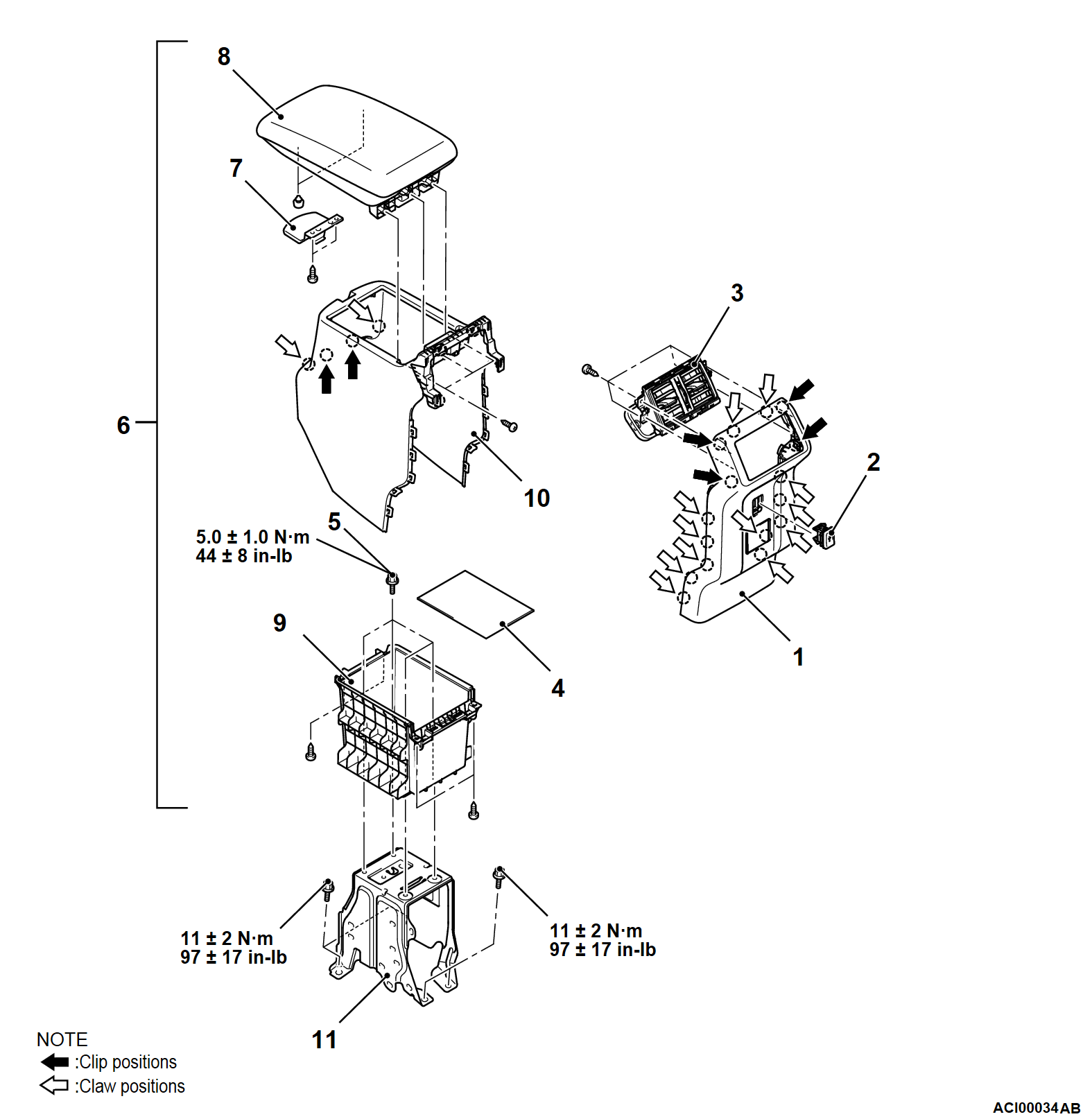

<VEHICLES WITH ELECTRIC PARKING BRAKE>
Removal steps
1.Rear floor console accessory panel
2.USB adapter
•Rear console duct C (Refer to GROUP 55 - Duct ).
3.Rear floor console air outlet
4.Floor console box mat
5.Rear floor console assembly mounting bolt
6.Rear floor console assembly
7.Floor console lid lock lever
8.Floor console lid
9.Floor console box inner
10.Rear floor console
•Electric parking brake ECU and electric parking brake ECU bracket (Refer to GROUP 36 - Electric Parking Brake ECU ).
11.Rear floor console bracket
