REMOVAL AND INSTALLATION


cautionDo not reuse the electric parking brake ECU when you detach the electric parking brake ECU bracket from the electric parking brake ECU. (The bracket cannot hold the ECU any more due to the detachment.)
Pre-removal and Post-installation Operation
  • Rear Floor Console Assembly Removal and Installation (Refer to GROUP 52A - Rear Floor Console Assembly ).

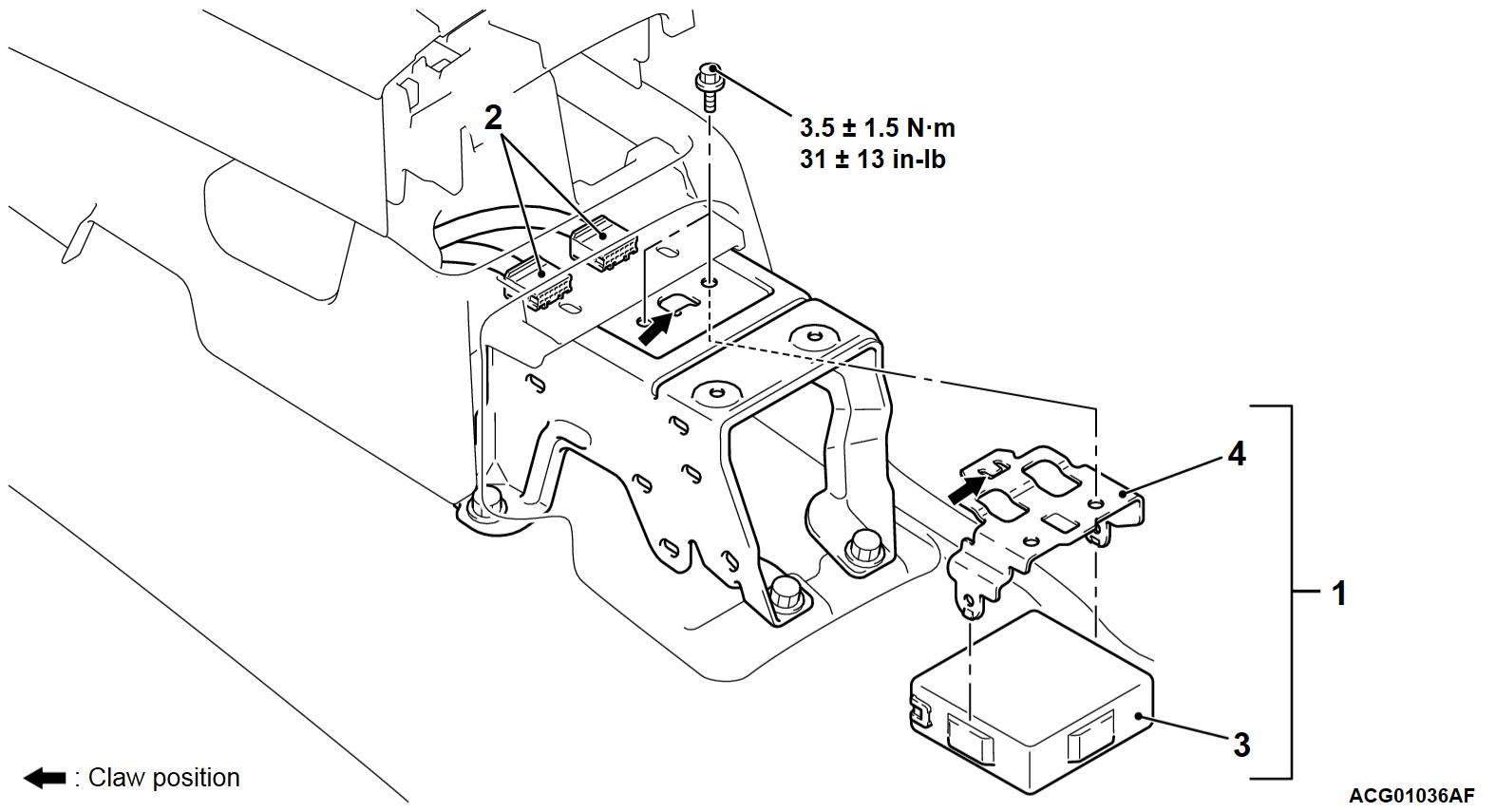

Removal steps
<<A>>>>B<<1.Electric parking brake ECU and electric parking brake ECU bracket
<<A>>>>B<<2.Electric parking brake ECU connector connection
3.Electric parking brake ECU
>>A<<4.Electric parking brake ECU bracket


REMOVAL SERVICE POINT


<<A>> ELECTRIC PARKING BRAKE ECU AND ELECTRIC PARKING BRAKE ECU BRACKET REMOVAL/ELECTRIC PARKING BRAKE ECU CONNECTOR DISCONNECTION
1. Remove the two mounting bolts securing the electric parking brake ECU and the electric parking brake ECU bracket.
2. Disengage the tab on the electric parking brake ECU bracket.
3. Disconnect the electric parking brake ECU connector.
4.
cautionDo not reuse the electric parking brake ECU when you detach the electric parking brake ECU bracket from the electric parking brake ECU. (The bracket cannot hold the ECU any more due to the detachment.)

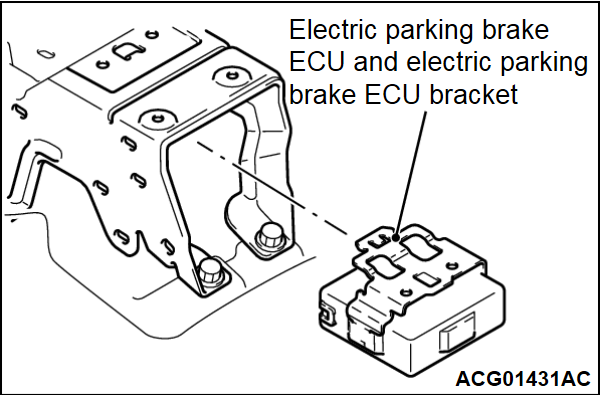

Twist the electric parking brake ECU and the electric parking brake ECU bracket 90° to remove them behind the vehicle.




INSTALLATION SERVICE POINTS


>>A<< ELECTRIC PARKING BRAKE ECU BRACKET INSTALLATION

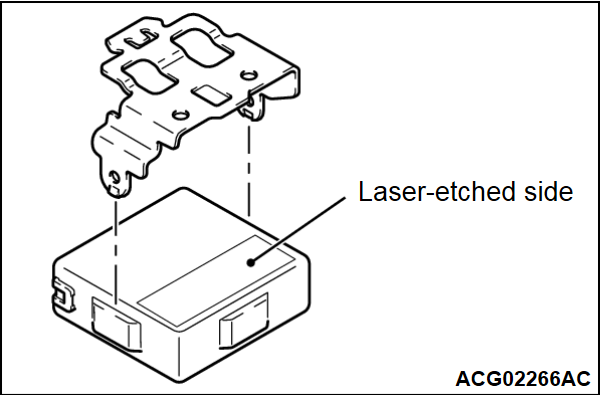

The laser-etched side of the electric parking brake ECU should face up. Then attach the ECU to the bracket.



>>B<< ELECTRIC PARKING BRAKE ECU CONNECTOR DISCONNECTION CONNECTION/ELECTRIC PARKING BRAKE ECU AND ELECTRIC PARKING BRAKE ECU BRACKET INSTALLATION
1. Insert the electric parking brake ECU and the electric parking brake ECU bracket from behind the vehicle.
2. Connect the electric parking brake ECU connector.
3.
cautionEnsure that the tab behind the electric parking brake ECU bracket is engaged securely.

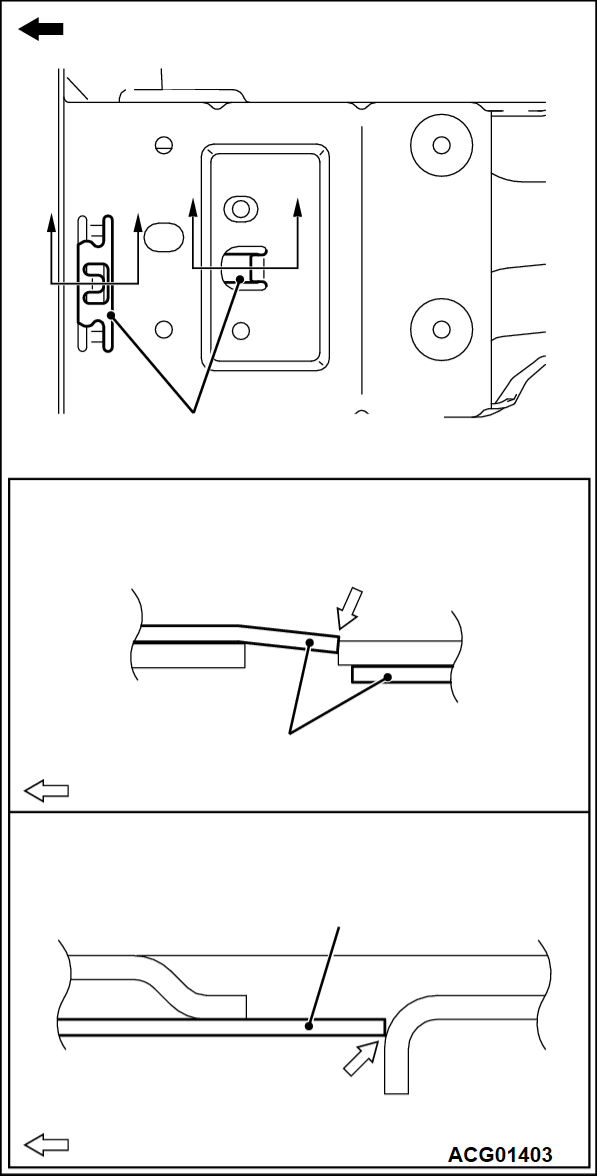

Engage the tab in front of the electric parking brake ECU bracket, and then engage the tab behind the bracket.
4. Install the two mounting bolts securing the electric parking brake ECU and the electric parking brake ECU bracket.
Tightening torque: 3.5 ± 1.5 N·m (31 ± 13 in-lb)
