REMOVAL AND INSTALLATION


caution
  • Before removing the front seat assembly, refer to GROUP 52B, Service Precautions and Side Airbag Module (s) .
  • Before removing the front seat assembly, refer to GROUP 52B, Occupant Classification ECU , Occupant Classification Sensor .

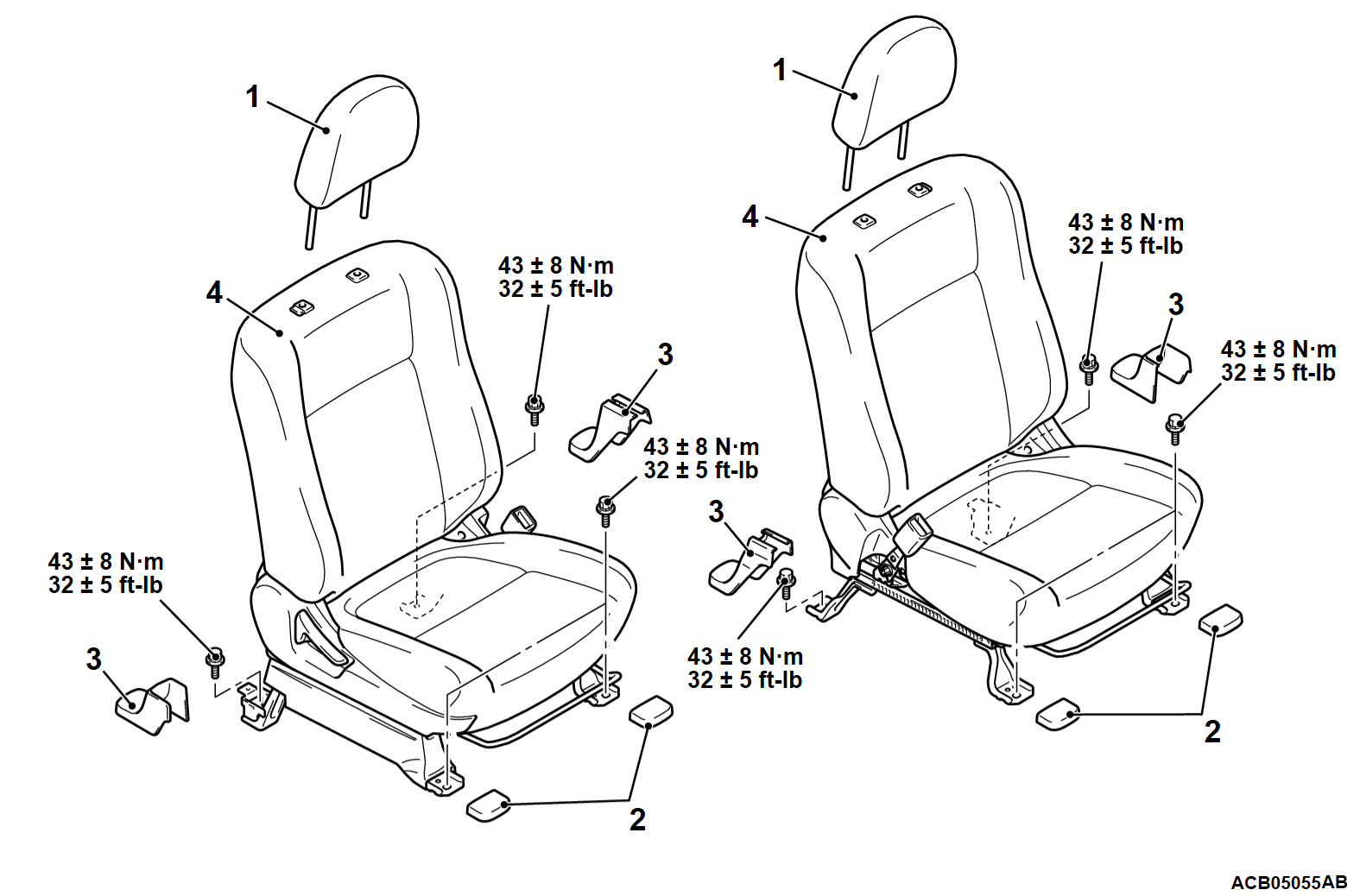

Removal steps
1.Headrestraint
2.Front seat anchor cover
3.Rear seat anchor cover
<<A>>•Wiring harness connectors connection
>>A<<4.Front seat assembly


REMOVAL SERVICE POINT


<<A>> WIRING HARNESS CONNECTOR DISCONNECTION

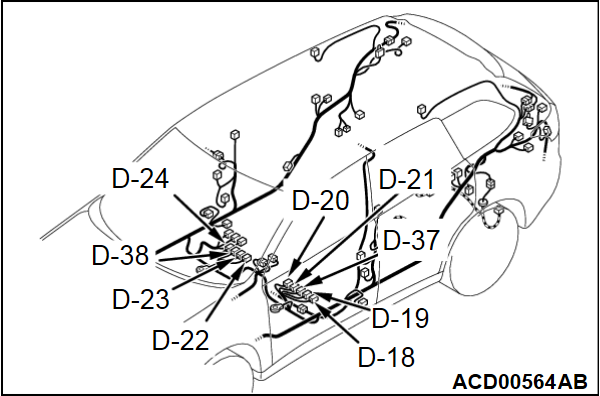

Disconnect the following wiring harness connectors:
Connector numberConnector name
D-18 (2)Power seat <Vehicle with power seat>
D-19 (4 - black)Heated seat (LH) <Vehicle with heated seat>
D-20 (2 - black)Front seat belt switch (Driver’s side)
D-21 (2 - yellow)Side air bag module (squib) (LH)
D-22 (2 - yellow)Side air bag module (squib) (RH)
D-23 (2 - black)Front seat belt switch (Passenger’s side)
D-24 (4 - black)Heated seat (RH) <Vehicle with heated seat>
D-37 (2 - gray)Seat slide sensor
D-38 (4 - black)Front seat assembly (Passenger’s side) (occupant classification-ECU)

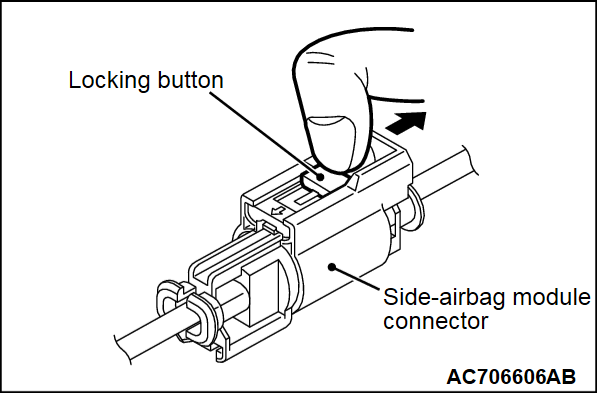

noteWhen disconnecting the side air bag module connectors of D-21 and D-22, unlock the connector by sliding the locking button to the direction of the arrow as shown in the figure, and then disconnect the connector.




INSTALLATION SERVICE POINT


>>A<< FRONT SEAT ASSEMBLY INSTALLATION

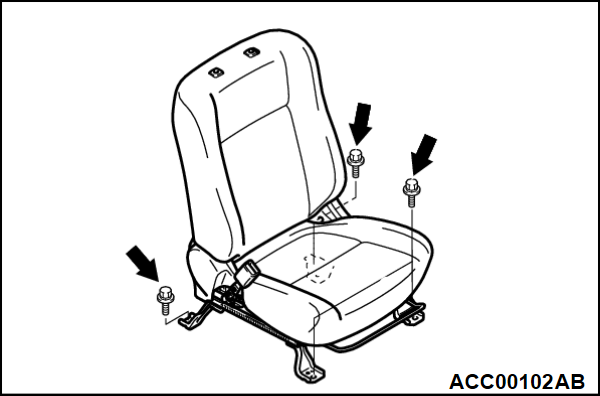

1. Confirm that both the seat slides are locked, and then temporarily tighten all the bolts shown in the figure so that no load is applied to the front seat cushion.
2. Tighten all the bolts to the specified torque.
Tightening torque: 43 ± 8 N·m (32 ± 5 ft-lb)
