52A-FRONT FLOOR CONSOLE ASSEMBLY REMOVAL AND INSTALLATION

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation

Instrument Panel Lower Center Removal and Installation (Refer to Instrument Panel Assembly

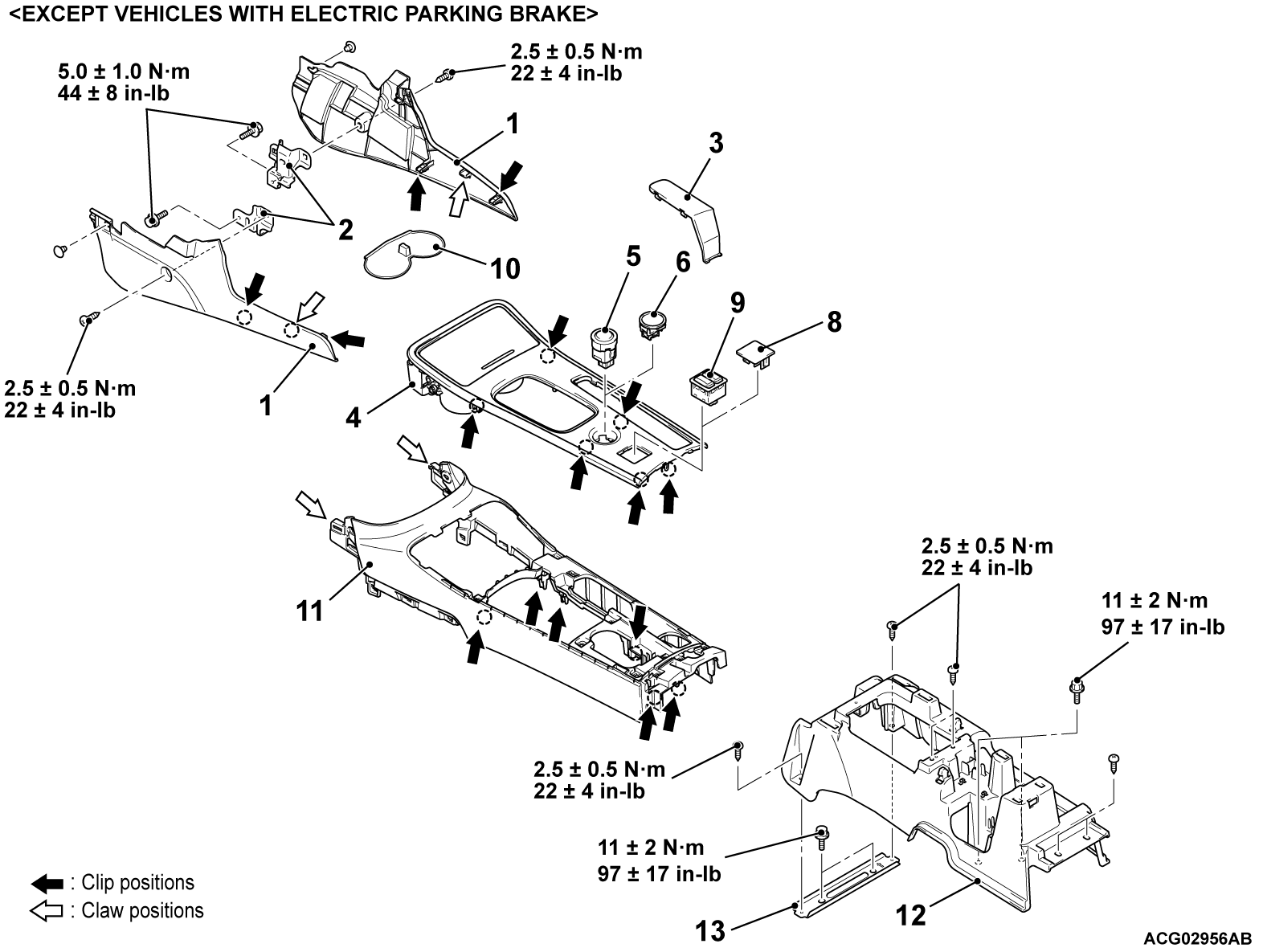

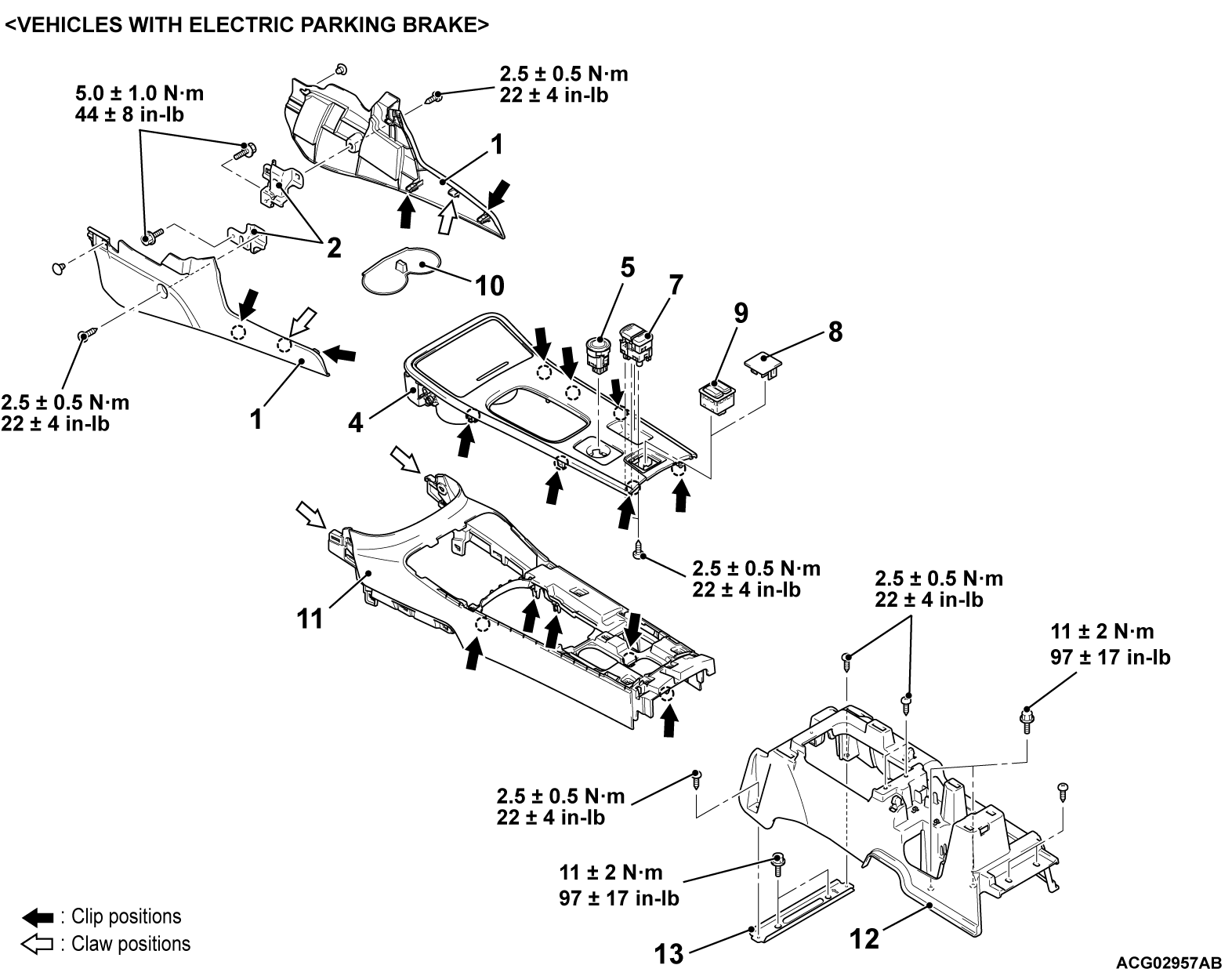

			Removal steps
		1.	Floor console side cover
		2.	Floor console bracket front
		•	Rear floor console assembly (Refer to ).
		•	Selector lever knob [Refer to GROUP 23A - Transaxle Control (CVT) or GROUP 23C - Transaxle Control (A/T)]
		3.	Floor console parking brake lever cover
		4.	Front console panel assembly
		•	Drive mode selector connector connection
		5.	Drive mode selector <AWD>
		6.	Floor console plug <FWD>
		7.	Electric parking brake switch
		8.	Plug <Vehicles without heated seat>
		•	Heated seat switch connector connection <Vehicles with heated seat>
		9.	Heated seat switch <Vehicles with heated seat>
		10.	Floor console box mat
		11.	Floor console center
		•	Inside transmission antenna (front) (Refer to GROUP 42B - Outside Transmission Antenna, Inside Transmission Antenna Assembly, Receiver Antenna Module ).
		12.	Floor console front
		13.	Floor console trim plate bracket
