REMOVAL AND INSTALLATION


Pre-removal and post-installation operation
  • Transmission range switch and control cable adjustment check (Refer to .)
  • Selector lever operation check (Refer to .)

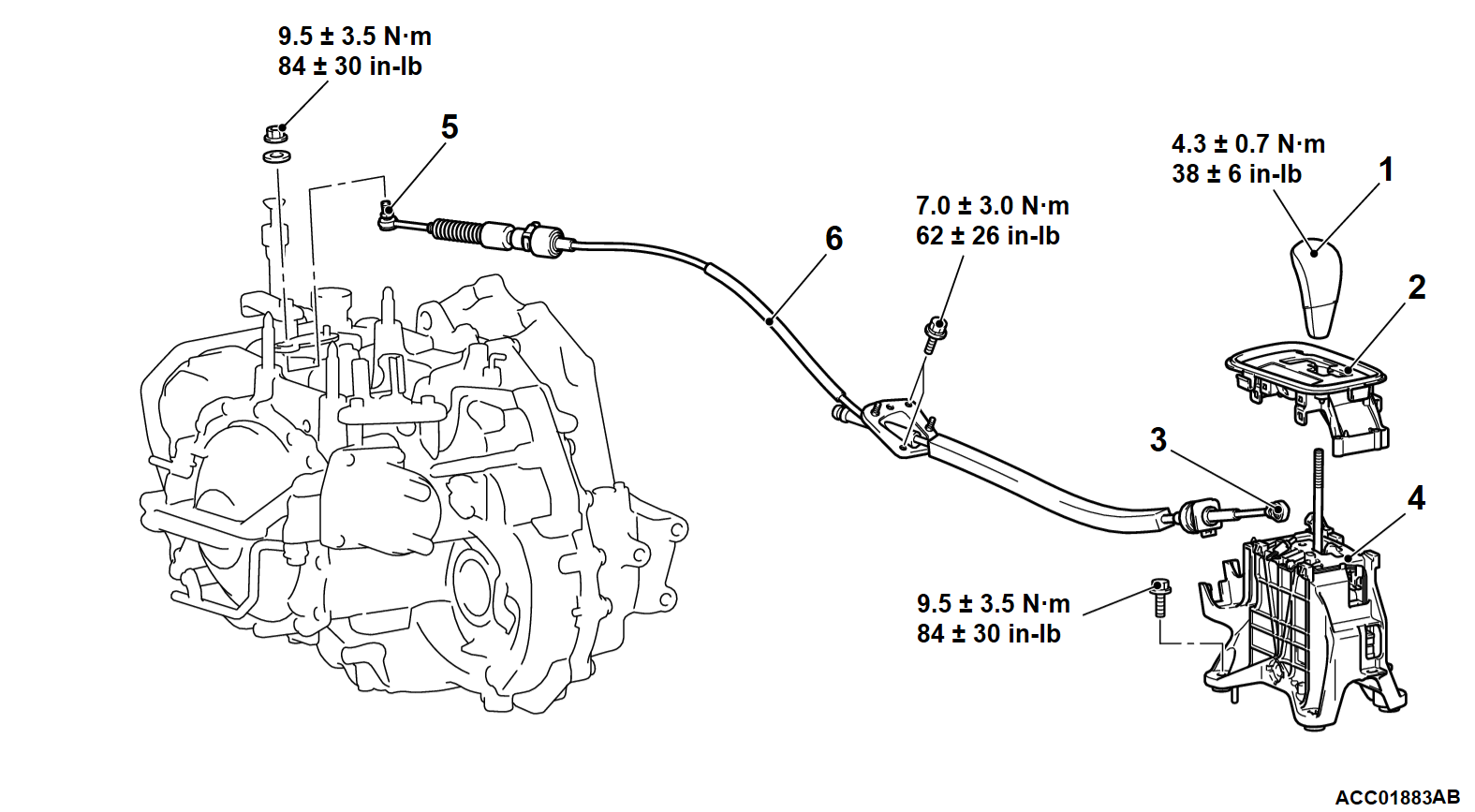

Removal steps
Move the selector lever to the N position.
1.Selector lever knob
2.Shift indicator panel
Floor console center removal (Refer to GROUP 52A - Floor Console Assembly .)
3.transaxle control cable connection (selector lever side)
Connectors and harnesses connections
4.Selector lever assembly
Control unit cover, SRS-ECU (Refer to GROUP 52B - SRS-ECU .)
Battery and battery tray (Refer to GROUP 54A - Battery .)
Air Cleaner bracket (Refer to GROUP 15 - Air Cleaner .)
5.transaxle control cable connection (transaxle side)
6.transaxle control cable
