1. Move the selector lever to the "N" range.
2. Loosen the adjusting nut so that the manual control lever moves freely.
3. Move the manual control lever to neutral position.

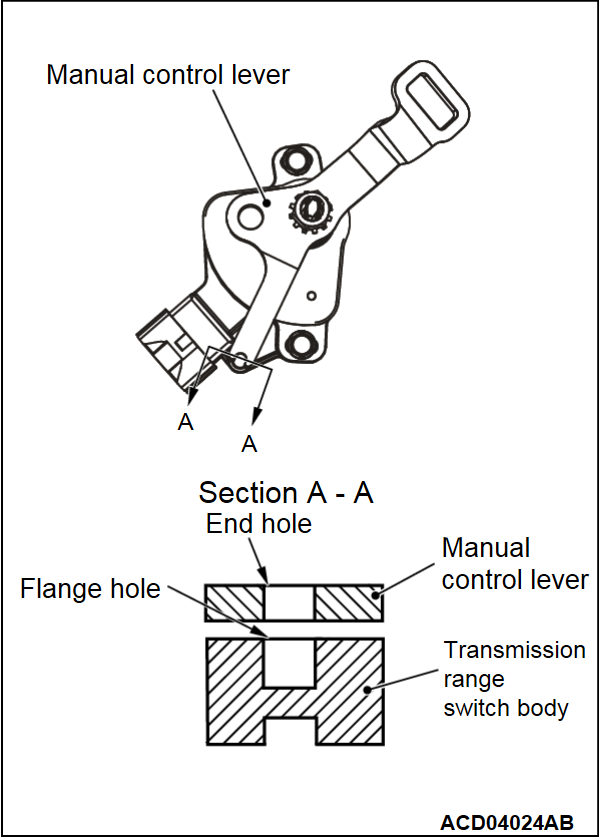

4. Align the hole at the end of the manual control lever and the hole in the transmission range switch body flange (section A - A).| note | Insert a Φ5 bar into the aligned holes in the transmission range switch body flange and on the tip of the manual control lever to position the transmission range switch body. |

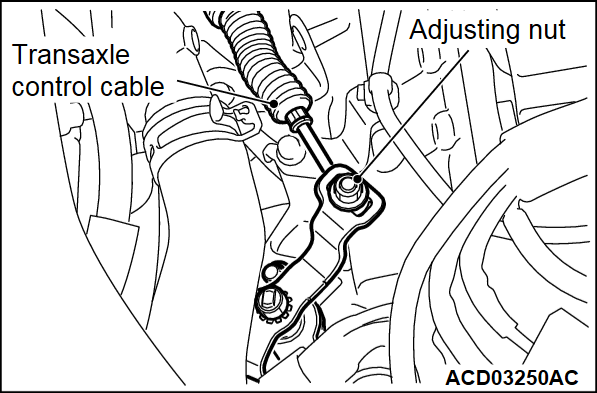

5. Use the adjusting nut to tighten the transaxle control cable to the specified torque.Tightening torque: 9.5 ± 3.5 N·m (84 ± 30 in-lb)
6. Make sure that the selector lever is in the "N" range.
7. Make sure that the transaxle side ranges that are corresponding to the selector lever position operate and function without fail.
