REMOVAL AND INSTALLATION
caution
  • When the battery current sensor and the engine control module are replaced, make the battery current sensor learn the neutral point by using the scan tool. (Refer to GROUP 00 - Precautions before Service, Battery Current Sensor Calibration <2.4L ENGINE> .)

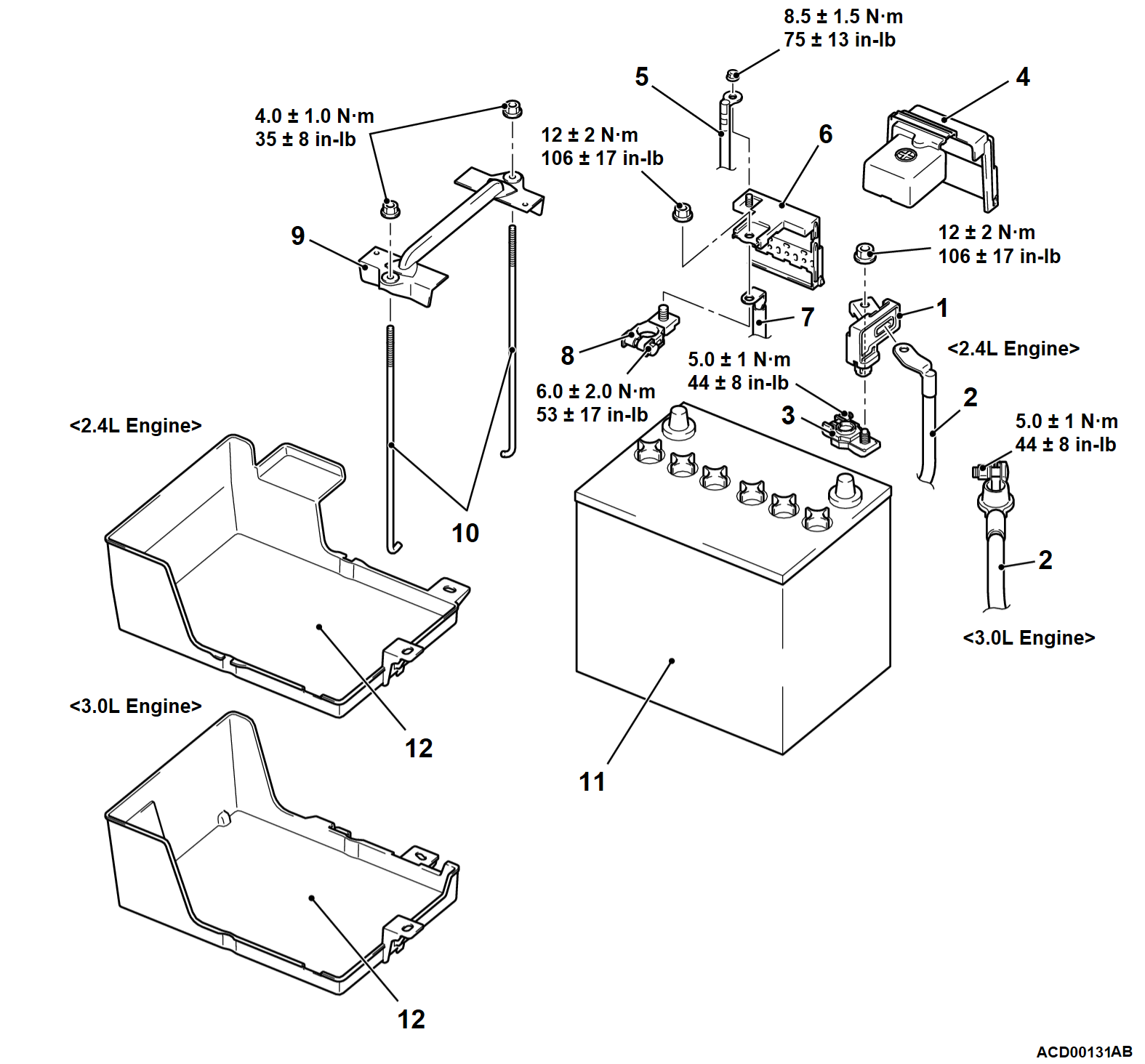

Removal steps
1.Battery current sensor <2.4L Engine>
2.Battery (-) terminal connection harness
3.Battery (-) terminal assembly <2.4L Engine>
Air cleaner intake duct (Refer to GROUP 15 - Air Cleaner .) <2.4L Engine>
4.Fusible link box cover
5.Battery (+) terminal connection harness
6.Fusible link box
7.Battery (+) terminal connection harness
8.Battery terminal assembly
9.Battery holder
10.Battery bolt
11.Battery
12.Battery tray
