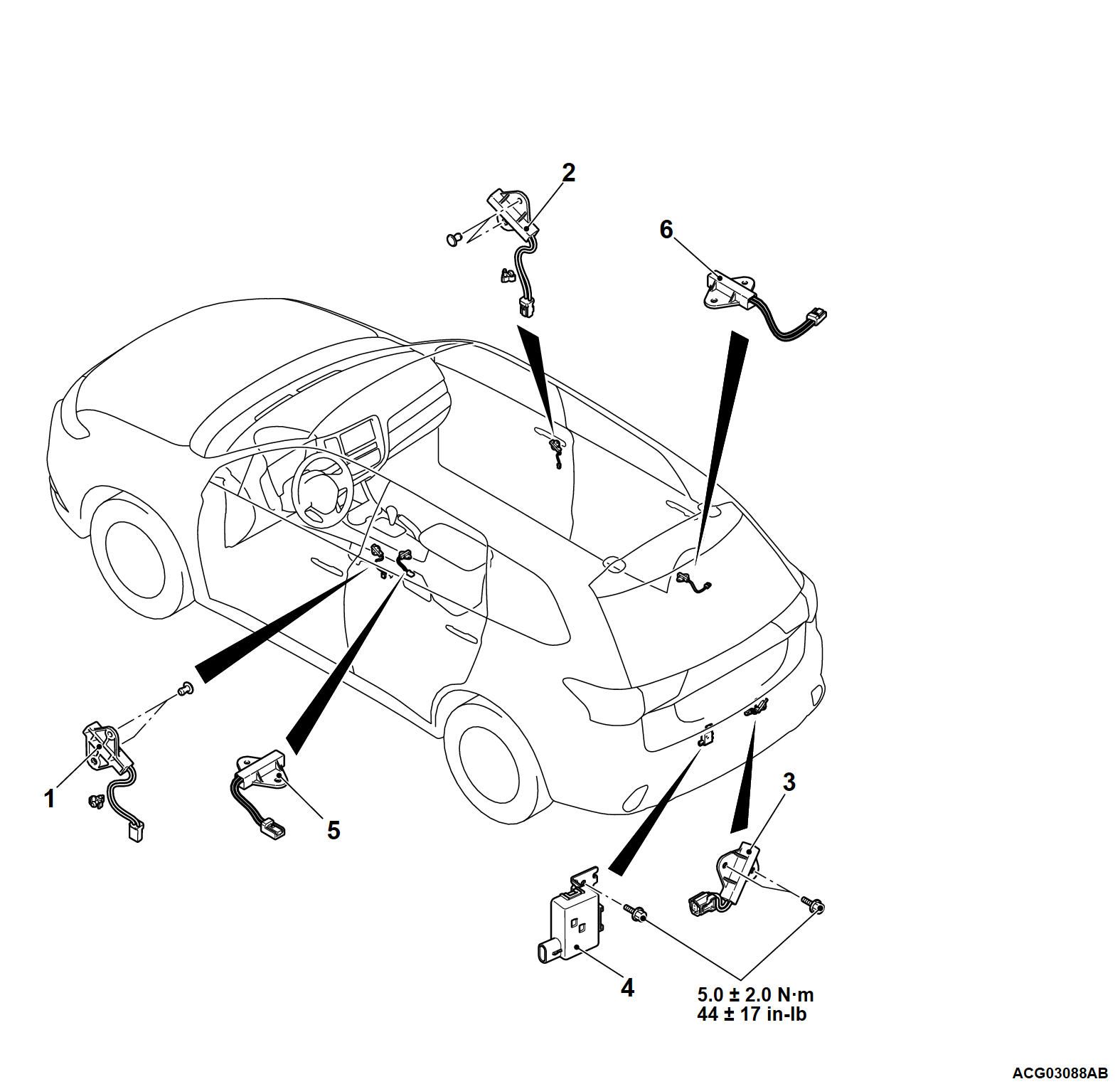

REMOVAL AND INSTALLATION


Outside transmission antenna assembly (driver’s side) removal steps
Center pillar trim, upper (LH) (Refer to GROUP 52A - Interior Trim .)
1.Outside transmission antenna assembly (driver’s side)
Outside transmission antenna assembly (passenger’s side) removal steps
Center pillar trim, upper (RH) (Refer to GROUP 52A - Interior Trim .)
2.Outside transmission antenna assembly (passenger’s side)
Outside transmission antenna assembly (liftgate) removal steps
Rear bumper assembly (Refer to GROUP 51 - Rear Bumper Assembly ).
3.Outside transmission antenna assembly (liftgate)
Tone alarm removal steps
Rear bumper assembly (Refer to GROUP 51 - Rear Bumper Assembly ).
4.Tone alarm
Inside transmission antenna assembly (front) removal steps
Floor console center (Refer to GROUP 52A - Front Floor Console Assembly .)
5.Inside transmission antenna assembly (front)
Inside transmission antenna assembly (rear) removal steps
Quarter trim tray (Refer to GROUP 52A - Interior Trim .)
6.Inside transmission antenna assembly (rear)
