REMOVAL AND INSTALLATION


Pre-removal and Post-installation Operation
  • Rear Combination Light Assembly Removal and Installation (Refer to GROUP 54A, Rear Combination Light .)
  • Rear Bumper Molding Removal and Installation (Refer to .)
  • Splash Shield Rear (rear bumper side) Removal and Installation (Refer to GROUP 42A, Splash Shield .)
  • Damper Removal and Installation (Refer to GROUP 42A, Liftgate <Vehicles without power liftgate> or <Vehicles with power liftgate>.)
  • Rear End Wiring Harness and Rear Bumper Wiring Harness Combination

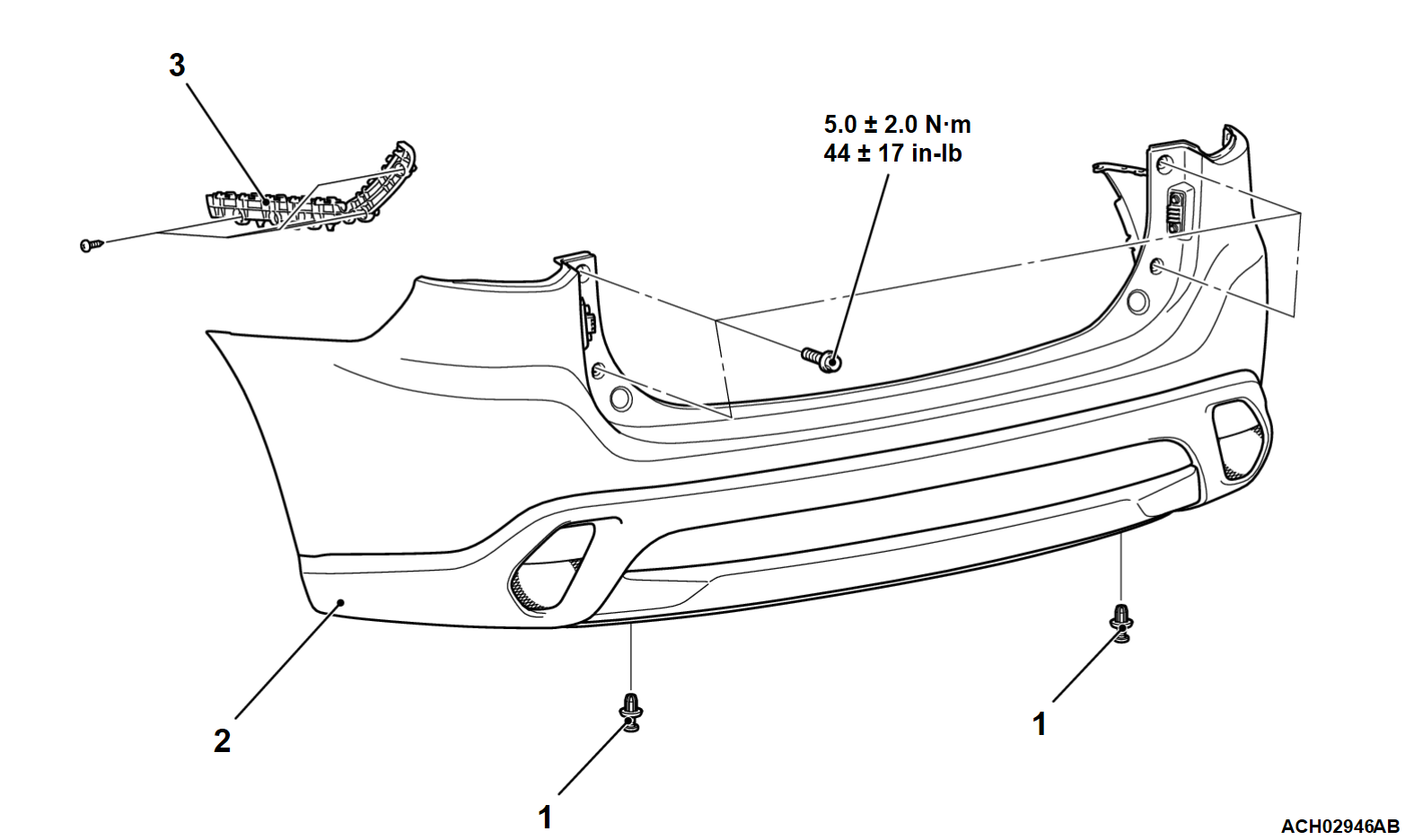

Removal steps
1.Clip
>>A<<2.Rear bumper assembly
3.Rear bumper face support bracket


INSTALLATION SERVICE POINT

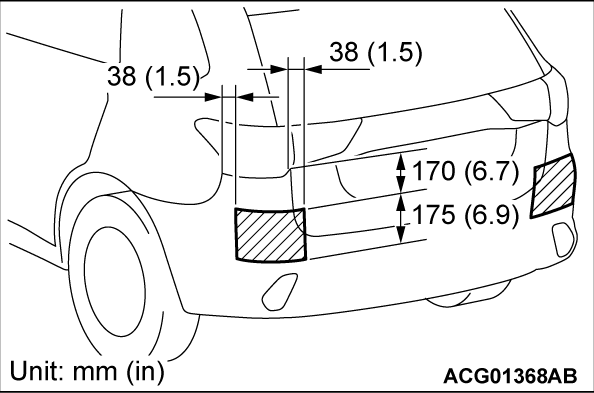

>>A<< REAR BUMPER ASSEMBLY INSTALLATION <VEHICLES WITH BLIND SPOT WARNING>
cautionDo not apply any sticker, paint or putty to the radar electric wave penetration area (shaded potion). Avoid any shocks or scratches.
The electric wave penetration areas are symmetrical on left and right.
