REMOVAL AND INSTALLATION


warningBe careful not to subject the SRS-ECU to any shocks during removal and installation of the transaxle control cable assembly.
caution
  • To remove and installation the SRS-ECU, refer to GROUP 52B-Service Precautions and SRS Control Unit .
Post-installation operation
  • Shift lock mechanism check (Refer to .)
  • Selector lever operation check (Refer to .)
  • Transmission range switch and control cable adjustment (Refer to .)

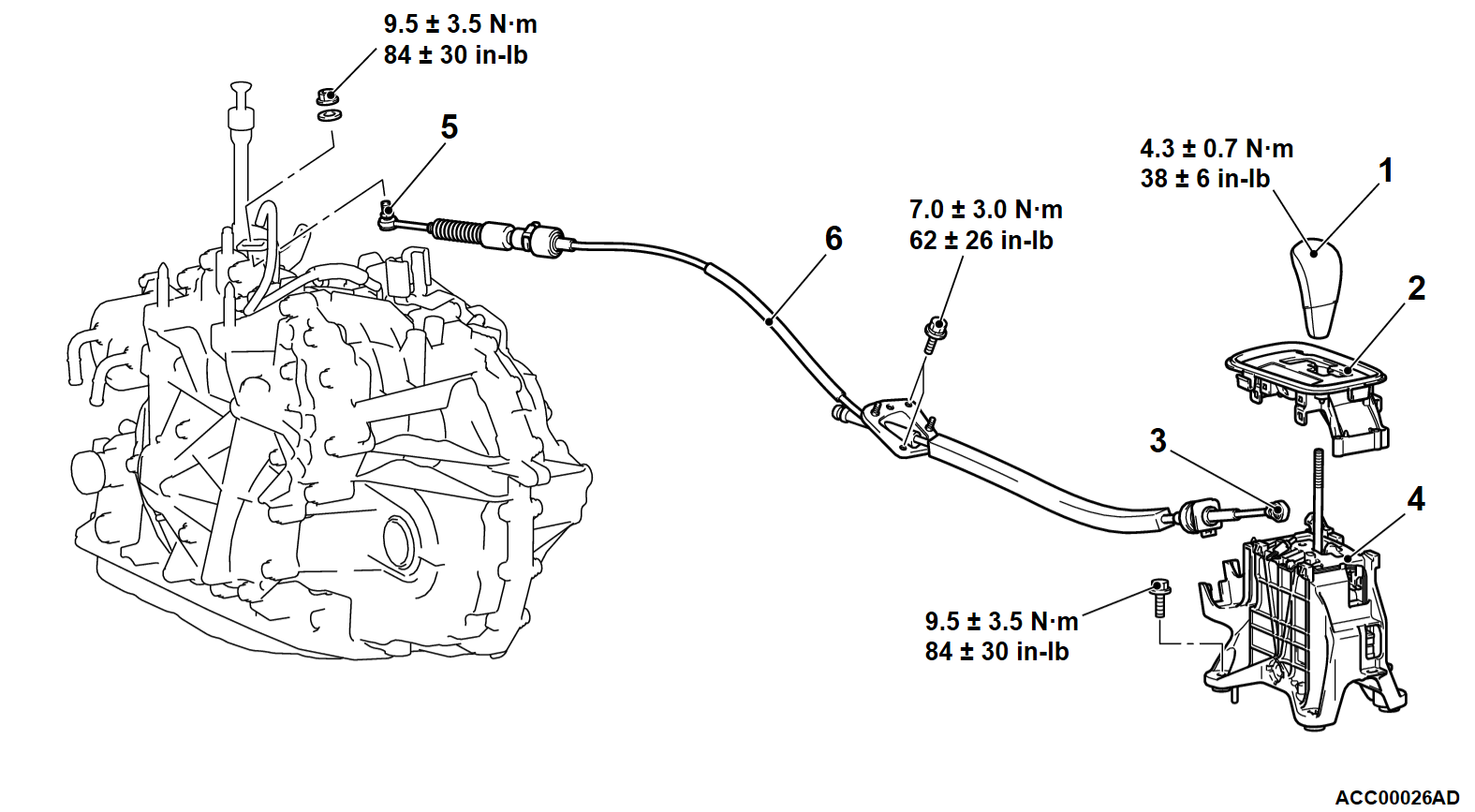

Selector lever assembly removal steps
Move the selector lever to the "N" position.
Rear floor console assembly (Refer to GROUP 52A - Rear Floor Console Assembly .)
1.Selector lever knob
2.Shift indicator panel
Front floor console center and floor console front (Refer to GROUP 52A - Front Floor Console Assembly .)
3.Transaxle control cable connection (selector lever side)
4.Selector lever assembly
Transaxle control cable assembly removal steps
Move the selector lever to the "N" position.
Rear floor console assembly (Refer to GROUP 52A - Rear Floor Console Assembly .)
1.Selector lever knob
2.Shift indicator panel
Front floor console center and floor console front (Refer to GROUP 52A - Front Floor Console Assembly .)
SRS-ECU, SRS-ECU harness cover (Refer to GROUP 52B - SRS-ECU .)
Air cleaner body (Refer to GROUP 15 - Air Cleaner .)
Battery and battery tray (Refer to GROUP 54A - Battery .)
5.Transaxle control cable connection (transaxle side)
6.Transaxle control cable
