CAMERA REMOVAL AND INSTALLATION


caution
  • When you remove/install or replace the camera, you should check the camera image on the multi around monitor "Bird’s eye-view." If necessary, calibrate the camera (Refer to ).
  • To ensure the camera image is clearly visible, wipe the lens with a damped rag and then a dry rag to remove dust, rain drops or snow.
  • Be careful not to damage the camera. Any damage may have an adverse effect on the screen image.
  • For how to remove the side view camera, refer to GROUP 51 - Door Mirror Removal and Installation .

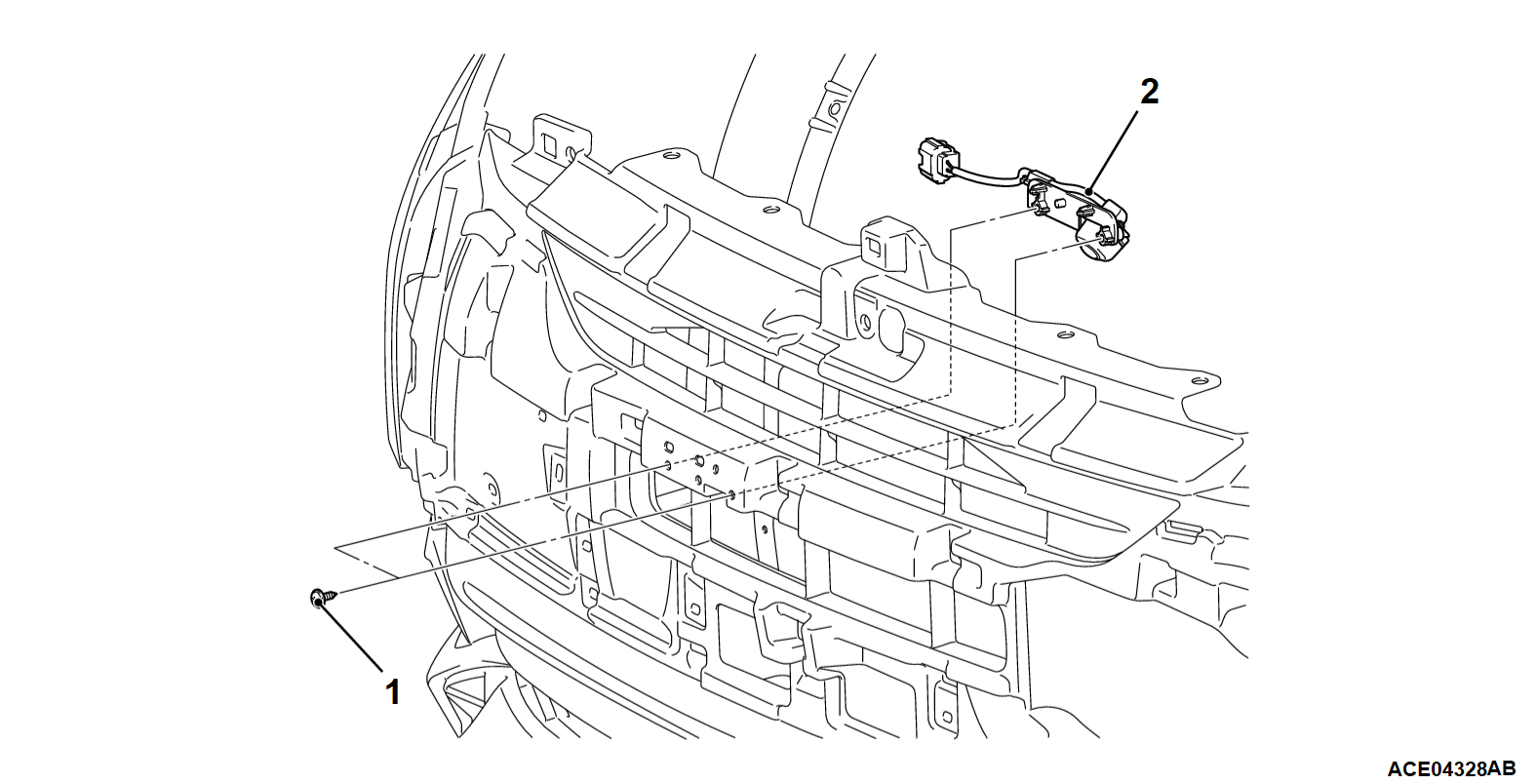

<FRONT VIEW CAMERA>
Pre-removal and Post-installation Operation
  • Front Bumper Assembly Removal and Installation(Refer to GROUP 51 - Front Bumper Assembly ).
  • Front Bumper Center cover Removal and Installation (Refer to GROUP 51 - Front Bumper Assembly ).
Removal steps
1.Screw
2.Front view camera

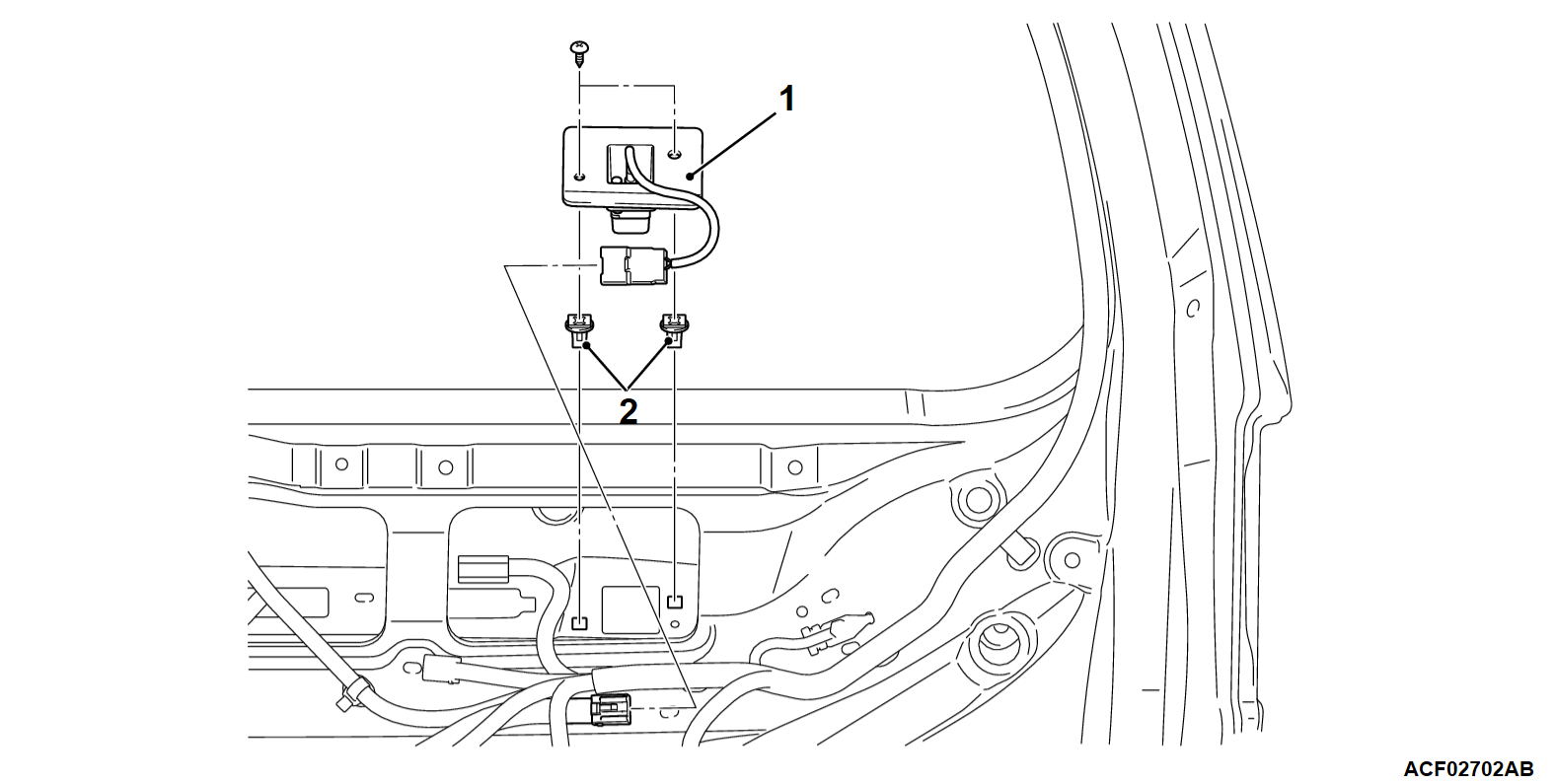

<REAR VIEW CAMERA>
Pre-removal and Post-installation Operation
Liftgate Trim Removal and Installation (Refer to GROUP 52A - Liftgate Trim ).
Removal steps
1.Rear view camera
2.Grommet
