REMOVAL AND INSTALLATION


Pre-removal Operation
  • Radiator Grill Removal (Refer to .)
  • Front Bumper Molding Removal (Refer to .)
  • Engine Room Under Cover Front A Removal (Refer to .)
  • Front Wiring Harness and Front Bumper Wiring Harness Combination
Post-installation Operation
  • Front Wring Harness and Front Bumper Wring Harness Combination
  • Engine Room Under Cover Front A Installation (Refer to .)
  • Front Bumper Molding Installation (Refer to .)
  • Radiator Grill Installation (Refer to .)
  • Front Fog Light Aiming Adjustment (Refer to GROUP 54A, Fog Light - On-vehicle Service ).

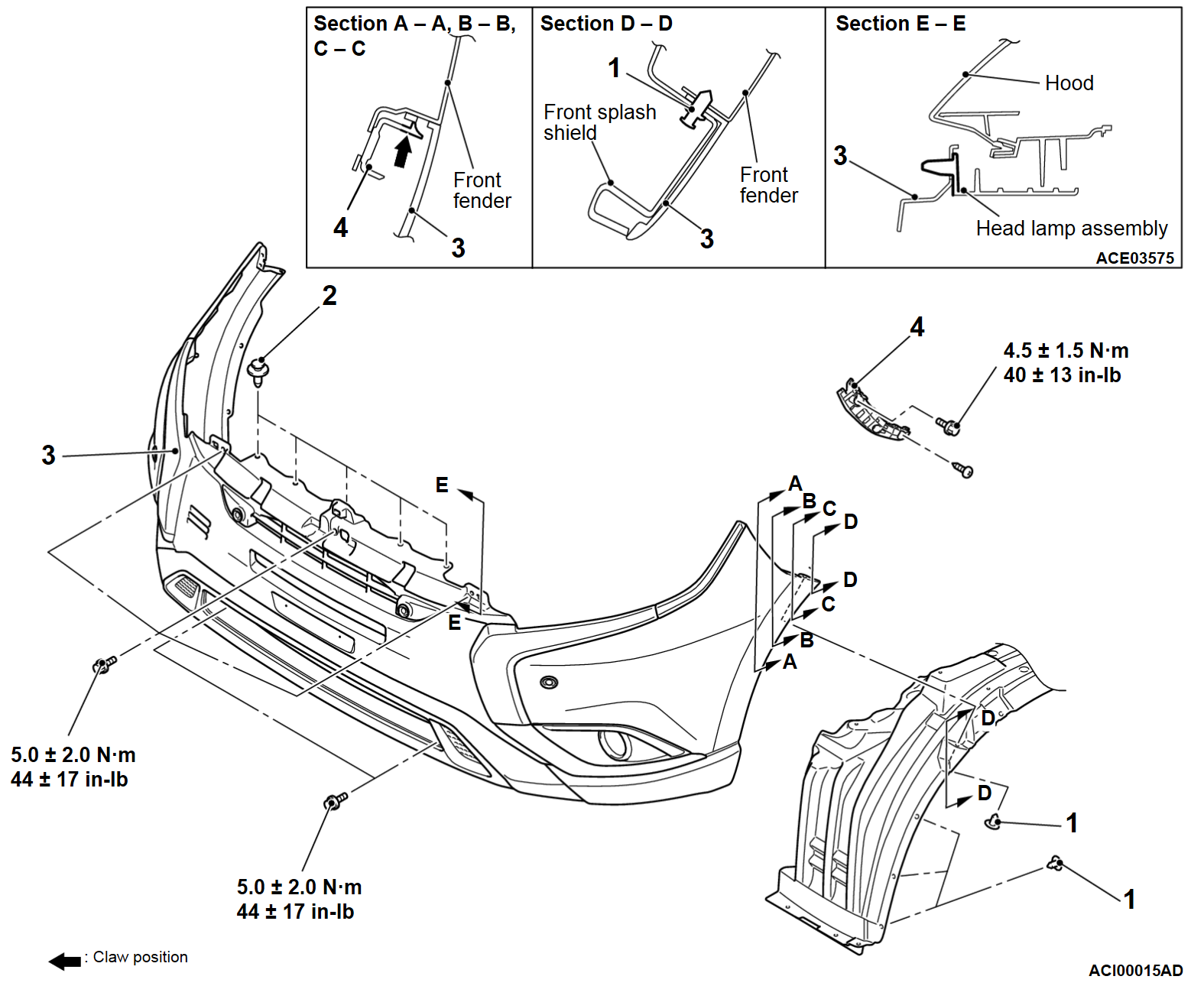

Removal steps
1.Splash shield mounting clips
2.Front bumper assembly mounting clips
>>A<<3.Front bumper assembly
4.Front bumper side bracket


INSTALLATION SERVICE POINT


>>A<< FRONT BUMPER ASSEMBLY INSTALLATION <VEHICLES WITH ADAPTIVE CRUISE CONTROL SYSTEM>

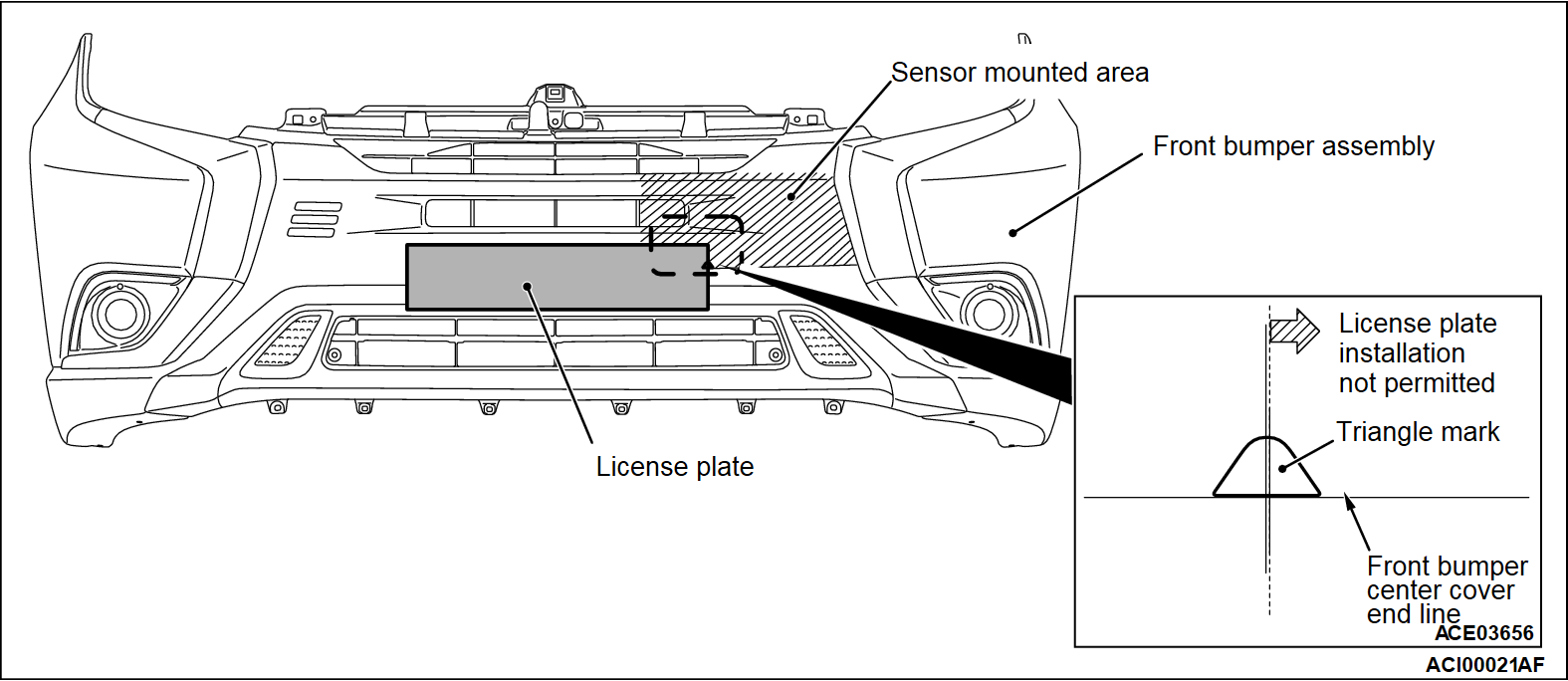

cautionPosition the license plate inside the top of the triangle mark shown so that the plate does not cover the sensor mounted area (shaded area as shown).

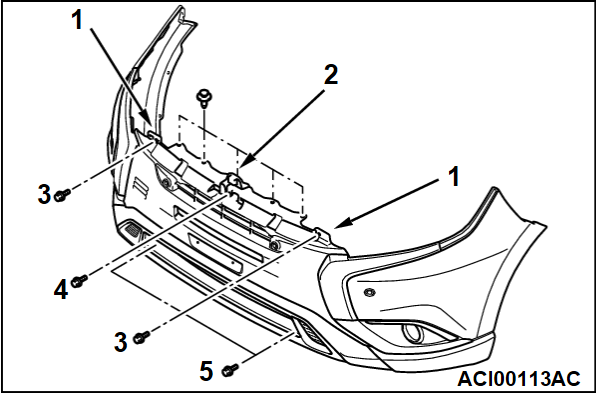

Install the clips and bolts in the order shown.
