DTC B210D: Battery voltage low
DTC B210E: Battery voltage high


cautionIf DTC B210D, B210E is stored in the occupant classification-ECU, always diagnose the CAN main bus lines.


TROUBLE JUDGMENT
The occupant classification-ECU stores DTC B210D if the power supply fuse voltage decreases to the specified value or less, and stores DTC B210E if the power supply fuse voltage increases to the specified value or more.


TECHNICAL DESCRIPTION (COMMENT)
The power supply fuse or the occupant classification-ECU may have a problem.


TROUBLESHOOTING HINTS
  • The power supply fuse may be defective.
  • The occupant classification-ECU may be defective.
  • The battery may be defective.
  • The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector


DIAGNOSIS
STEP 1. Measure the voltage at the occupant classification-ECU connector.
(1) Disconnect the occupant classification-ECU connector.
(2) Turn the ignition switch to the "ON" position.

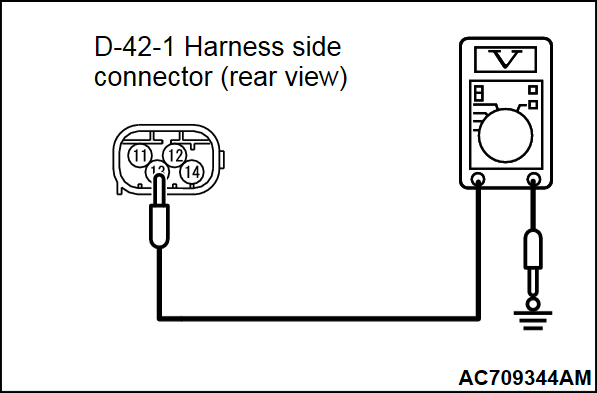

(3) Measure the voltage between the occupant classification-ECU connector harness side connector terminal No. 13 and the body ground.
  • The voltage should measure 12 volts (battery positive voltage).
Is the measured voltage approximately 12 volts (battery positive voltage)?
Go to Step 7.
Go to Step 2.

STEP 2. Power supply fuse No.21 check.
Is the fuse in good condition?
Go to Step 4.
Go to Step 3.

STEP 3. Check of short to power supply, short to ground, and open circuit in BTT line between junction block connector and the occupant classification-ECU connector.
Is the check result normal?
Replace the power supply fuse.
Repair the wiring harness. And then replace the power supply fuse.

STEP 4. Battery check.
Refer to GROUP 54A, Battery Test .
Is the check result normal?
Go to Step 5.
Charge (B210D only) or replace the battery.

STEP 5. Using scan tool (M.U.T.-III), diagnose the CAN bus line.
cautionTo prevent damage to scan tool (M.U.T.-III), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (M.U.T.-III).
(1) Connect scan tool (M.U.T.-III). Refer to "How to connect the scan tool ."
(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Is the CAN bus line found to be normal?
Go to Step 6.
Repair the CAN bus line (Refer to GROUP 54C, Diagnosis ).

STEP 6. Recheck for diagnostic trouble code.
Check again if the DTC is stored.
(1) Erase the DTC.
(2) Turn the ignition switch to "ON" position.
(3) Check if the DTC is stored.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Is the DTC stored?
Go to Step 7.
There is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

STEP 7. Recheck for diagnostic trouble code.
Check again if the DTC is stored.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is stored.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Is DTC B210D or B210E stored?
Replace the front seat cushion cover and pad assembly (Refer to GROUP 52A, Front Seat Assembly ).
There is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).
