DISASSEMBLY AND REASSEMBLY
caution
  • Always replace the front seat cushion assembly together with the occupant classification-ECU.<Passenger’s side>
  • When replacing the front seat cushion assembly, be careful not to apply static electricity to it. <Passenger’s side>
  • The front seat cushion assembly must not be damped with any liquid or steam. <Passenger’s side>


<DRIVER’S SEAT (MANUAL SEAT)>

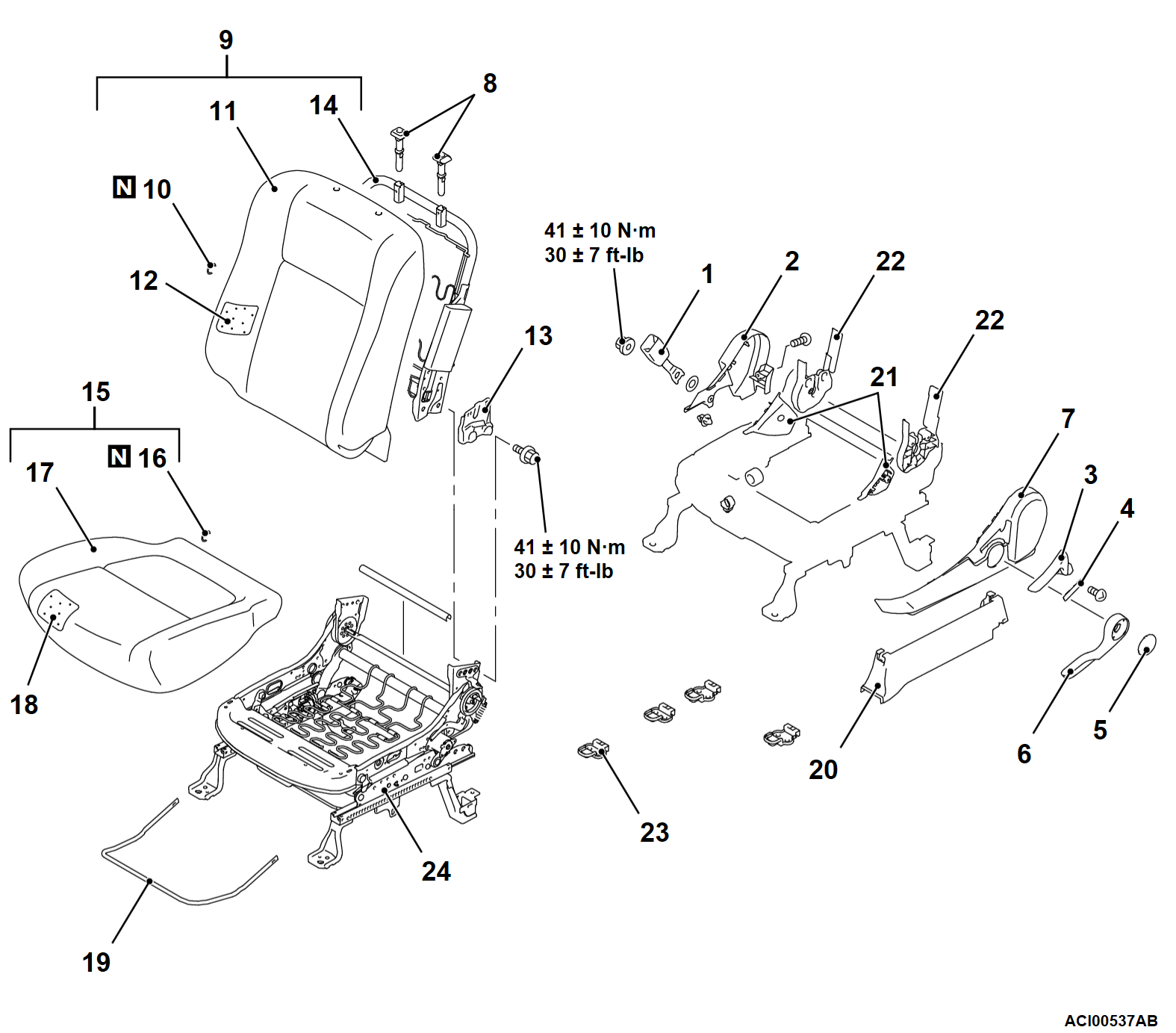

Disassembly steps
1.Seat belt inner
2.Hinge cover
3.Reclining adjuster lever
4.Reclining adjuster lever cap
5.Height adjuster lever cap
6.Height adjuster lever
7.Side shield cover
<<A>>8.Headrestraint guide
9.Seatback assembly
10.Hog ring
11.Seatback cover
12.Seatback pad
13. Seatback frame cover
<<B>>>>A<<14.Seatback frame assembly
15.Seat cushion assembly
16.Hog ring
17.Seat cushion cover
18.Seat cushion pad
19.Slide adjuster lever knob
20.Slide adjuster side cover
21.Hinge cover inner
22.Reclining adjuster cover
23.Front seat hook
24.Seat cushion frame assembly

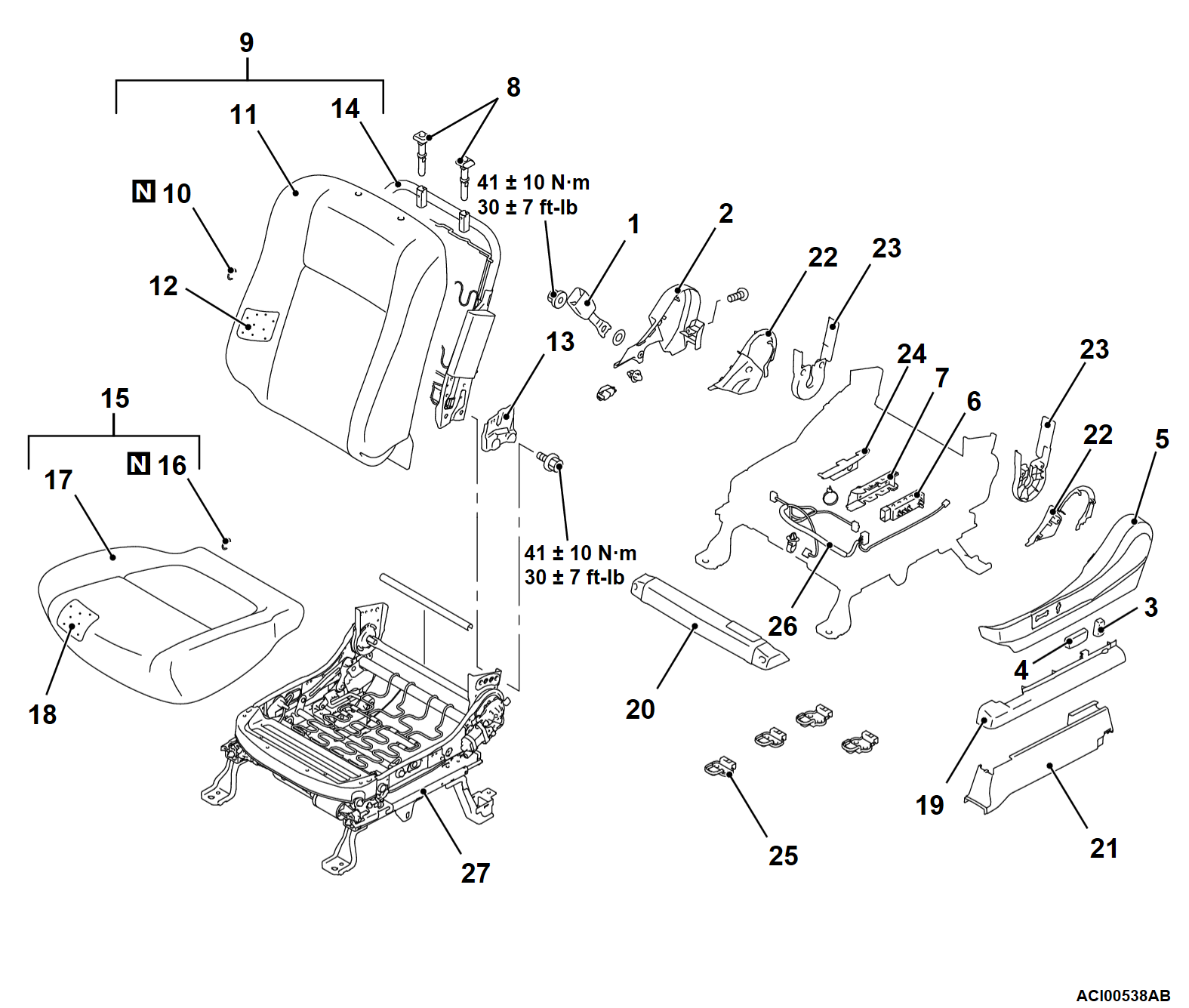

<DRIVER’S SEAT (POWER SEAT)>
Disassembly steps
1.Seat belt inner
2.Hinge cover
3.Reclining adjuster lever knob
4.Slide adjuster lever knob
5.Side shield cover
6.Front power seat switch
7.Front power seat switch garnish
<<A>>8.Headrestraint guide
9.Seatback assembly
10.Hog ring
11.Seatback cover
12.Seatback pad
13. Seatback frame cover
<<B>>>>A<<14.Seatback frame assembly
15.Seat cushion assembly
16.Hog ring
17.Seat cushion cover
18.Seat cushion pad
19.Slide adjuster side cover
20.Front power seat motor cover
21.Slide adjuster side cover
22.Side shield cover inner
23.Reclining adjuster cover
24.Front seat hook
25.Front seat hook
26.Power seat wiring harness
27.Seat cushion frame assembly

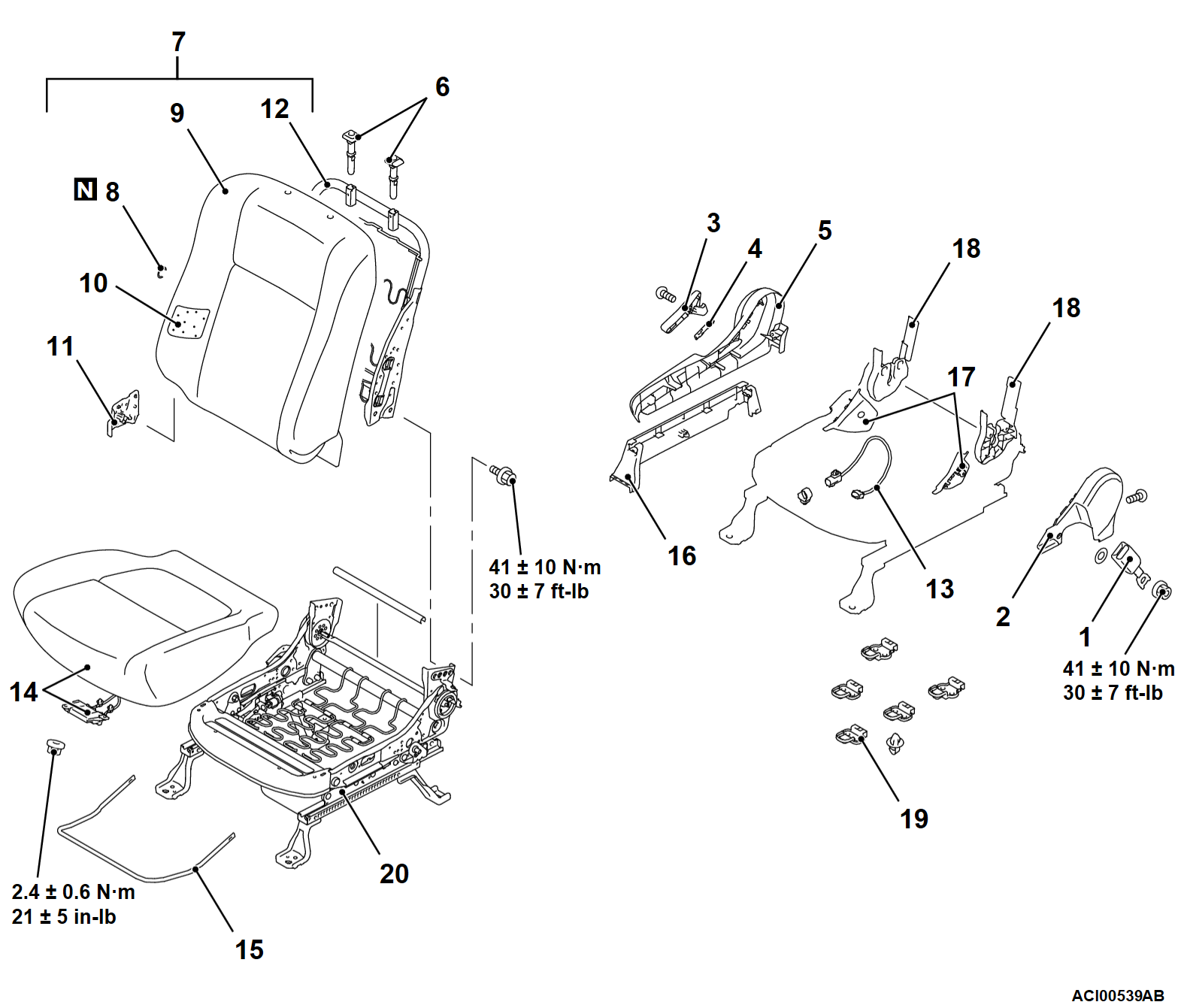

<PASSENGER’S SEAT (MANUAL SEAT)>
Disassembly steps
1.Seat belt inner
2.Hinge cover
3.Reclining adjuster lever
4.Reclining adjuster lever cap
5.Side shield cover
<<A>>6.Headrestraint guide
7.Seatback assembly
8.Hog ring
9.Seatback cover
10.Seatback pad
11. Seatback frame cover
<<B>>>>A<<12.Seatback frame assembly
13.Seat control unit wiring harness
<<C>>14.Seat cushion assembly
15.Slide adjuster lever knob
16.Slide adjuster side cover
17.Hinge cover inner
18.Reclining adjuster cover
19.Front seat hook
20.Seat cushion frame assembly

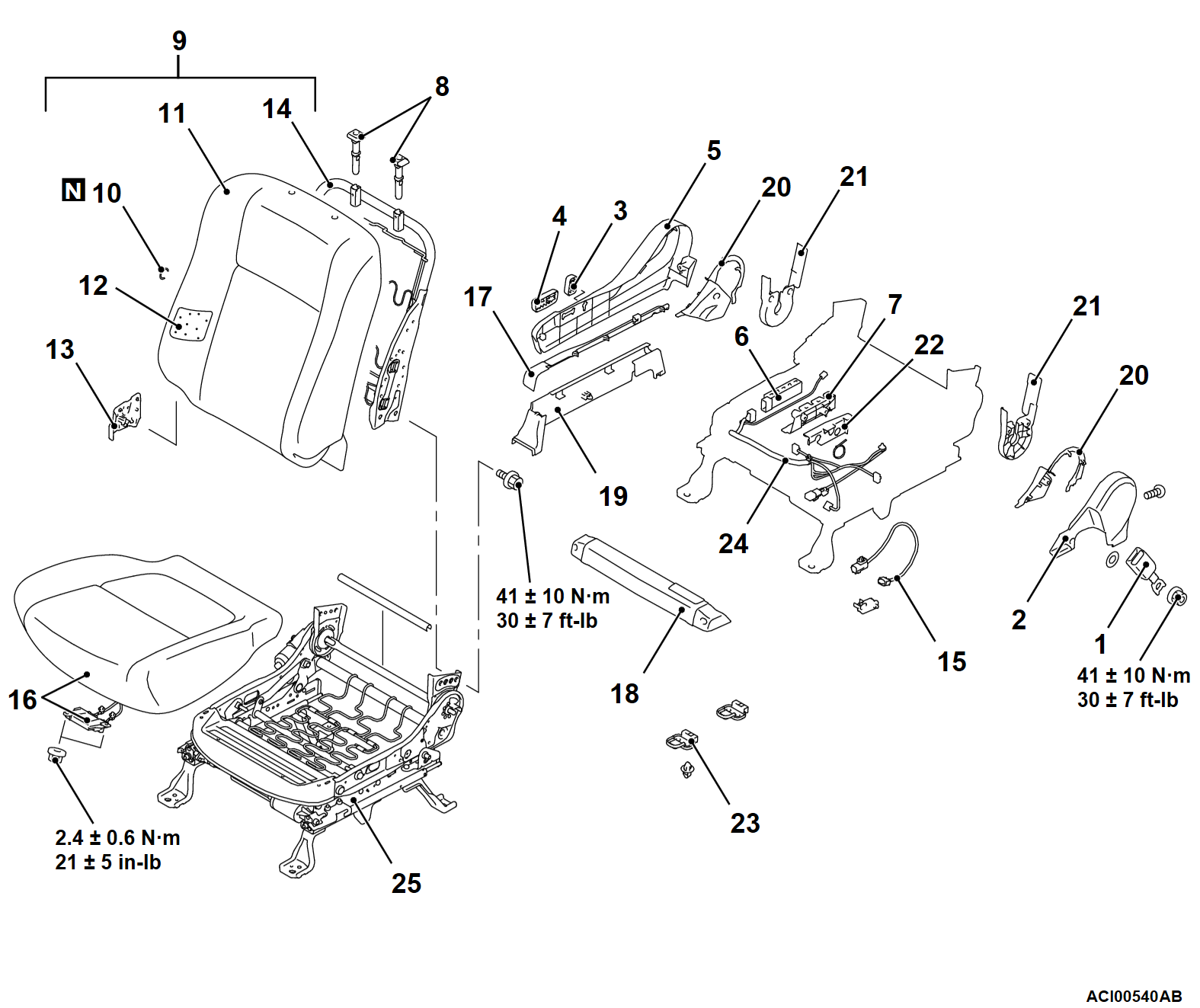

<PASSENGER’S SEAT (POWER SEAT)>
Disassembly steps
1.Seat belt inner
2.Hinge cover
3.Reclining adjuster lever knob
4.Slide adjuster lever knob
5.Side shield cover
6.Front power seat switch
7.Front power seat switch garnish
<<A>>8.Headrestraint guide
9.Seatback assembly
10.Hog ring
11.Seatback cover
12.Seatback pad
13. Seatback frame cover
<<B>>>>A<<14.Seatback frame assembly
15.Seat control unit wiring harness
<<C>>16.Seat cushion assembly
17.Slide adjuster side cover
18.Front power seat motor cover
19.Slide adjuster side cover
20.Side shield cover inner
21.Reclining adjuster cover
22.Front seat hook
23.Front seat hook
24.Power seat wiring harness
25.Seat cushion frame assembly


DISASSEMBLY SERVICE POINTS

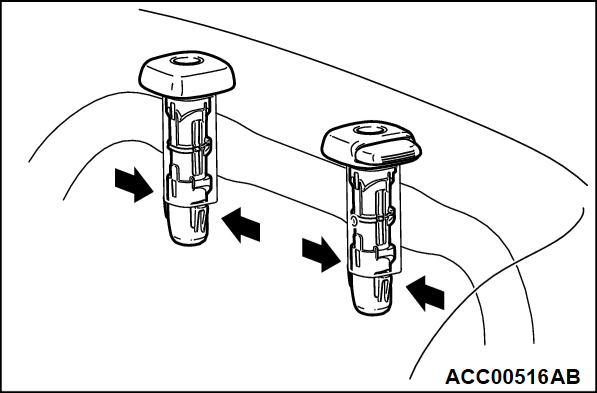

<<A>> HEADRESTRAINT GUIDE REMOVAL
Remove the headrest guides while pushing the on both sides inward.




<<B>> SEAT BACK FRAME ASSEMBLY REMOVAL
For the vehicles with side-airbag, do not remove the side-airbag module from the frame.



<<C>> SEAT CUSHION ASSEMBLY REMOVAL
Always replace the seat cushion cover together with the seat cushion pad, the occupant classification sensor and the occupant classification-ECU, on which threshold values have been stored at the exchange part delivery.



REASSEMBLY SERVICE POINT


>>A<< SEATBACK FRAME ASSEMBLY INSTALLATION

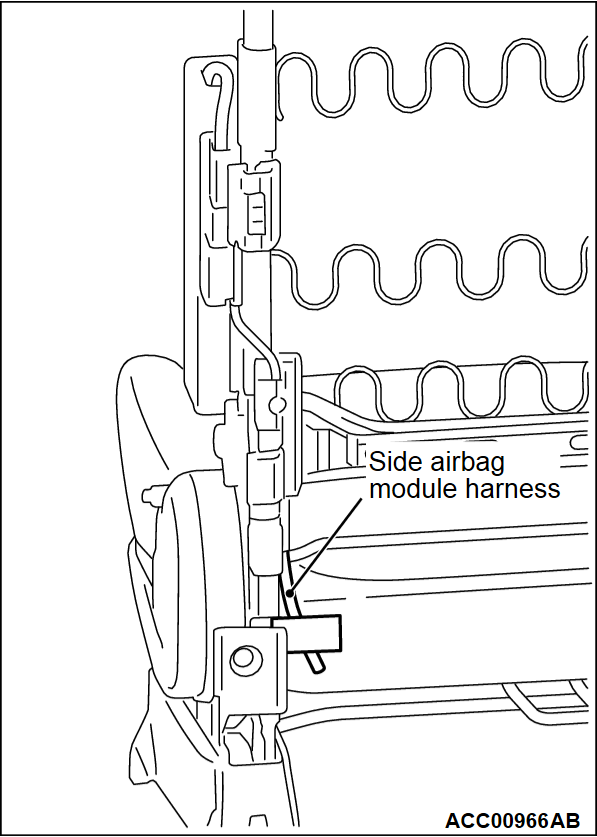

To route the side airbag module wiring harness under the seat cushion, guide it through the fastener on the rear end of the seat cushion cover.

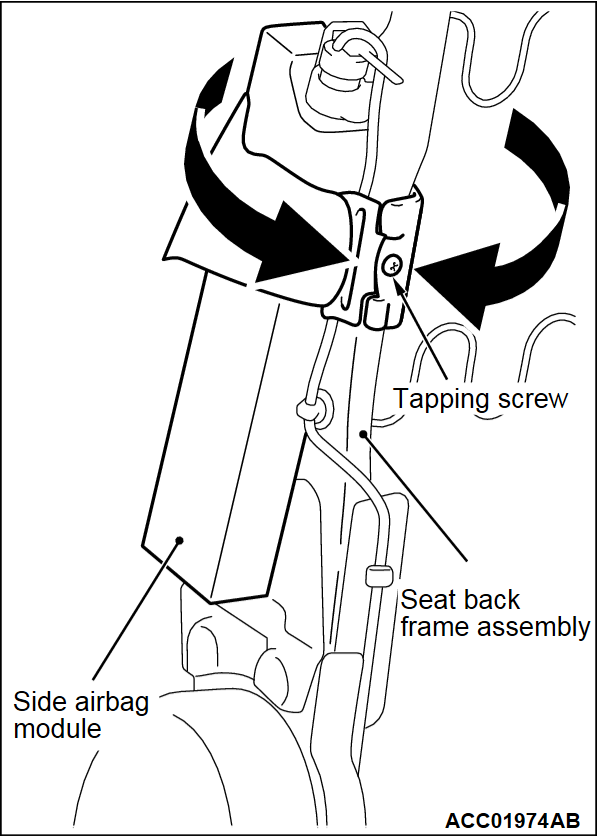

When the side airbag module is fitted in the seatback frame assembly, wrap reinforcement fabric of the seatback cover around the side airbag module and hook the assembly to the seatback frame assembly as shown, and then tighten the tapping screw securely.
