REMOVAL AND INSTALLATION


Pre-removal and Post-installation Operation
  • Rear Wiper Motor Bracket Removal and Installation (Refer to .)
  • Liftgate Lock Release Handle Removal and Installation (Refer to GROUP 42A, Liftgate Handle and Latch <Vehicles without power liftgate> or <Vehicles with power liftgate>.)
  • Tail light assembly Removal and Installation (Refer to GROUP 54A, Tail Light .)

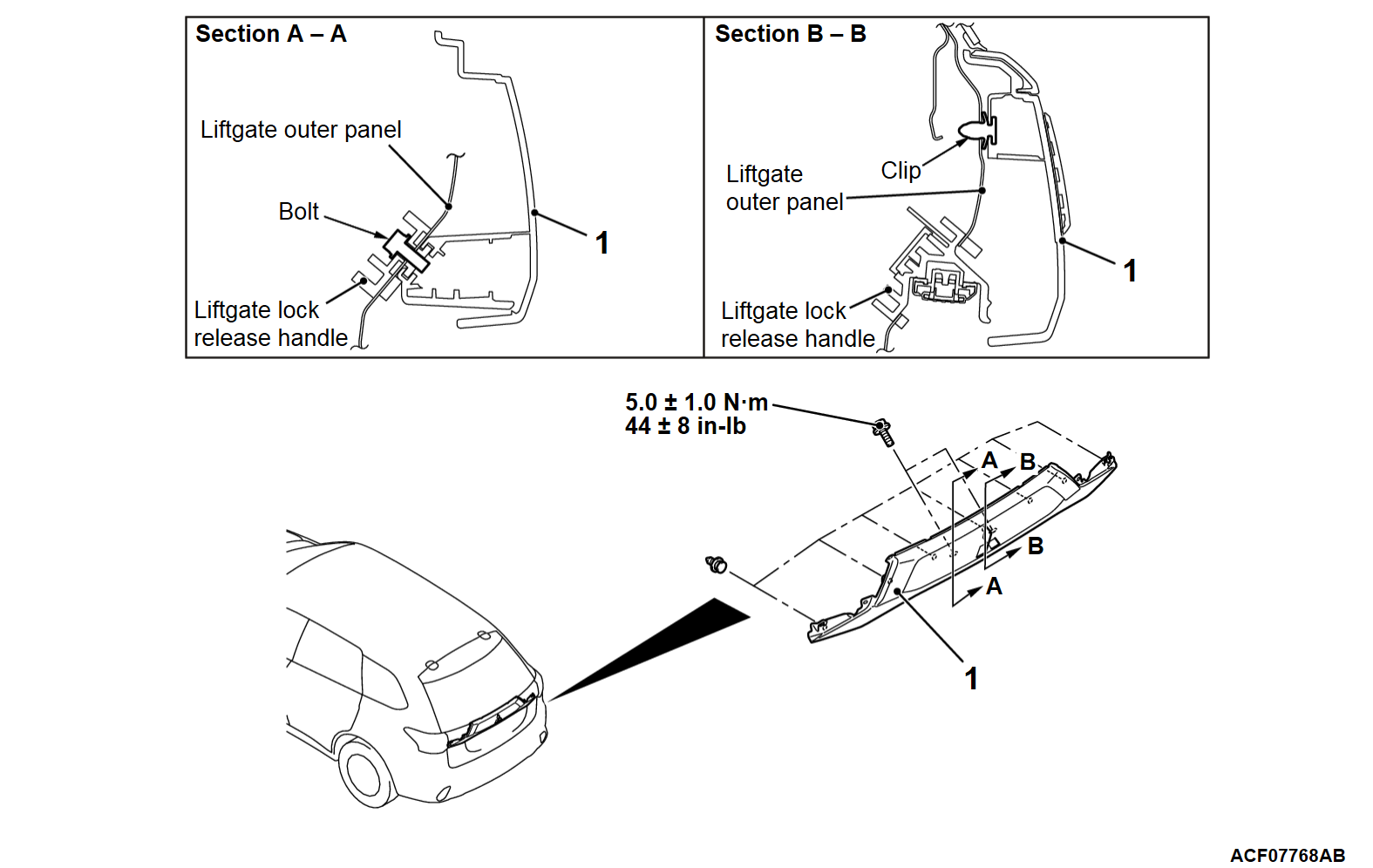

Removal step
>>A<<1.Liftgate garnish


INSTALLATION SERVICE POINT


>>A<< LIFTGATE GARNISH INSTALLATION

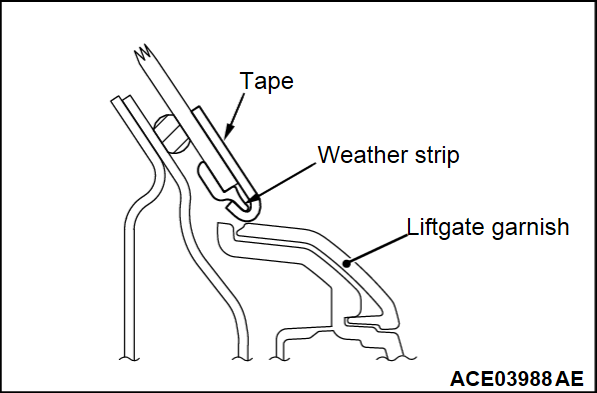

cautionWhen installing the liftgate garnish, roll up the weatherstrip and secure it by a tape as shown to avoid trapping it.
