REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
Liftgate Trim Removal and Installation (Refer to GROUP 52A- Liftgate Trim
).

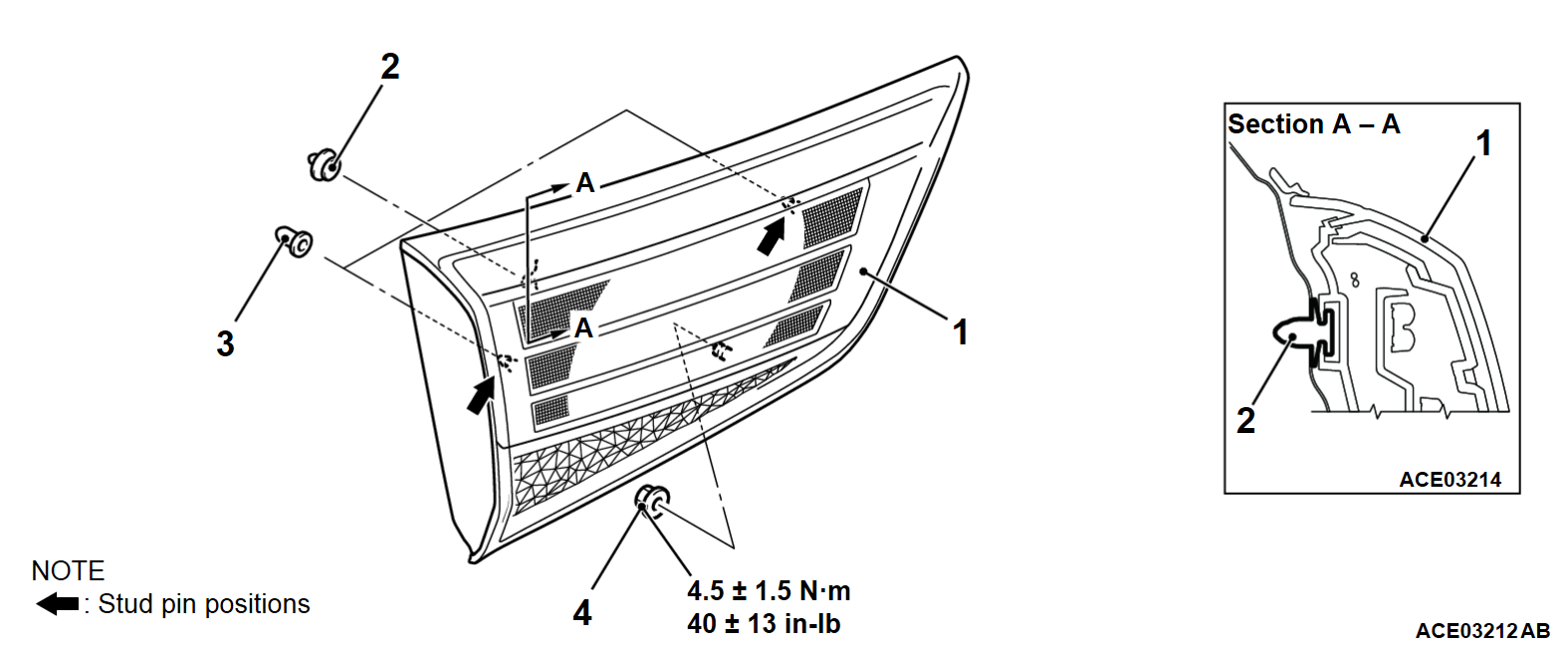

Removal Steps
<<A>>
>>A<<
1.
Taillight assembly
2.
Clip
3.
Grommet
4.
Nut
REMOVAL SERVICE POINT

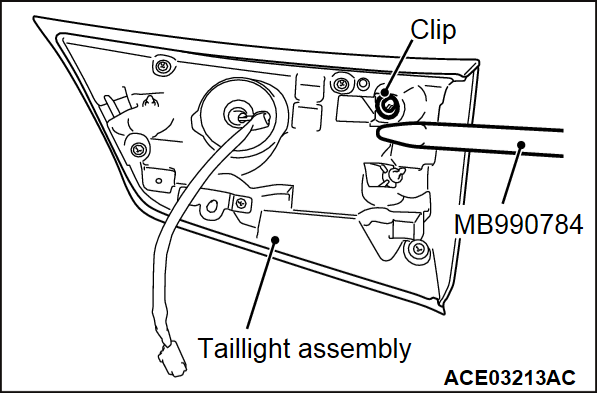

<<A>> TAILLIGHT ASSEMBLY REMOVAL
Disengage the clip by inserting the special tool Ornament remover (MB990784) as shown. Then remove the taillight assembly.
INSTALLATION SERVICE POINT

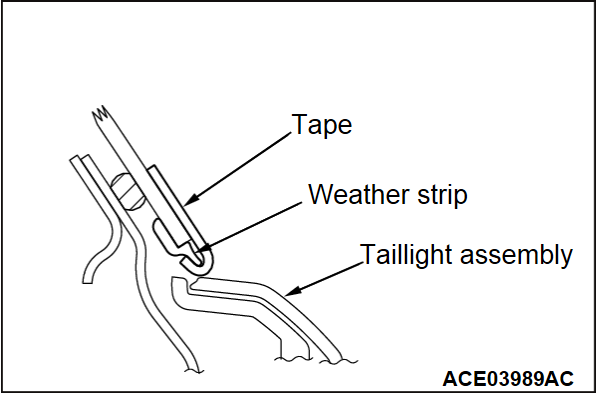

>>A<< TAILLIGHT ASSEMBLY INSTALLATION
caution
When installing the taillight assembly, roll up the weatherstrip and secure it by a tape as shown to avoid trapping it.
