REMOVAL AND INSTALLATION


Post-installation operation

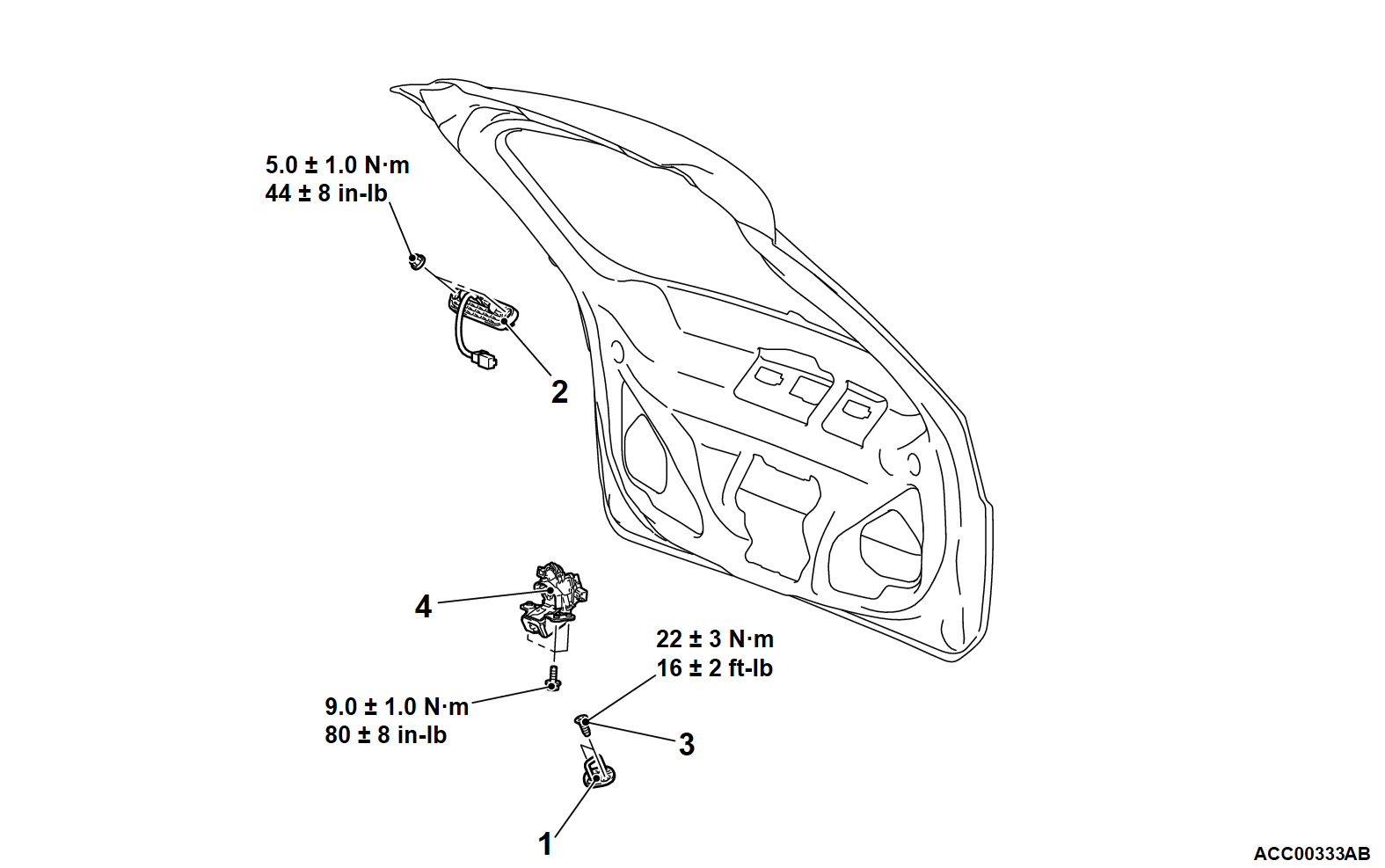

  • Liftgate alignment (Refer to .)
Striker removal steps
Rear end trim (Refer to GROUP 52A - Interior Trims .)
>>B<<1.Striker
Liftgate lock release handle removal steps
Liftgate trim (Refer to GROUP 52A - Liftgate Trims .)
Rear wiper motor assembly (Refer to GROUP 51 - Rear Wiper and Washer .)
2.Liftgate lock release handle
Liftgate latch removal steps
Liftgate trim (Refer to GROUP 52A - Liftgate Trims .)
3.Ground bolt
>>A<<4.Liftgate latch assembly


INSTALLATION SERVICE POINTS

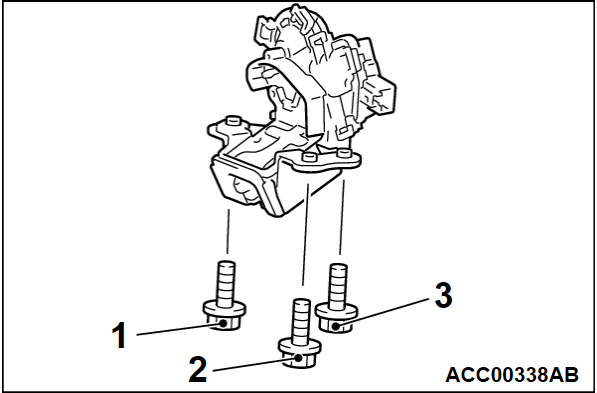

>>A<< LIFTGATE LATCH ASSEMBLY INSTALLATION
Install the Liftgate latch assembly mounting bolts in the numerical order.

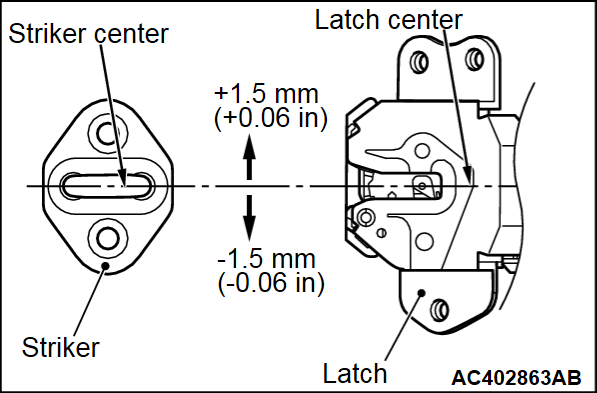

>>B<< STRIKER INSTALLATION
Install the striker so that the striker center does not deviate more than ±1.5 mm(0.06 in) from the latch center.
