REMOVAL AND INSTALLATION


Pre-removal and post-installation operation
  • Front/Rear Scuff Plate, Cowl Side Trim, Quarter Trim Removal and Installation (Refer to GROUP 52A, Interior Trim )
  • Liftgate Trim Removal and Installation (Refer to GROUP 52A, Liftgate Trim )
  • Washer Tank Removal and Installation (Refer to .)
  • Washer Motor Removal and Installation (Refer to .)

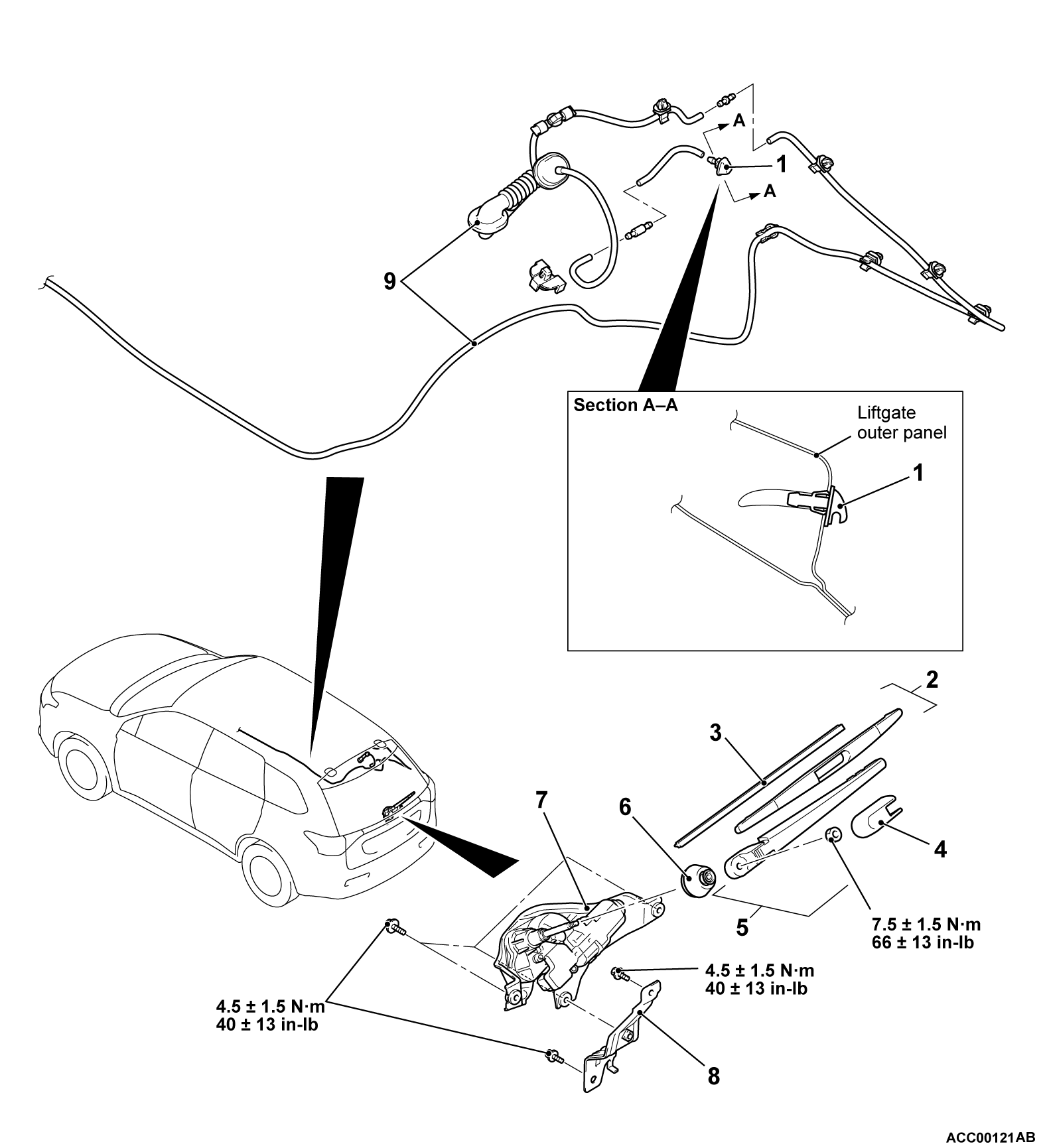

Removal steps
1.Rear washer nozzle assembly
2.Rear wiper blade assembly
>>A<<3.Rear wiper blade
4.Cover
>>B<<5.Rear wiper arm assembly
6.Grommet
7.Rear wiper motor assembly
8.Rear wiper motor bracket
9.Rear washer hose
noteFor removal and installation of the column switch (wiper and washer switch), refer to GROUP 54A, Column Switch .


INSTALLATION SERVICE POINTS


>>A<< REAR WIPER BLADE INSTALLATION
cautionUse a curved backing like that shown for the backing of a wiper blade to ensure sustained wiper wiping performance.

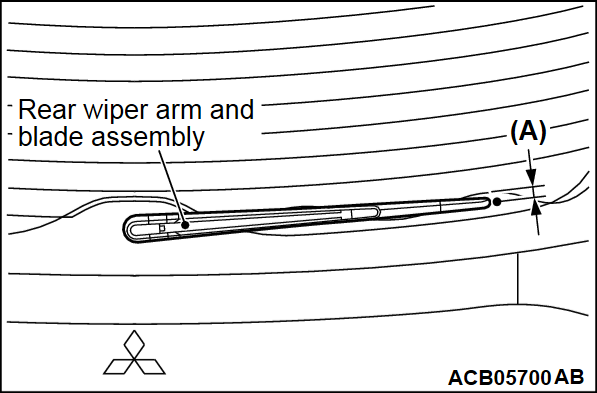

>>B<< REAR WIPER ARM AND BLADE ASSEMBLY INSTALLATION
Assemble the wiper blade so that their edge stops at the specified position.
Standard value:
(A): Φ 2 marking ± 5 mm (0.2 in)
