LIFTGATE ALIGNMENT


ADJUSTMENT OF ENGAGEMENT BETWEEN STRIKER AND LATCH
1. Remove the rear end trim (Refer to GROUP 52A - Interior Trims ).

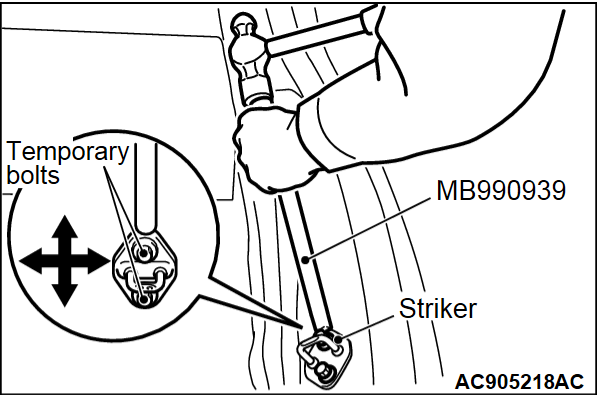

2. Replace the striker mounting screws with temporary bolts, and use the remover bar (special tool: MB990939) and a hammer to tap the temporary bolt to the desired direction.
3. Tighten the striker mounting screws.
Tightening torque: 22 ± 3 N·m(16 ± 2 ft-lb)
4. Install the rear end trim (Refer to GROUP 52A - Interior Trims ).



ADJUSTMENT OF CLEARANCE BETWEEN LIFTGATE AND BODY

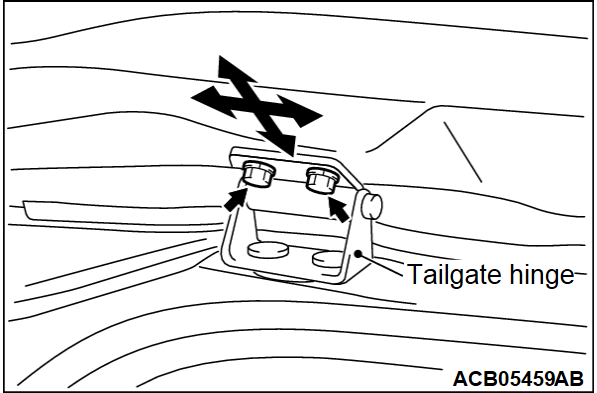

1. Loosen the liftgate hinge mounting bolts to adjust the clearance between the liftgate and body.
2. Tighten the liftgate hinge mounting bolts.
Tightening torque: 12 ± 2 N·m(106 ± 17 in-lb)
