REMOVAL AND INSTALLATION


Pre-removal operation
  • Door trim assembly removal (Refer to GROUP 52A - Door trim .)
  • Waterproof film removal (Refer to .)
Post-installation operation
  • Door window glass adjustment (Refer to .)
  • Waterproof film installation (Refer to .)
  • Door trim assembly installation (Refer to GROUP 52A - Door trim .)
  • Learning procedures of the power window fully closed position <Driver’s side only>(Refer to .)

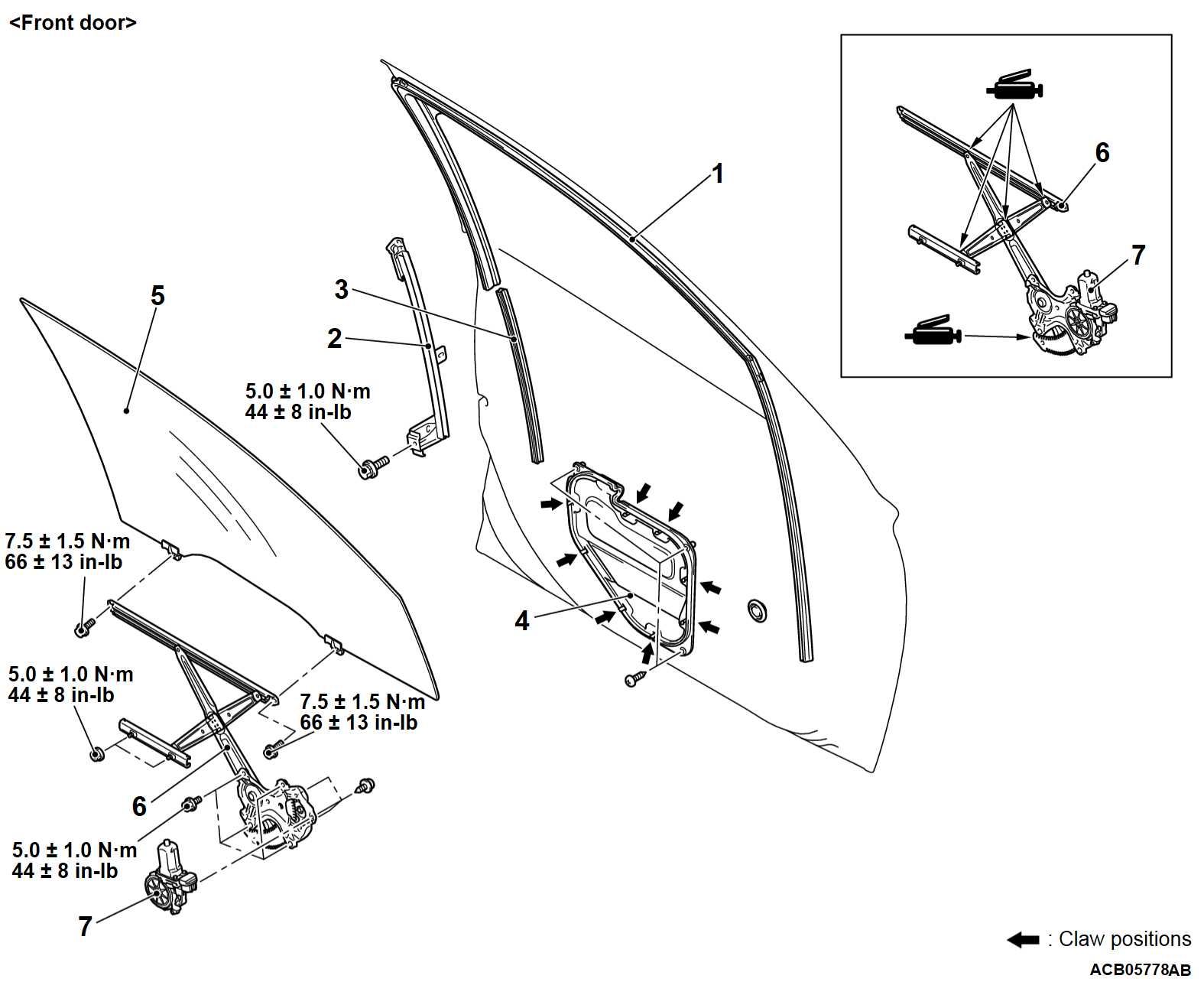

Door window glass assembly removal steps
1.Door window glass runchannel
Door mirror assembly (Refer to GROUP 51 - Door Mirror .)
2.Door window rear lower sash
3.Door window glass runchannel rear
4.Door speaker bracket <Vehicles with audio amplifier>
<<A>>5.Door window glass assembly
Power window regulator removal steps
Front door speaker (Refer to GROUP 54A - Speaker .)
4.Door speaker bracket <Vehicles with audio amplifier>
<<A>>6.Power window regulator assembly
7.Power window regulator motor
noteFor removal and installation of the power window switch, refer to GROUP 52A, Door trim .

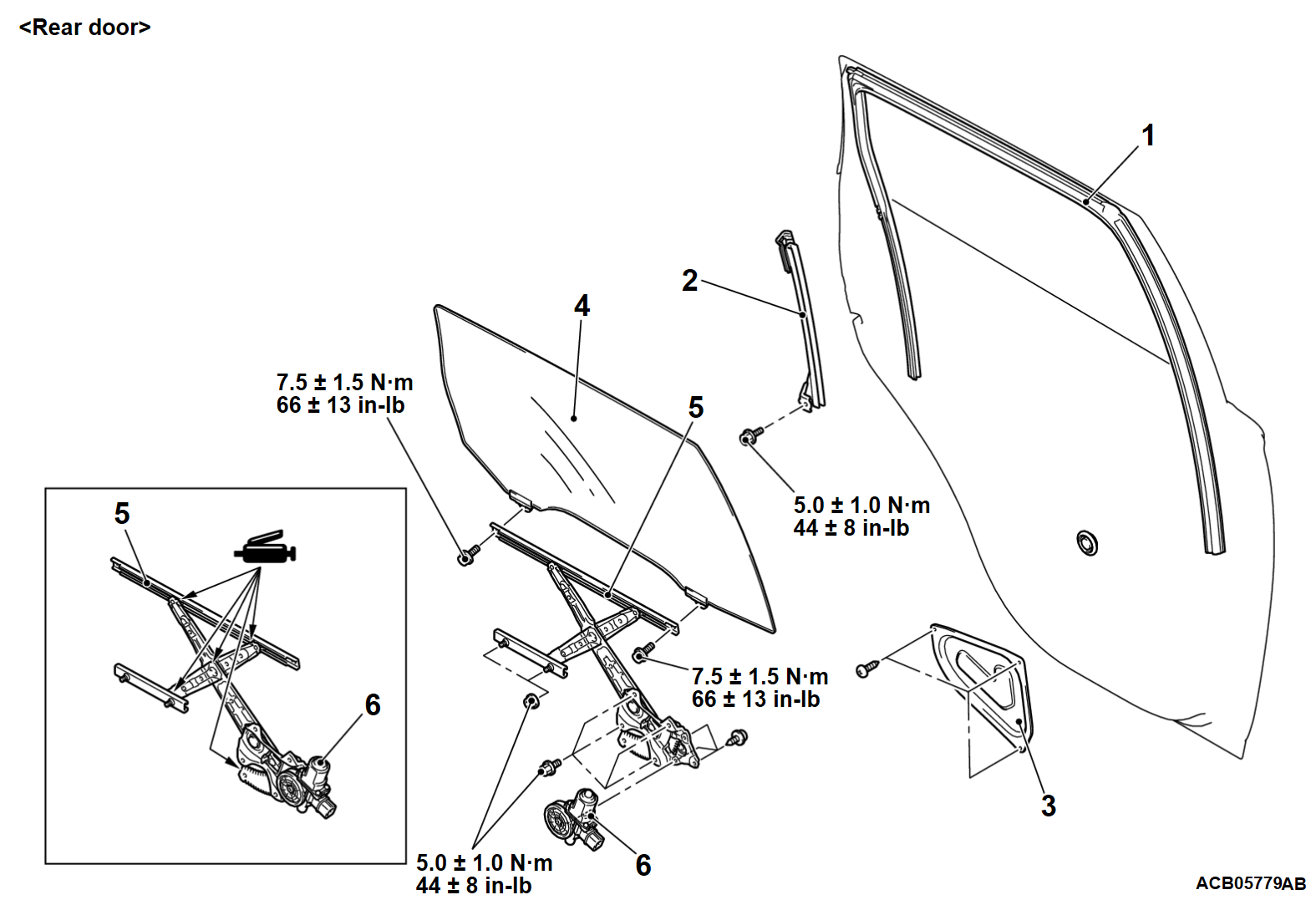

Door window glass assembly removal steps
1.Door window glass runchannel
2.Door window rear lower sash
3.Door speaker cover B <Vehicles with audio amplifier>
<<A>>4.Door window glass assembly
Power window regulator removal steps
Rear door speaker (Refer to GROUP 54A - Speaker .)
3.Door speaker cover B <Vehicles with audio amplifier>
<<A>>5.Power window regulator assembly
6.Power window regulator motor
noteFor removal and installation of the power window switch, refer to GROUP 52A, Door trim .


REMOVAL SERVICE POINT


<<A>> DOOR WINDOW GLASS ASSEMBLY/ POWER WINDOW REGULATOR ASSEMBLY REMOVAL

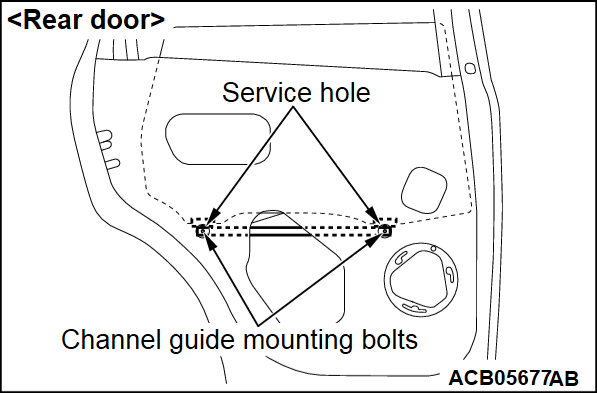

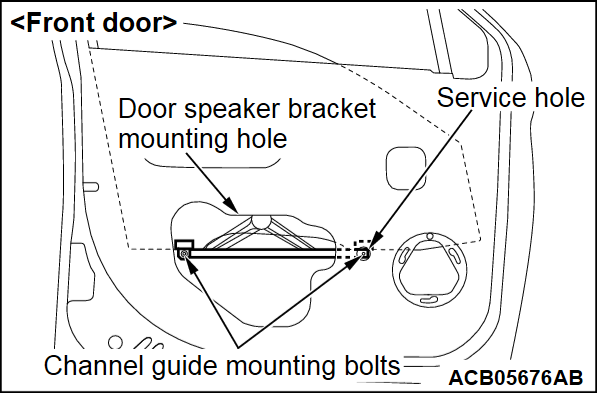

1. Align the channel guide mounting bolt on the door window glass with the adjusting hole to remove it.
cautionIf any film or the like is applied to a door window glass, use the window glass holder (Special tool: MB990480) at the outside of the door glass to prevent the film from peeling off.

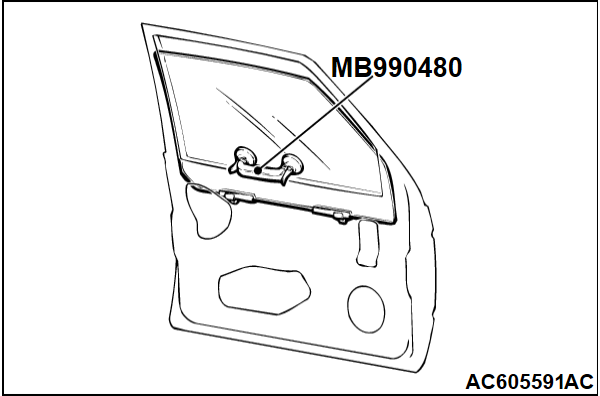

2. Lift the door window glass, and attach the special tool MB990480 to the glass as shown to prevent the glass from falling.
3. Slant the door window glass and remove it upward from the inside of the door <Rear door>.
4. Remove the power window regulator assembly.
