REMOVAL AND INSTALLATION


FRONT DOOR SPEAKER, REAR DOOR SPEAKER
Post-installation Operation
  • Learning of the power window fully closed position (Refer to GROUP 42A - Door, On-vehicle Service, Learning Procedures of Power Window Fully Closed Position ).

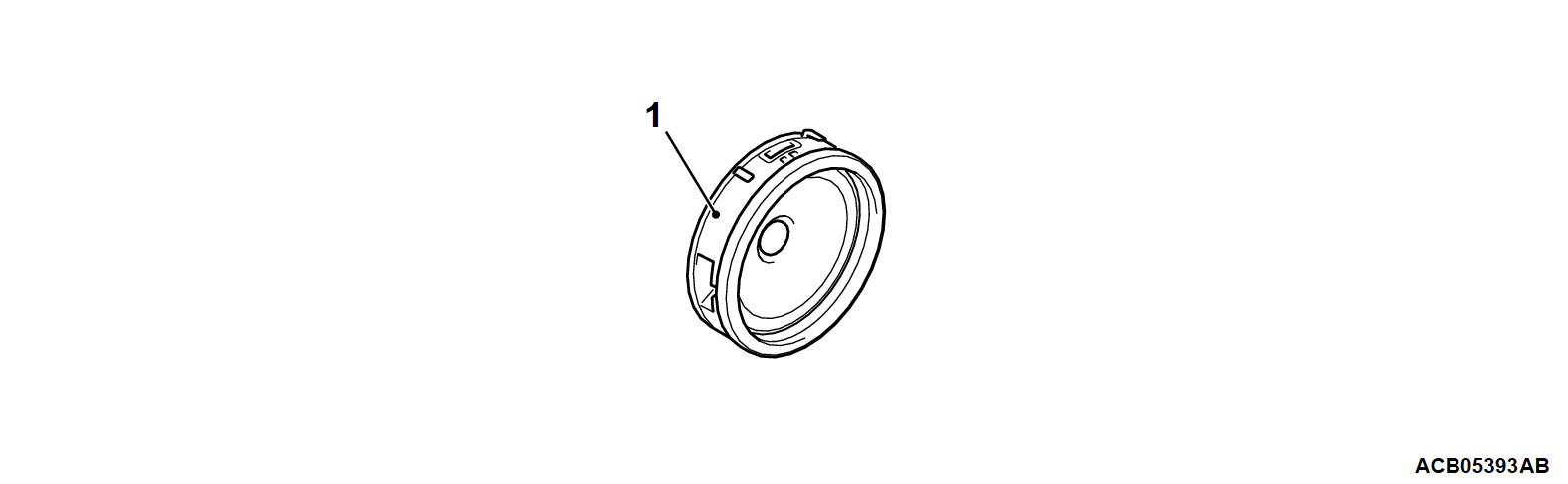

Front door speaker removal step
Front door trim (Refer to GROUP 52A - Door Trim ).
<<A>>1.Front door speaker
Rear door speaker removal step
Rear door trim (Refer to GROUP 52A - Door Trim ).
<<A>>1.Rear door speaker

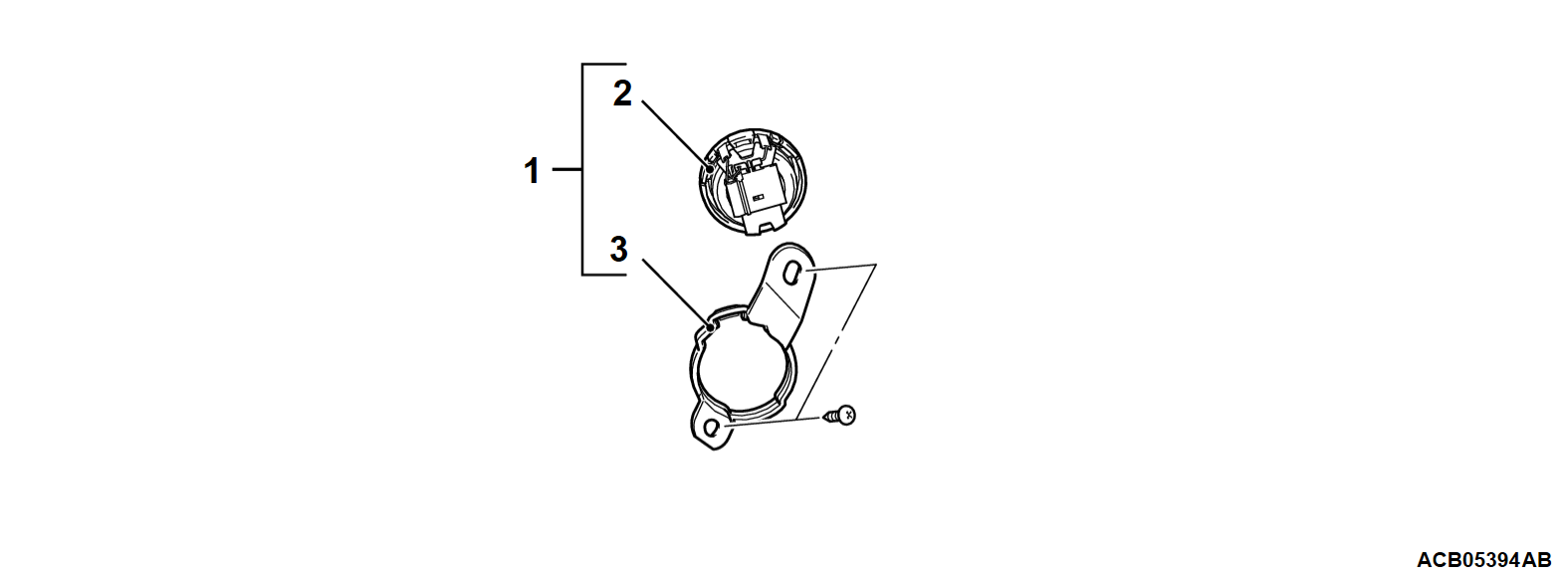

TWEETER
Pre-removal and Post-installation Operation
  • Front door sash trim (Refer to GROUP 52A - Door Trim ).
Removal steps
1.Tweeter assembly
2.Tweeter
3.Bracket

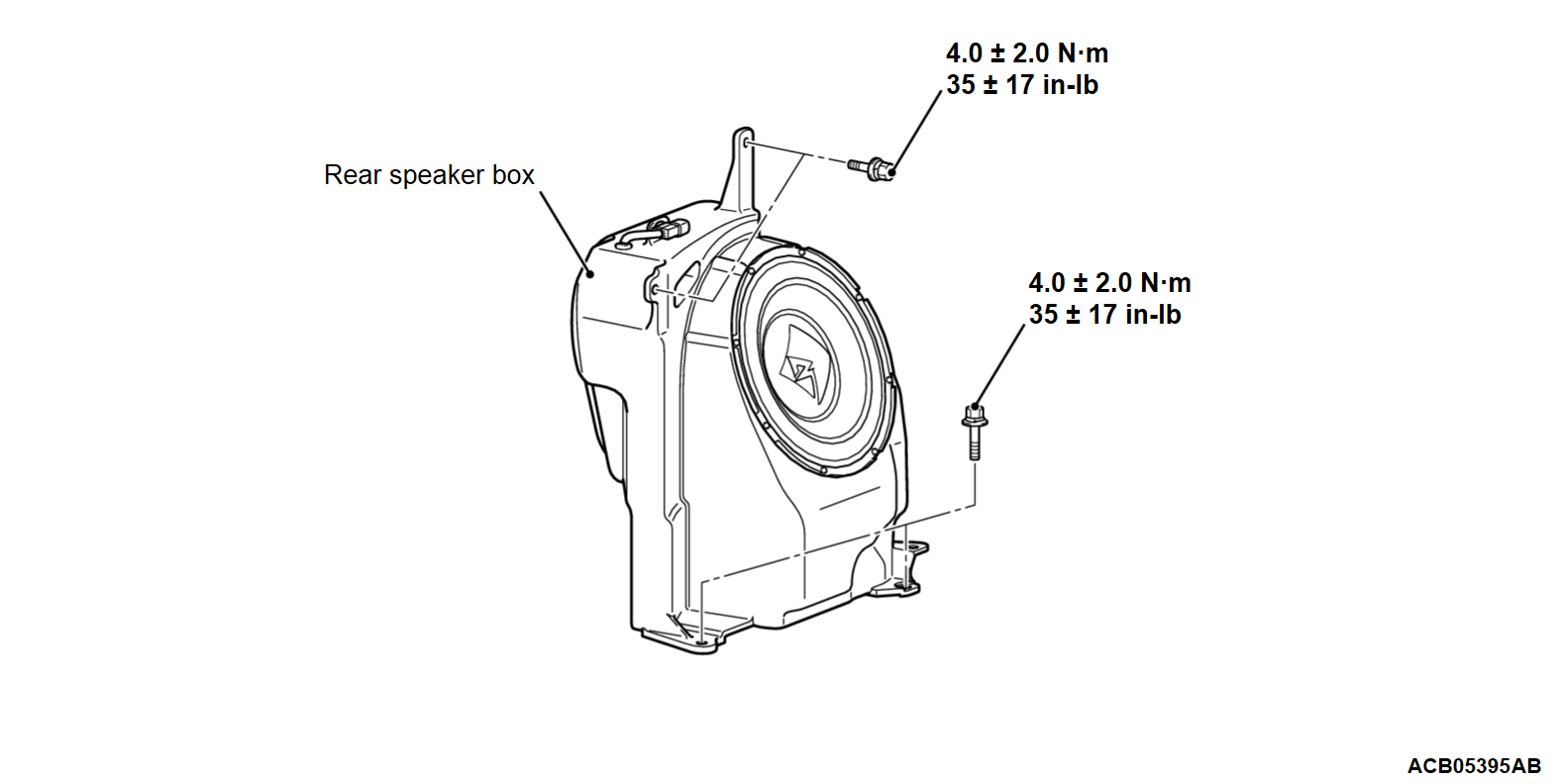

SUBWOOFER
Pre-removal and Post-installation Operation
  • Quarter trim lower (Refer to GROUP 52A - Trim ).



REMOVAL SERVICE POINT

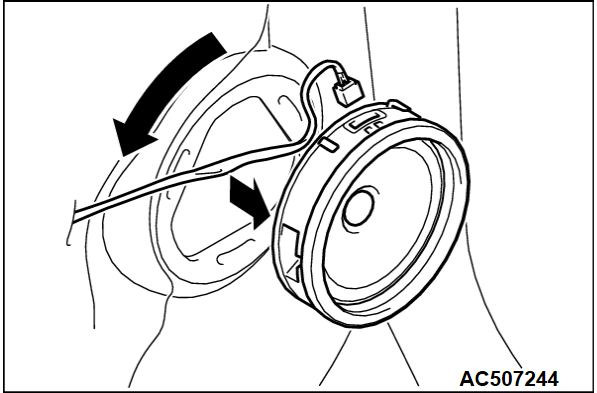

<<A>> DOOR SPEAKER REMOVAL
Disconnect the connector, and remove by twisting as shown in the figure.
