REMOVAL AND INSTALLATION


Pre-removal and post-installation operation
  • Front wheel arch molding removal and installation (Refer to GROUP 51 - Overfender .)
  • Splash shield front removal and installation (Refer to .)
  • Headlight assembly removal and installation (Refer to GROUP 54A - Headlight .)
  • Front deck garnish removal and installation (Refer to GROUP 51 - Windshield Wiper .)
  • Side air dam removal and installation (Refer to GROUP 51 - Side Air Dams .)

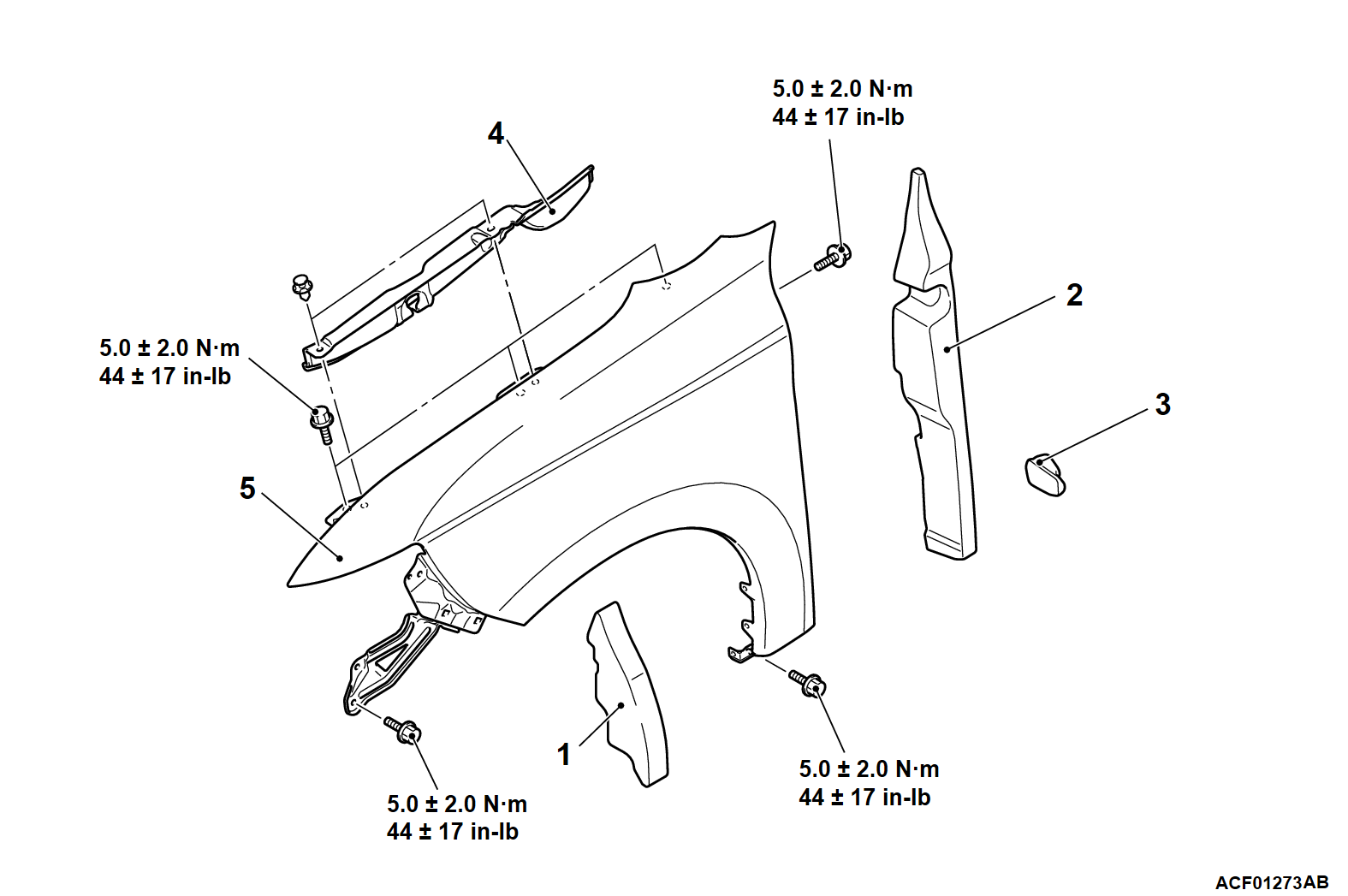

Removal steps
1.Front fender pad A
2.Front fender pad B
3.Front fender pad C
4.Front fender insulator
5.Fender
