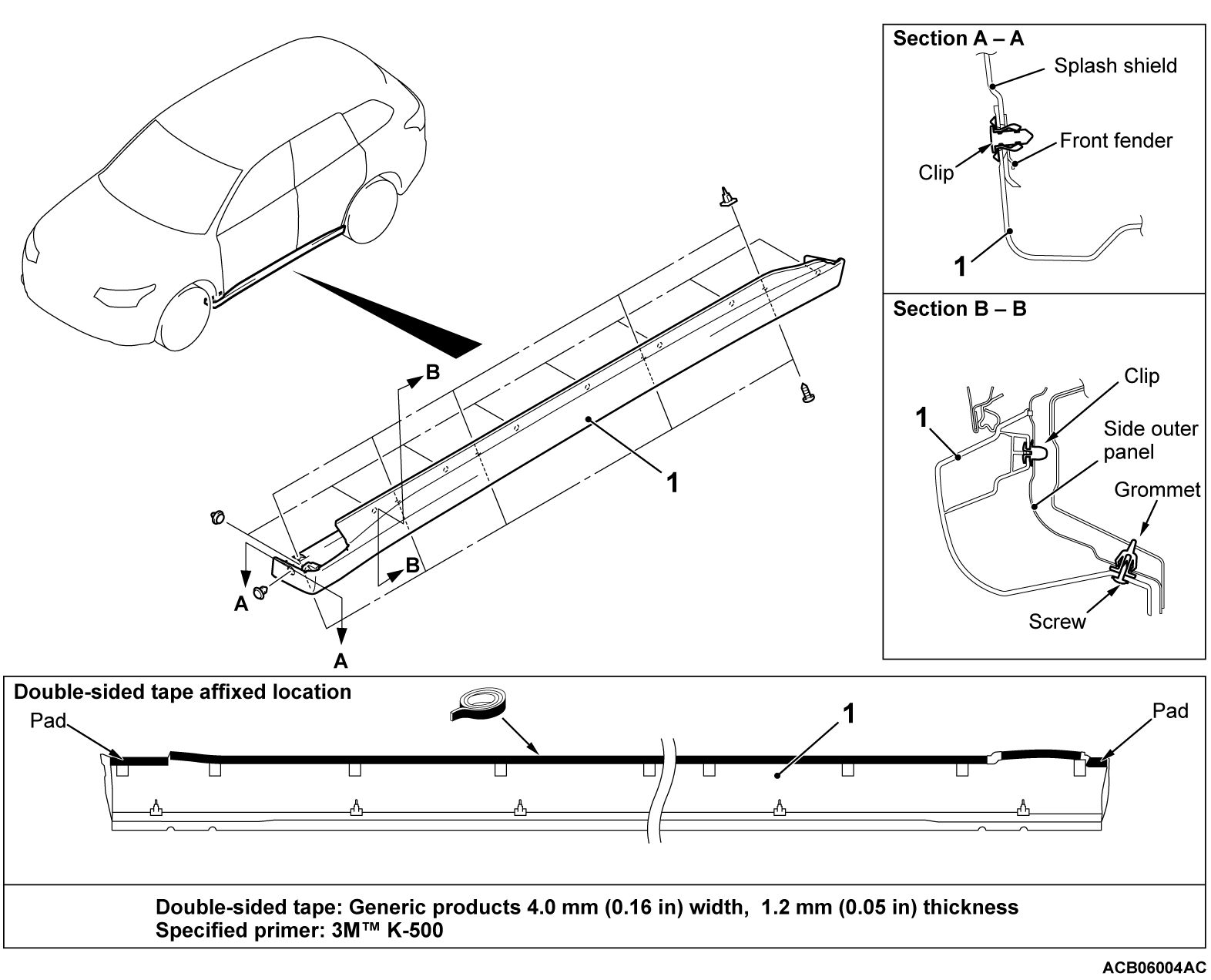

REMOVAL AND INSTALLATION


Removal step
<<A>>>>A<<1.Side air dam


REMOVAL SERVICE POINT


<<A>> SIDE AIR DAM REMOVAL
Gently lift and remove the side air dam. If there is any double-sided tape remaining on the side air dam, remove according to the following instructions.
<Remove double-sided tape remaining on the body surface>

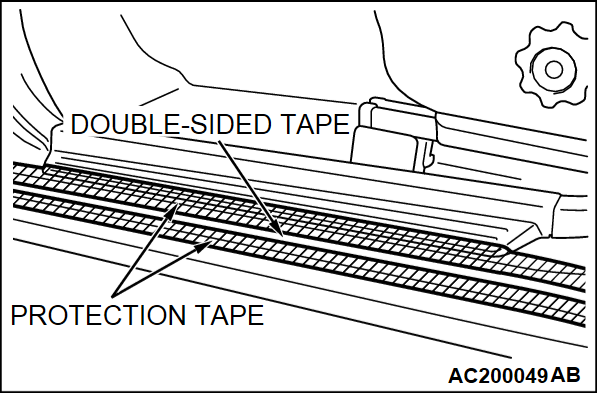

1. Attach protection tape all the way along the edges of the double-sided tape which is still adhering to the body.

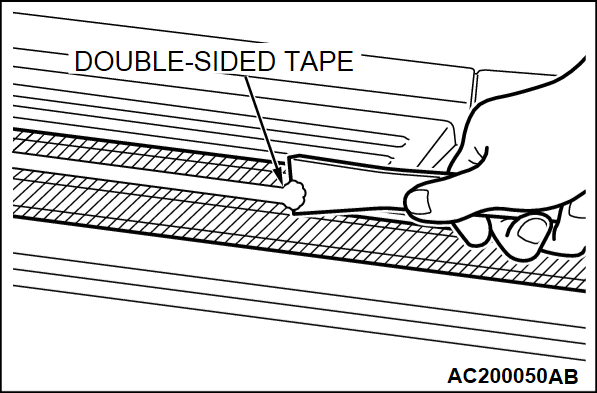

2. Scrape off the double-sided tape with a resin spatula as much as possible.
3. Peel off the protection tape.
4. Wipe the body surface and clean it with a rag moistened with Parts Cleaner (3M™ AAD Part number 8906 or equivalent).




<Remove double-sided tape remaining on side air dam and adhere double-sided tape (when re-using side air dam)>

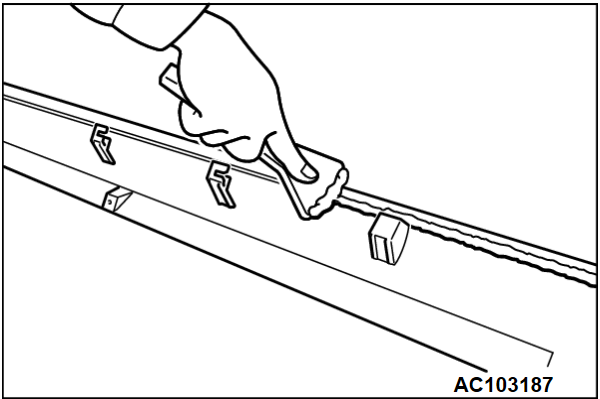

1. Scrape off the double-sided tape on the side air dam with a resin spatula as much as possible.
2. Wipe the side air dam surface and clean it with a rag moistened with Parts Cleaner (3M™ AAD Part number 8906 or equivalent).
3. Remove only a small portion of the residual adhesive.
4. Adhere the double-sided tape as specified on the side air dam.




INSTALLATION SERVICE POINT


>>A<< SIDE AIR DAM INSTALLATION
1. Use the parts cleaner (3M™ AAD Part number 8906 or equivalent) wipe off the adhesion surface to decrease it.
2. Apply the specified primer to the double-sided adhesive tape surface. Then dry it off sufficiently.
Specified primer: 3M™ K-500

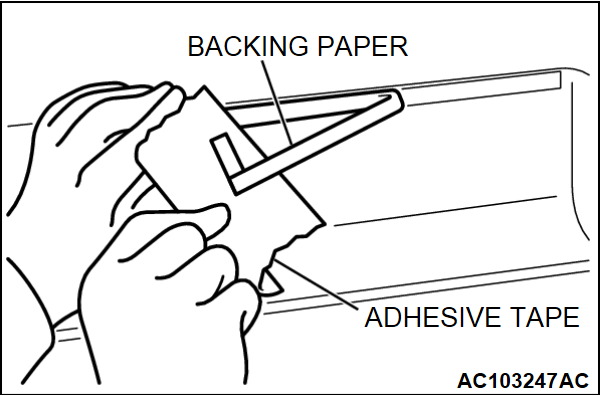

3. Tear off the double-sided tape backing paper.
noteIf attach the adhesive tape to the edge of the backing paper, it will be easy to tear off.
4. Install the side air dam.
noteIf the double-sided tape is difficult to affix in cold temperature, etc., warm the bonding surfaces of the body and side air dam to about 40- 60°C (104 - 140°F) before affixing the tape.
5. Firmly press in the side air dam.
