REMOVAL AND INSTALLATION


Post-installation operation
  • Clearance check around the hood (Refer to .)
  • Adjustment of the hood level and hood striker engagement (Refer to .)
  • Adjustment of hood height (Refer to .)
Damper removal
1.Damper A
2.Damper B
3.Hood plug
Removal steps for hood latch and hood lock release cable
•Headlight support upper panel cover (Refer to GROUP 51 - Radiator Grille .)
4.Hood latch
5.Hood lock release handle
•Front splash shield (Refer to .)
•Front bumper assembly (Refer to GROUP 51 - Front Bumper .)
•AWD-ECU <AWD> (Refer to GROUP 27C - Electronically Controlled AWD .)
•Headlight assembly (Refer to GROUP 54A - Headlight .)
6.Hood lock release cable

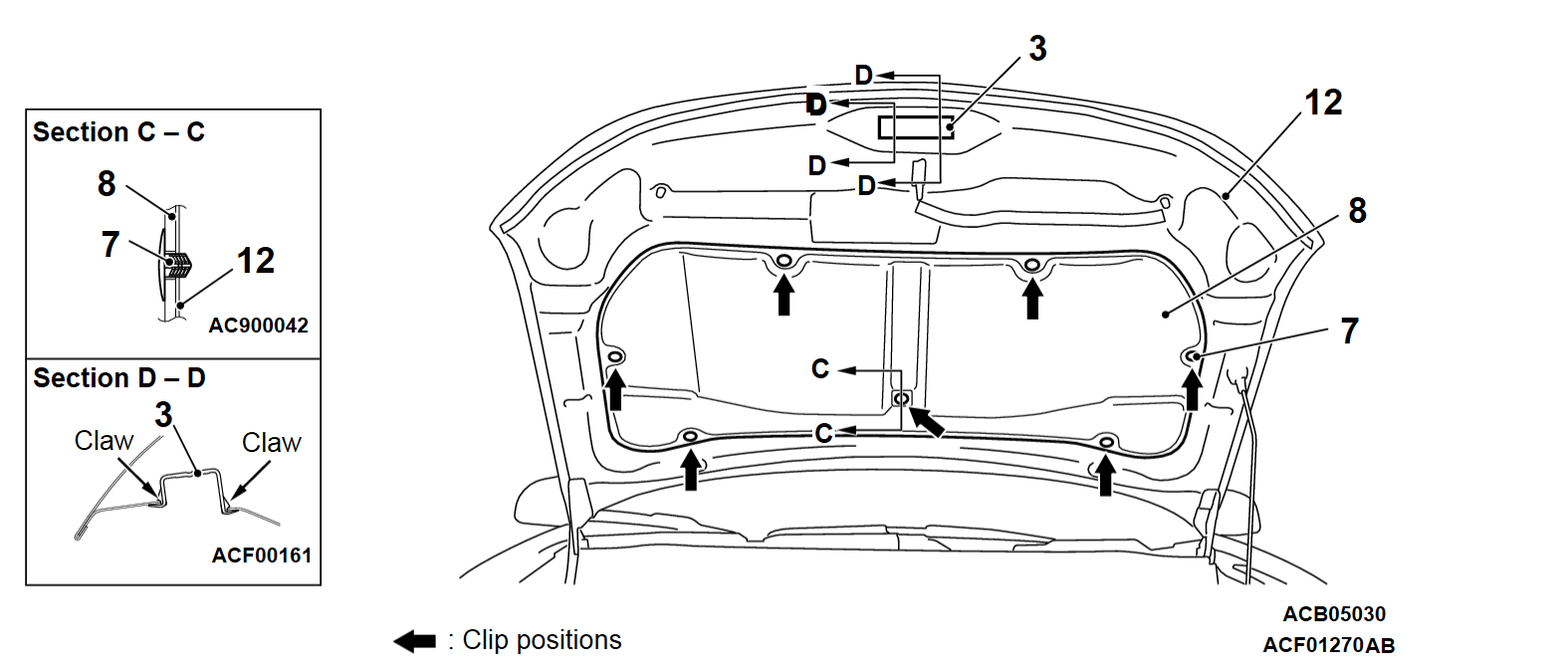

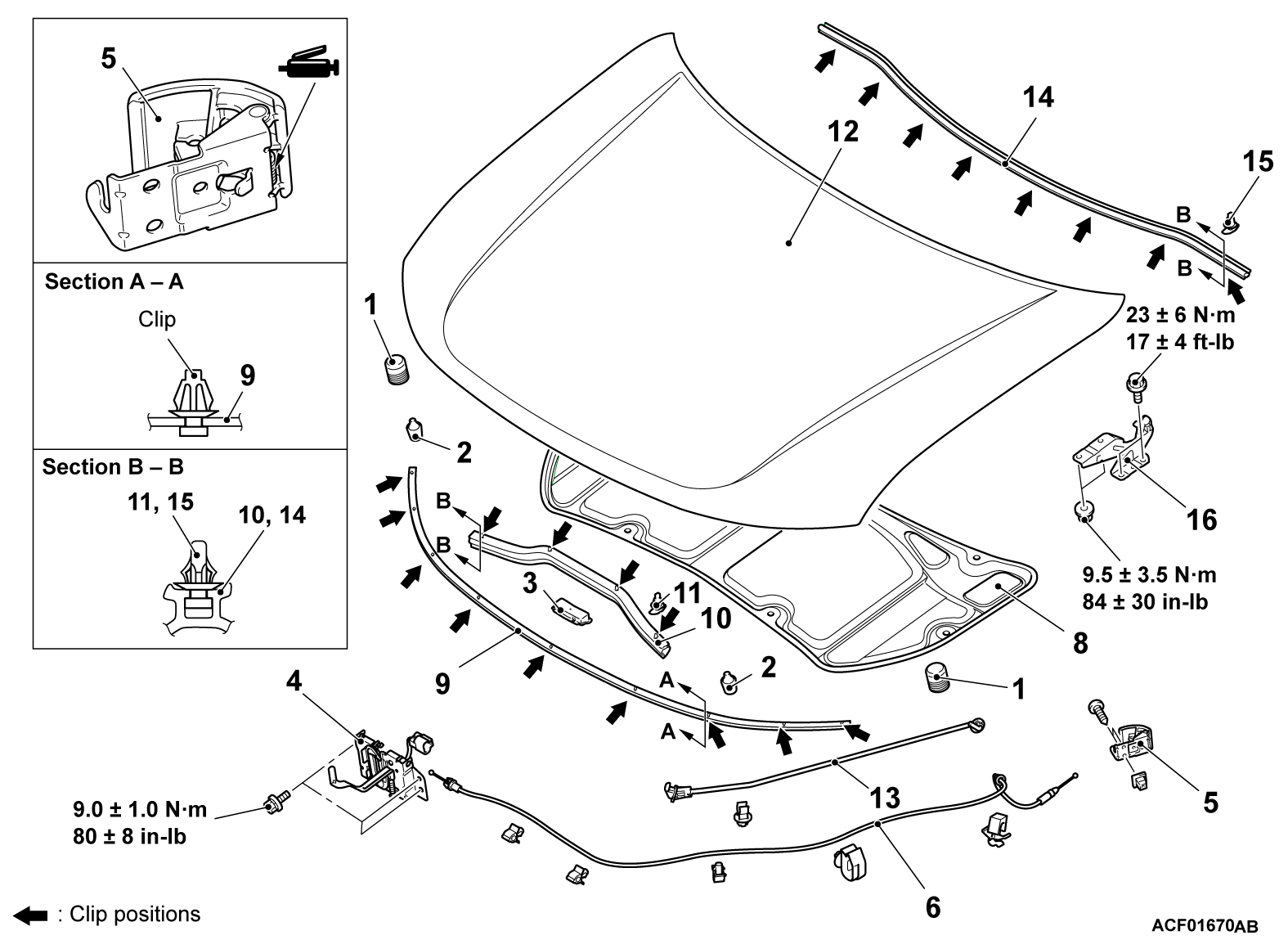

Hood removal steps
7.Clip
8.Hood insulator
9.Hood weatherstrip
10.Hood weatherstrip front
11.Clip
•Windshield washer hose and washer nozzles (Refer to GROUP 51 - Windshield Washer .)
12.Hood
13.Hood support rod
14.Hood weatherstrip rear
15.Clip
•Front deck garnish (Refer to GROUP 51 - Windshield Wiper .)
16.Hood hinge
