REMOVAL AND INSTALLATION


Pre-removal and Post-installation Operation
  • Front Bumper Assembly Removal and Installation (Refer to ).
  • Engine Room Side Cover Removal and Installation (Refer to ).
  • Splash Shield (RH) Mounting Clips Removal and Installation (Refer to GROUP 42A, Splash Shield ).
  • Windshield Washer Fluid Draining and Filling.
  • Rear Washer Hose Connection.
  • Windshield Washer Motor Connector Connection.

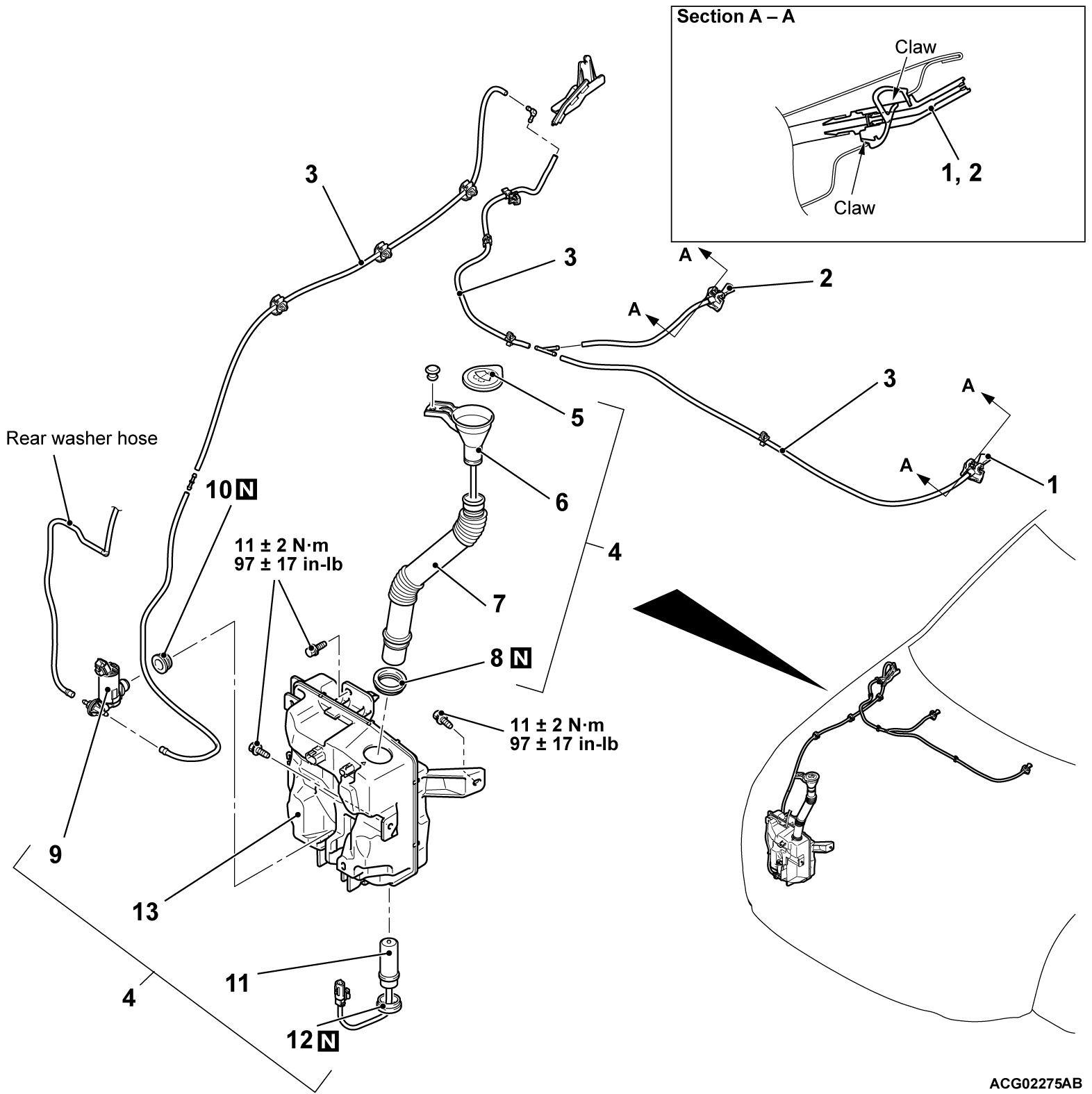

Removal steps
1.Windshield washer nozzle assembly <LH>
2.Windshield washer nozzle assembly <RH>
3.Windshield washer hose
4.Windshield washer tank assembly
5.Windshield washer tank filler cap
6.Windshield washer tank filler hose A
7.Windshield washer tank filler hose B
8.Grommet
9.Windshield washer motor
10.Windshield washer tank inlet gasket
11.Windshield washer tank fluid level sensor
12.Windshield washer tank gasket
13.Windshield washer tank
