ADJUSTMENT OF CLEARANCE AROUND HOOD
1. Remove the front deck garnish (Refer to GROUP 51 - Windshield Wiper ).

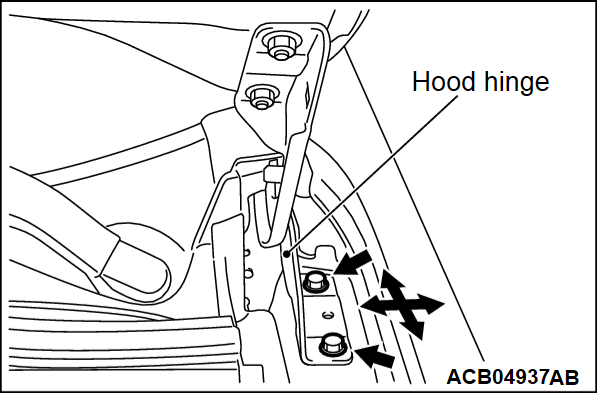

2. Loosen the hood hinge mounting bolts but do not remove them. Move the hood hinge back/forth and left/right to align the clearance between the hood and body.
3. After the adjustment, tighten the hood hinge mounting bolts to 23 ± 6 N·m (17 ± 4 ft-lb).
4. Install the front deck garnish (Refer to GROUP 51 - Windshield Wiper ).
