REMOVAL AND INSTALLATION

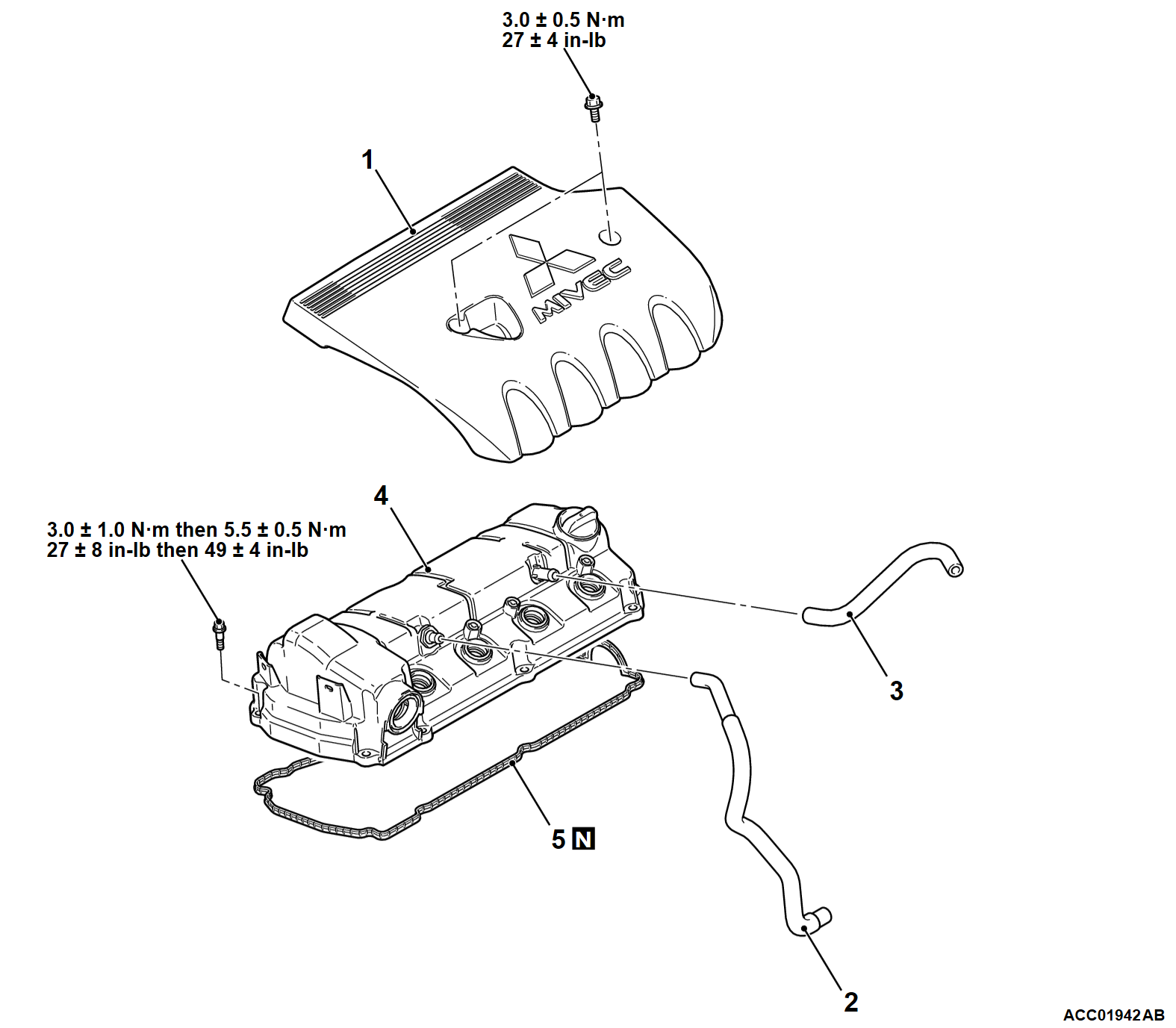

Removal steps
1.Engine upper cover
2.PCV hose
3.Breather hose
•Control wiring harness connection
•Ignition coil (Refer to GROUP 11B - Generator and Ignition System ).
•Valve lift control motor, motor bracket (Refer to ).
<<A>>>>A<<4.Rocker cover assembly
5.Rocker cover gasket


REMOVAL SERVICE POINT


<<A>> ROCKER COVER ASSEMBLY REMOVAL
To avoid damage to the spark plug guide oil seal, remove the rocker cover assembly along the spark plug guide.




INSTALLATION SERVICE POINT


>>A<< ROCKER COVER ASSEMBLY INSTALLATION
For the installation procedure, refer to GROUP 11B - Oil Pan and Timing Chain Case .
