REMOVAL AND INSTALLATION
Pre-removal operation
  • Engine Upper Cover Removal (Refer to ).
  • Injector Protector Front Removal (Refer to GROUP 15 - Exhaust Manifold ).
Post-installation operation
  • Injector Protector Front Installation (Refer to GROUP 15 - Exhaust Manifold ).
  • Engine Upper Cover Installation (Refer to ).

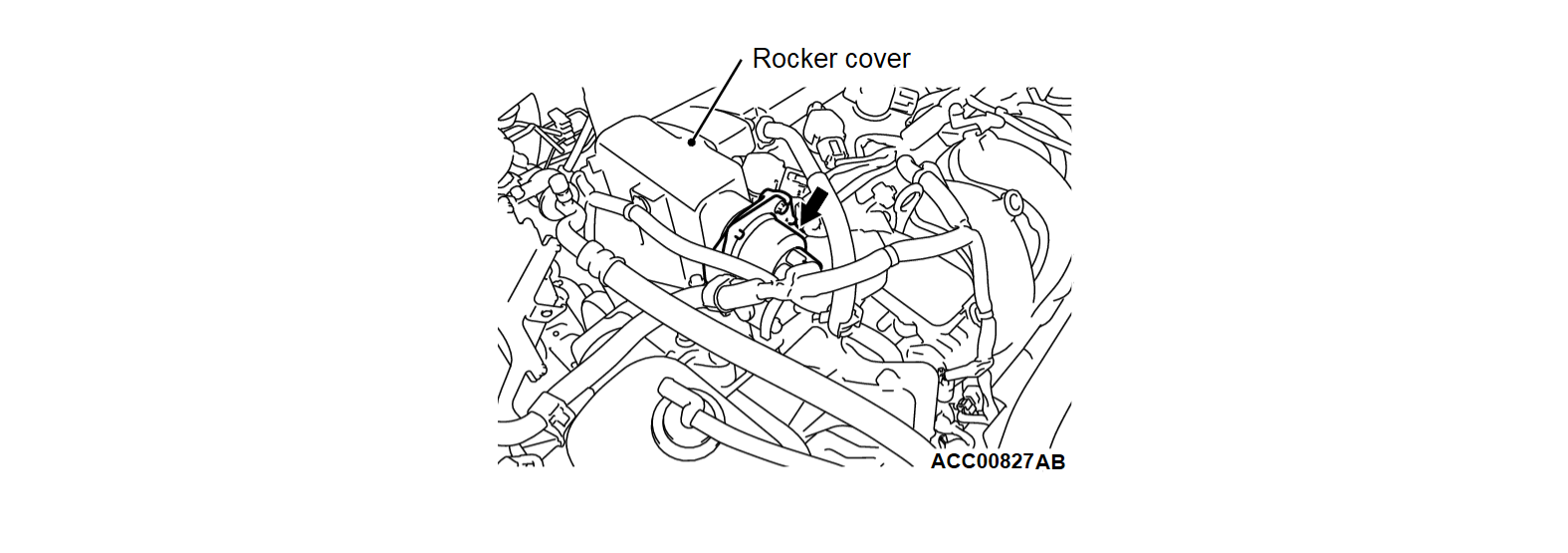

For the removal and installation procedures, refer to GROUP 11B - Valve Lift Control Motor .
