REMOVAL AND INSTALLATION <2.4L ENGINE>


caution
  • When removing or installing the manifold absolute pressure sensor, be careful not to apply impact to the sensor.
  • Do not reuse the manifold absolute pressure sensor that has been dropped.
Pre-removal operation
  • Air Cleaner Assembly Removal (Refer to ).
  • Brake Booster Vacuum Hose Removal (Refer to GROUP 35A - Master Cylinder Assembly and Brake Booster ).
  • Throttle Body Assembly Removal (Refer to GROUP 13A - Throttle Body Assembly ).
  • Fuel Rail and Fuel Injector Assembly Removal (Refer to GROUP 13A - Injector ).
Post-installation operation
  • Fuel Rail and Fuel Injector Assembly Installation (Refer to GROUP 13A - Injector ).
  • Throttle Body Assembly Installation (Refer to GROUP 13A - Throttle Body Assembly ).
  • Brake Booster Vacuum Hose Installation (Refer to GROUP 35A - Master Cylinder Assembly and Brake Booster ).
  • Air Cleaner Assembly Installation (Refer to ).

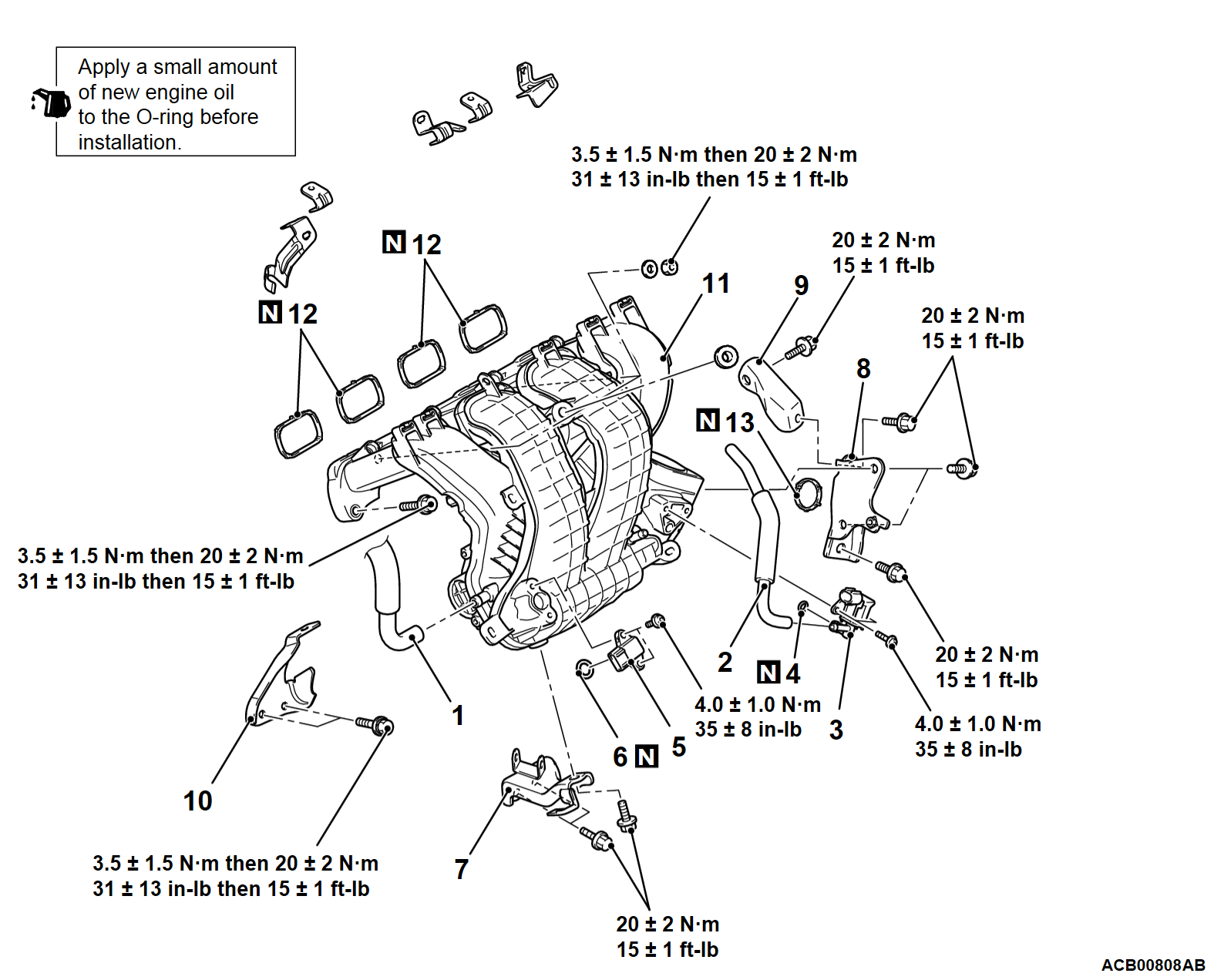

Removal steps
•Control wiring harness connection
1.Rocker cover PCV hose connection
2.Emission vacuum hose
>>C<<3.Evaporative emission purge solenoid
>>C<<4.O-ring
>>C<<5.Manifold absolute pressure sensor
>>C<<6.O-ring
>>B<<7.Inlet manifold stay
>>B<<8.Inlet manifold stay B
>>B<<9.Inlet manifold stay C
>>A<<10.Injector protector front
>>A<<11.Inlet manifold
12.Inlet manifold gasket
13.Gasket


INSTALLATION SERVICE POINTS


>>A<< INLET MANIFOLD/INJECTOR PROTECTOR FRONT INSTALLATION
1. Tighten the inlet manifold and the Injector protector temporarily, because they have the specified order.
2. When installing the fuel rail and fuel injector assembly, tighten the mounting bolts and nuts to the specified torque (Refer to GROUP 13A - Fuel Injector ).


>>B<< INLET MANIFOLD STAY INSTALLATION
1. Temporarily tighten the inlet manifold stay with mounting bolt.
2. Make sure that the inlet manifold stay is closely contacted with the installation surface of each part, and then tighten the mounting bolt to the specified torque.
Tightening torque: 20 ± 2 N·m (15 ± 1 ft-lb).



>>C<< O-RING/MANIFOLD ABSOLUTE PRESSURE SENSOR/EVAPORATIVE EMISSION PURGE SOLENOID INSTALLATION
1. Apply a small amount of new engine oil to the O-ring.
2. Install the manifold absolute pressure sensor and the evaporative emission purge solenoid to the inlet manifold with care not to damage the O-ring.
3.
cautionDo not over-tighten. If the mounting screw is over-tightened, the inlet manifold can be damaged.
Tighten the mounting screws to the specified torque.
Tightening torque: 4.0 ± 1.0 N·m (35 ± 8 in-lb)
