REMOVAL AND INSTALLATION


Pre-removal and Post-installation Operation
  • Discharging and Recharging refrigerant (Refer to ).
  • Air Cleaner Intake Duct (Refer to GROUP 15 - Air Cleaner <2.4L Engine>, <3.0L Engine>).
  • Headlight support upper panel cover (Refer to GROUP 51 - Radiator Grille ).
  • Hood latch (Refer to GROUP 42A - Hood ).
  • Headlight support panel upper (Refer to GROUP 42A - Loose Panel ).
  • Air guide panel (Refer to GROUP 42A - Loose Panel ).

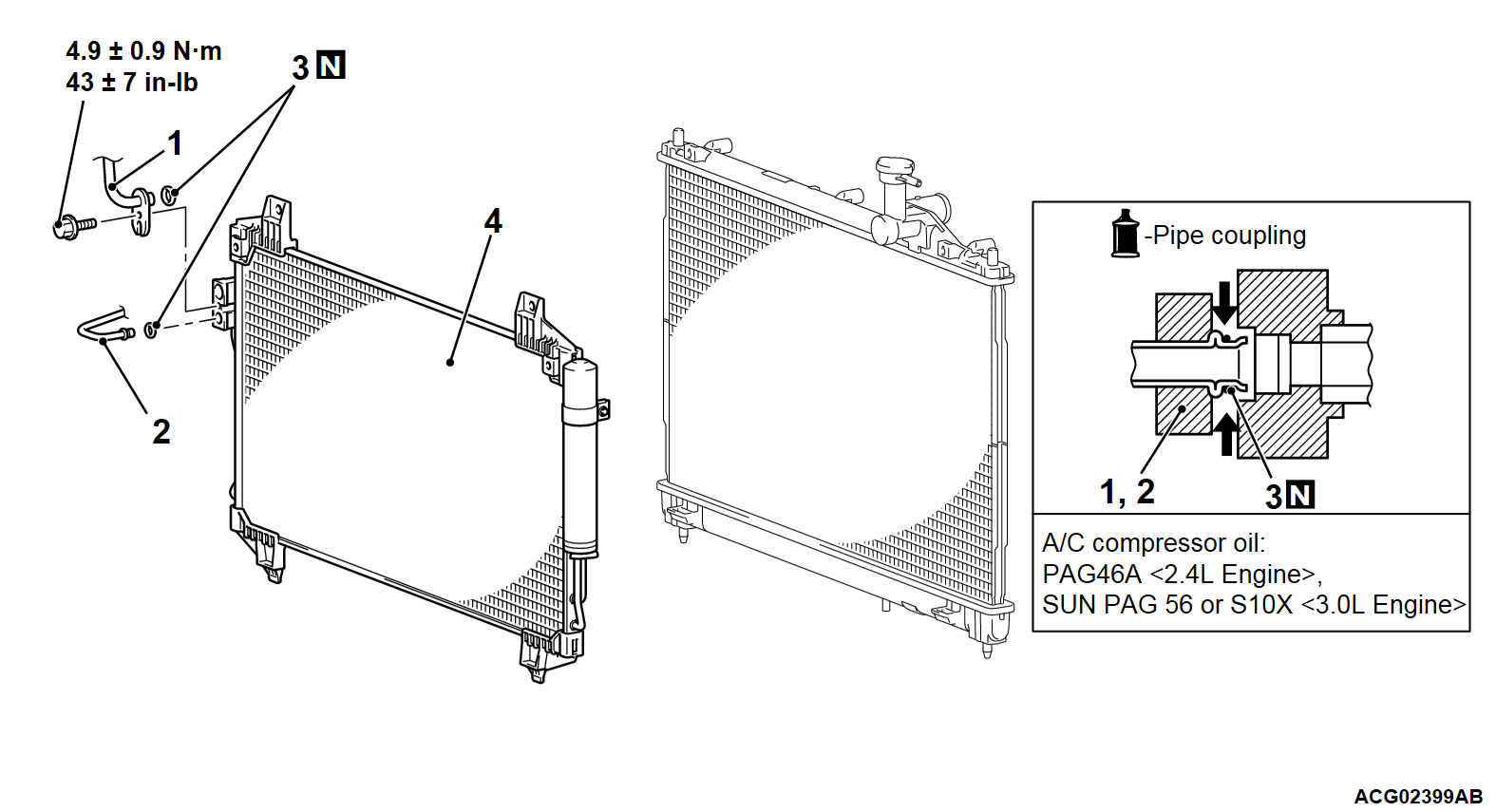

Removal steps
<<A>>>>A<<1.A/C compressor discharge hose connection
<<A>>2.A/C condenser outlet pipe connection
3.O-ring
4.Condenser assembly


REMOVAL SERVICE POINT


<<A>> A/C COMPRESSOR DISCHARGE HOSE AND A/C CONDENSER OUTLET PIPE DISCONNECTION
cautionUse the plug which is not breathable because A/C compressor oil or receiver have high hygroscopicity.
Plug the removed nipple of the pipe, hose and condenser to prevent the entry of dust and dirt.




INSTALLATION SERVICE POINT


>>A<< A/C COMPRESSOR DISCHARGE HOSE INSTALLATION
Assemble the clamp into the condenser assembly, and then assemble the A/C condenser discharge hose into the clamp.
