REMOVAL AND INSTALLATION


Pre-removal and post-installation operation
  • Multivision Display Assembly Removal and Installation (Refer to GROUP 54A - Smartphone Link Display Audio ) <Vehicles with smartphone link display audio>.
  • Radio and CD Player Assembly Removal and Installation (Refer to GROUP 54A - Radio and CD player ) <Vehicles with display audio or 1 CD audio>.
  • Combination Meter Bezel Removal and Installation (Refer to GROUP 54A - Combination Meter ).

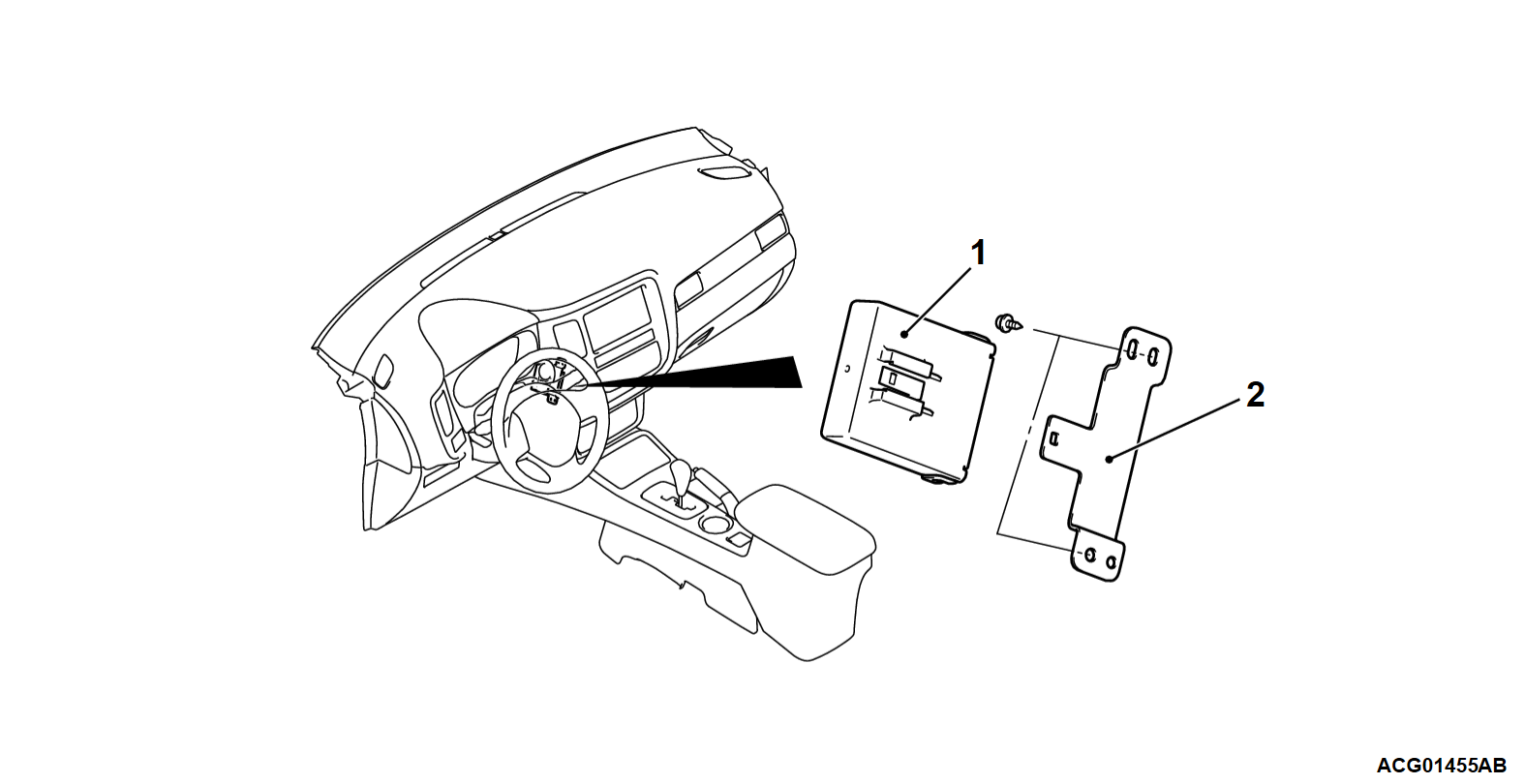

Removal steps
<<A>>1.Gateway-ECU
2.Gateway-ECU bracket


REMOVAL SERVICE POINT

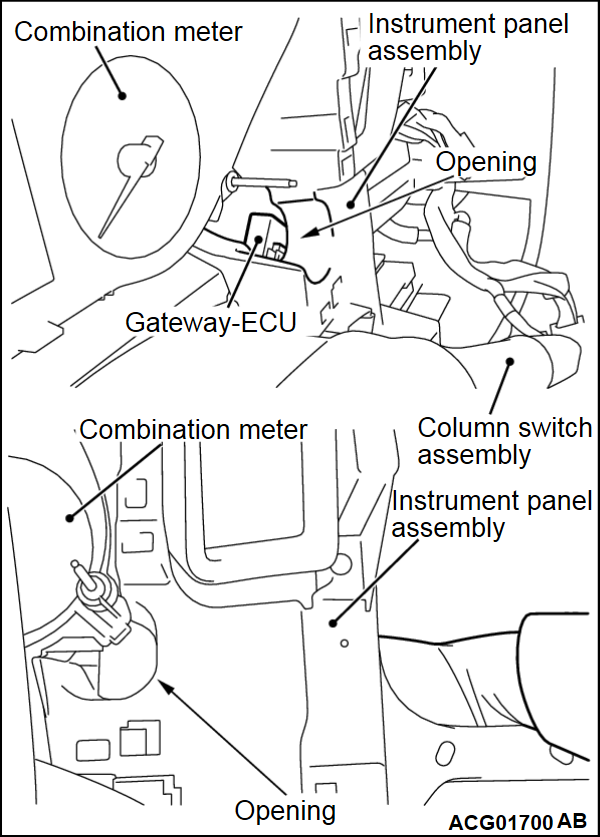

<<A>> GATEWAY-ECU REMOVAL
Remove the meter bezel. Then disengage the tabs on the gateway-ECU and its bracket through the meter bezel opening to separate the ECU from the bracket. Reach through the opposite side of the opening to pull out the ECU.
