REMOVAL AND INSTALLATION
noteWhen the radio and CD player is replaced, always turn the ignition switch to the "ON" position once and then carry out the operation check.
Pre-removal and Post-installation Operation
Center panel assembly (Refer to GROUP 52A - Instrument Panel Assembly ).

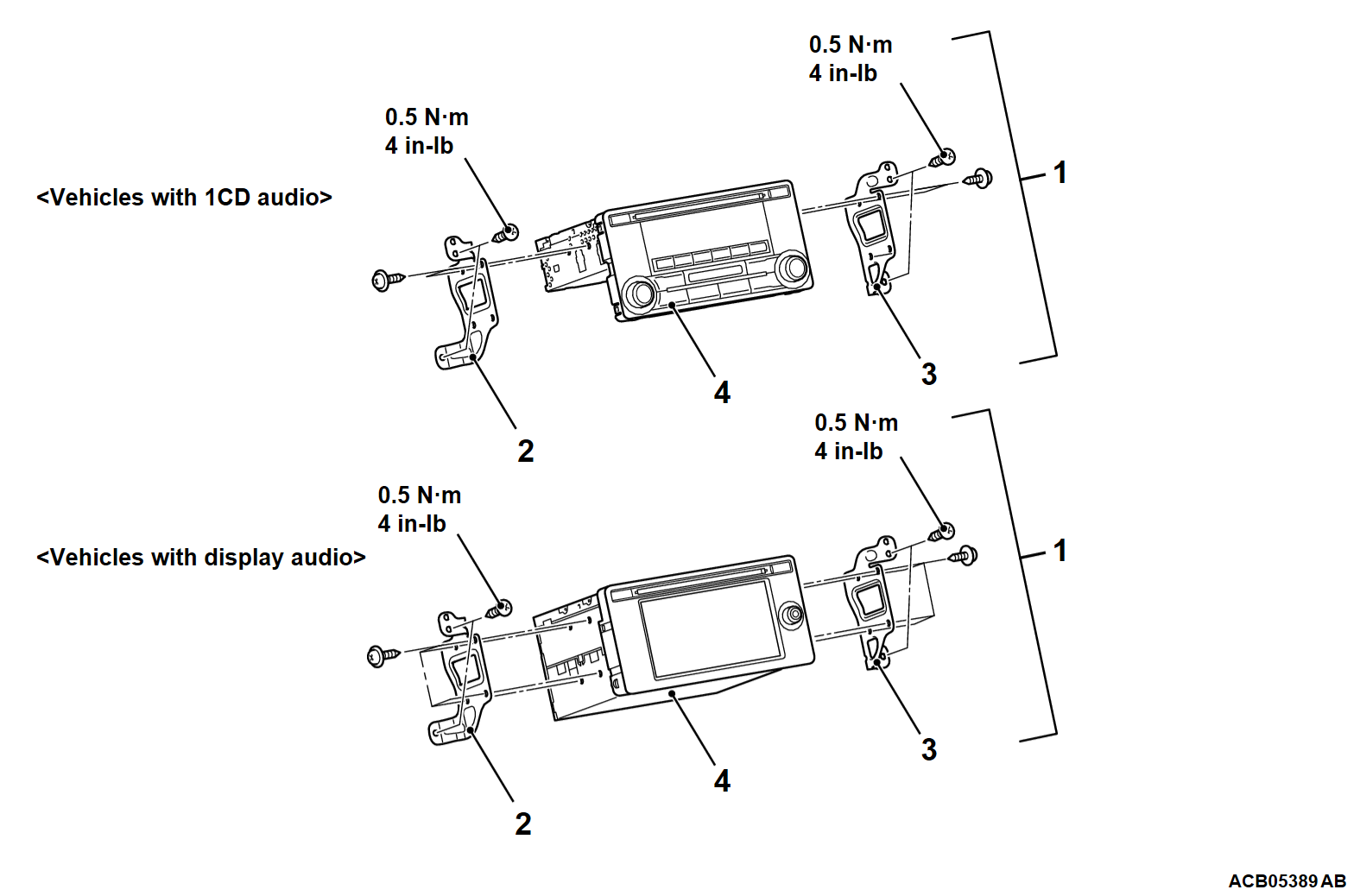

Removal steps
1.Radio and CD player assembly
2.Radio and CD player bracket LH
3.Radio and CD player bracket RH
4.Radio and CD player
