REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
Center Panel Assembly Removal and Installation (Refer to GROUP 52A - Instrument Panel Assembly ).

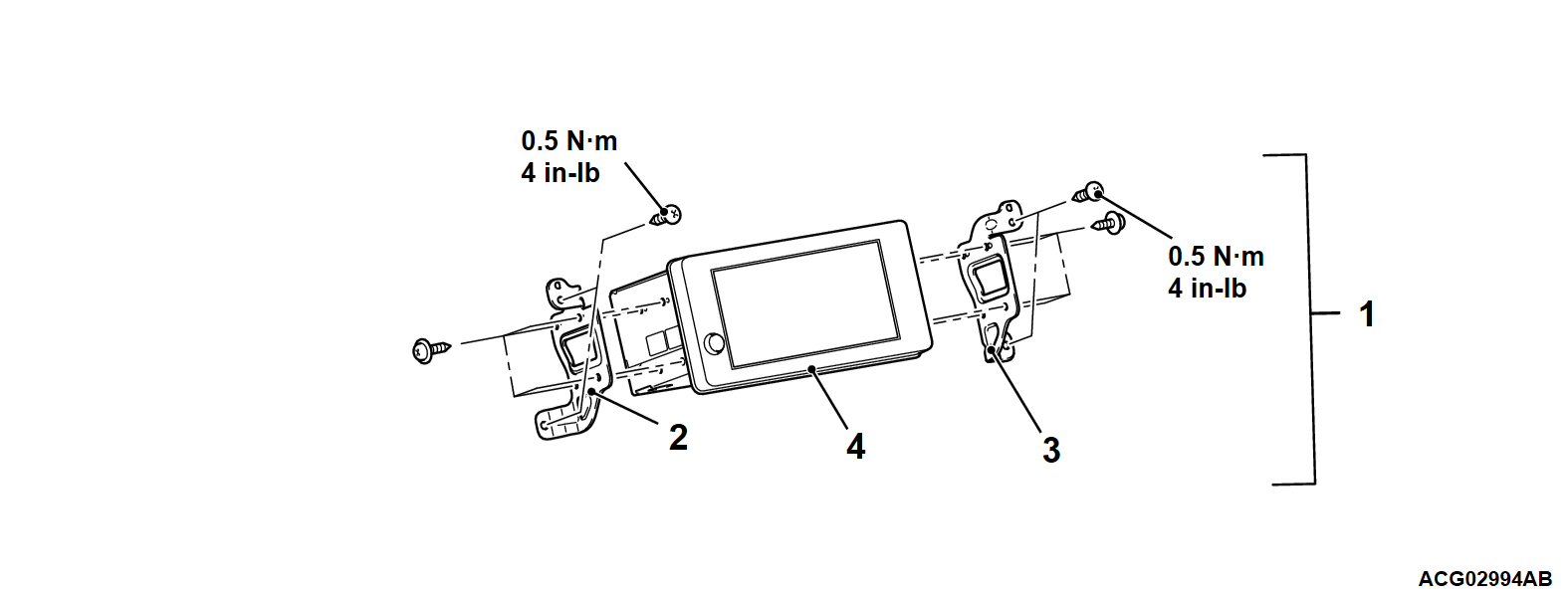

Removal steps
1.Multivision display assembly
2.Television bracket LH
3.Television bracket RH
>>A<<4.Multivision display



INSTALLATION SERVICE POINT


>>A<< MULTIVISION DISPLAY

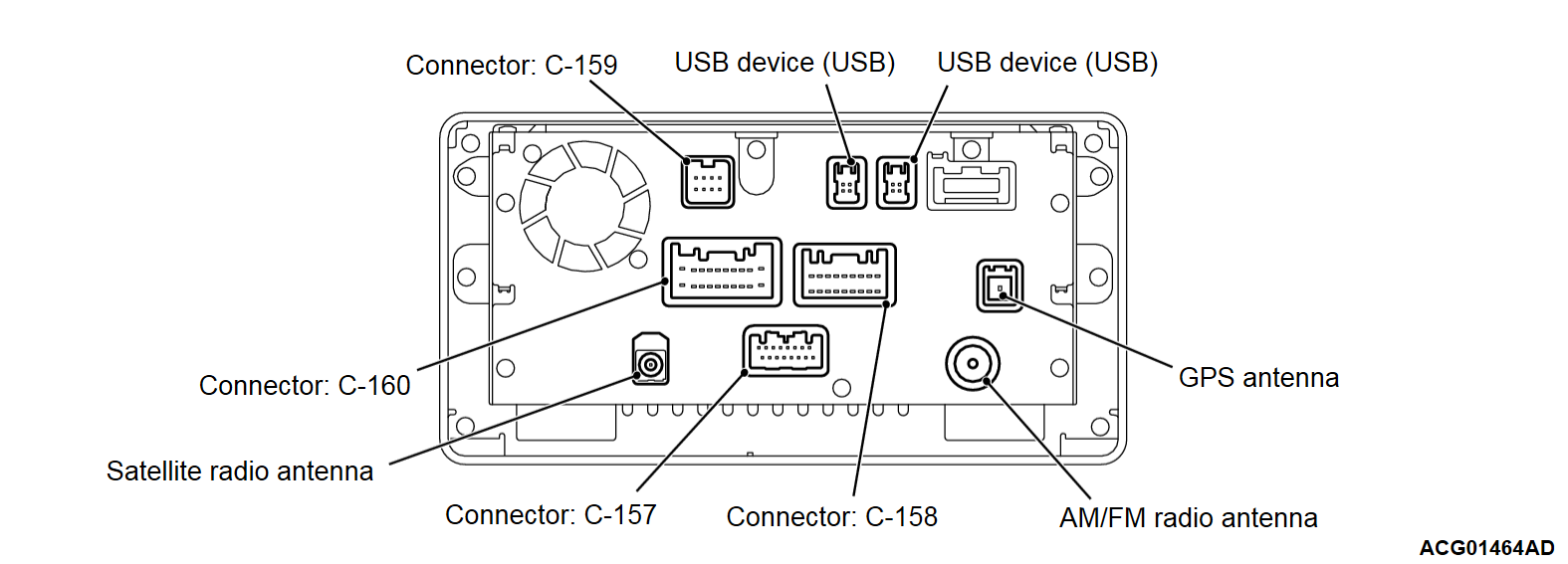

The connectors, antenna and cables connected to the multivision display are shown in the figure.
