SPEAKER TEST


<Vehicles with 1CD audio>


HOW TO START SPEAKER CONNECTION CHECK MODE
Enter the speaker connection check mode according to the following steps:
1. Turn the Ignition switch to the "ACC" or "ON" position and switch off the radio and CD player.

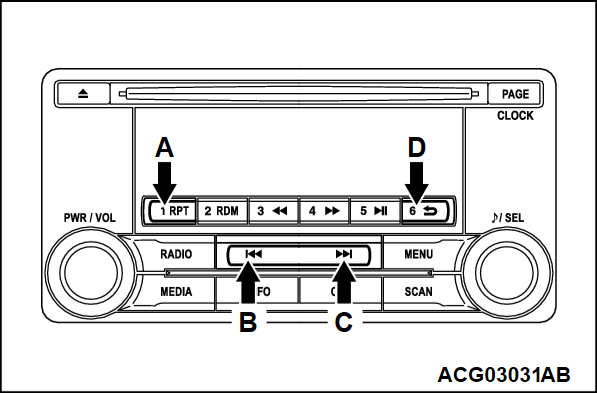

2. Press the following buttons in that order within sixty seconds from step 1.
(1) Button A
(2) Button B
(3) Button C
(4) Button D



SPEAKER CONNECTION CHECK MODE

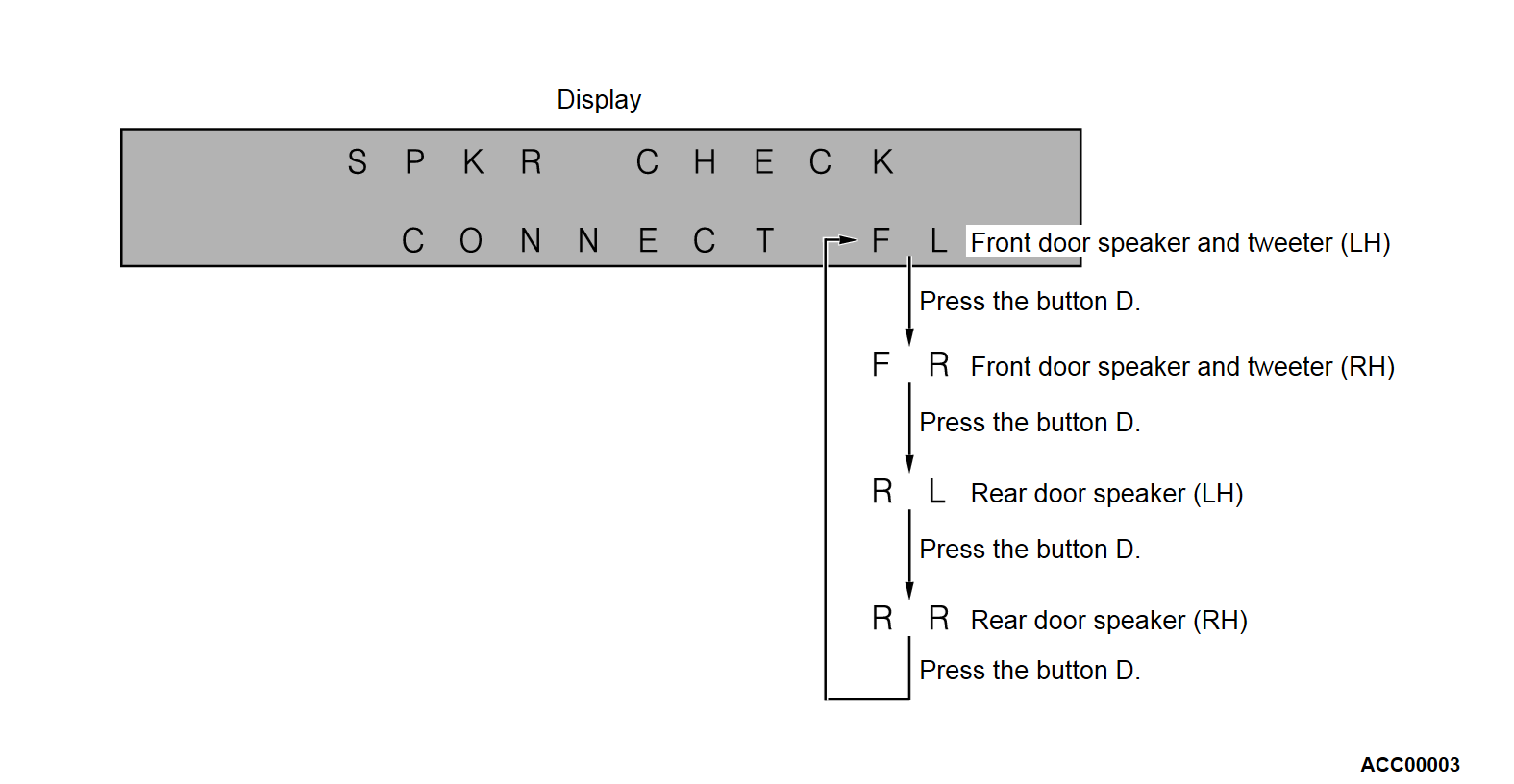

With the speaker connection check mode, the connection status of each speaker can be checked based on the sound output from each speaker. The procedure is as follows.
noteIf a button other than the button D is pressed, or the ignition switch is turned to "LOCK" (OFF) position, you will exit from the speaker connection check mode.

1.
At the same time with the start of speaker check mode, the sound for speaker connection check is output from the front door speaker (LH) and tweeter (LH).
2. Press the button D to switch the sound output for speaker connection check from the front door speaker (RH) and tweeter (RH).
3. Press the button D to switch the sound output for speaker connection check from the rear door speaker (LH).
4. Press the button D to switch the sound output for speaker connection check from the rear door speaker (RH).



<Vehicles with display audio (CD player equipped)>
Refer to service mode .



<Vehicles with display audio (CD player no equipped)>
Refer to service mode .



<Vehicles with smartphone link display audio>
Refer to diagnosis mode .
