REMOVAL AND INSTALLATION


Post-installation operation
  • Door adjustment (Refer to .)

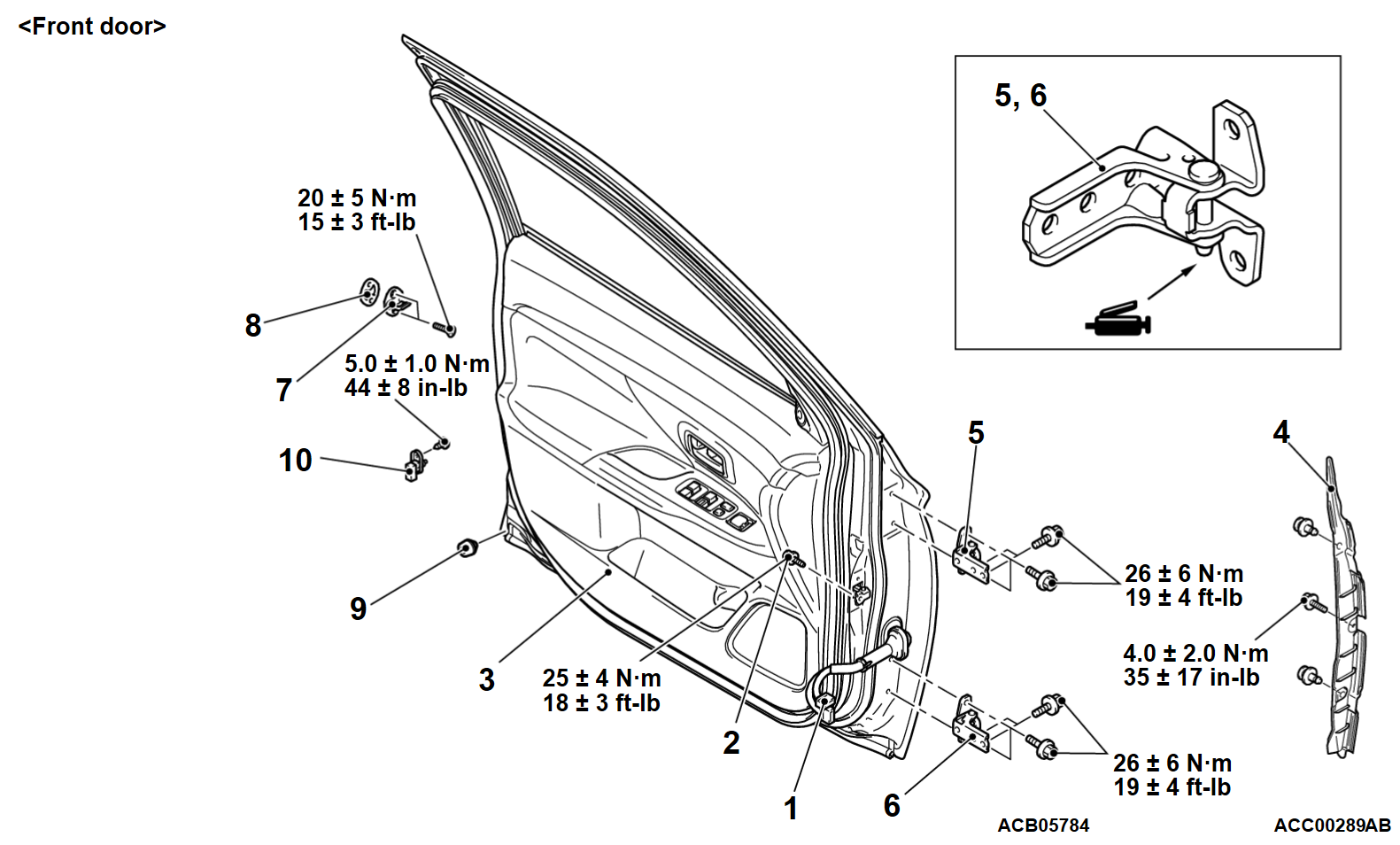

Front door assembly removal steps
Cowl side trim (Refer to GROUP 52A - Interior Trim .)
1.Wiring harness connector connection
2.Door check connecting bolt
3.Front door assembly
Front door hinge removal steps
Side air dams (Refer to GROUP 51 - Side Air Dams .)
3.Front door assembly
4.Fender protector rear
5Front door upper hinge
6.Front door lower hinge
Striker removal steps
>>A<<7.Striker
8.Shim
Damper removal
9.Damper
Door switch removal
10.Door switch

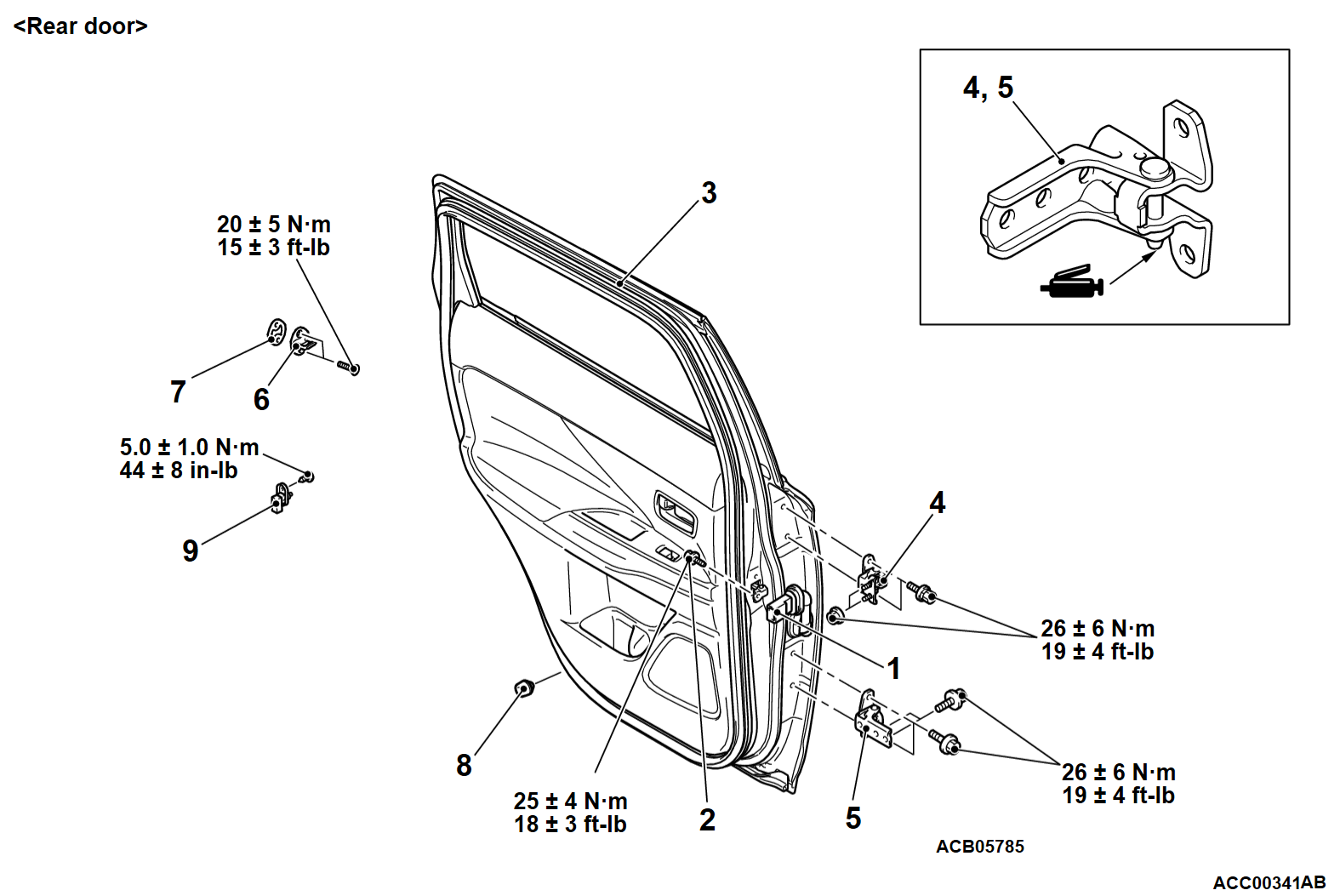

Rear door assembly removal steps
1.Wiring harness connector connection
2.Door check connecting bolt
3.Rear door assembly
Rear door hinge removal steps
Center pillar trim (Refer to GROUP 52A - Interior Trim .)
3.Rear door assembly
4.Rear door upper hinge
5.Rear door lower hinge
Striker removal steps
>>A<<6.Striker
7.Shim
Damper removal
8.Damper
Door switch removal
9.Door switch


INSTALLATION SERVICE POINT


>>A<< STRIKER INSTALLATION

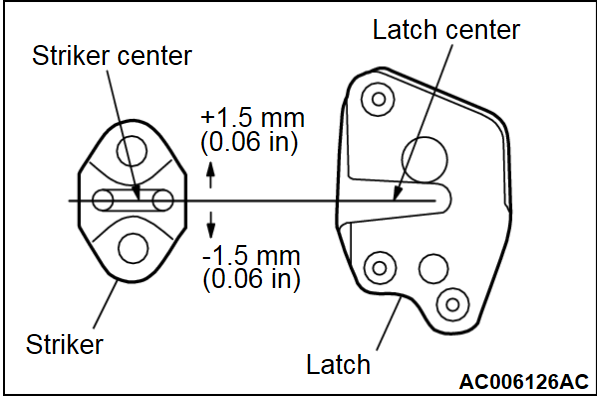

Align the center of the striker and latch within ±1.5 mm (0.06 inch), and install.
