REMOVAL AND INSTALLATION


Pre-removal operation
  • Air Cleaner Assembly Removal. (Refer to GROUP 15 - Air Cleaner )
  • Battery and Battery Tray Removal. (Refer to GROUP 54A - Battery )
Post-installation operation
  • Battery and Battery Tray Installation. (Refer to GROUP 54A - Battery )
  • Air Cleaner Assembly Installation. (Refer to GROUP 15 - Air Cleaner )
  • Transmission Range Switch and Control Cable Adjustment. (Refer to )

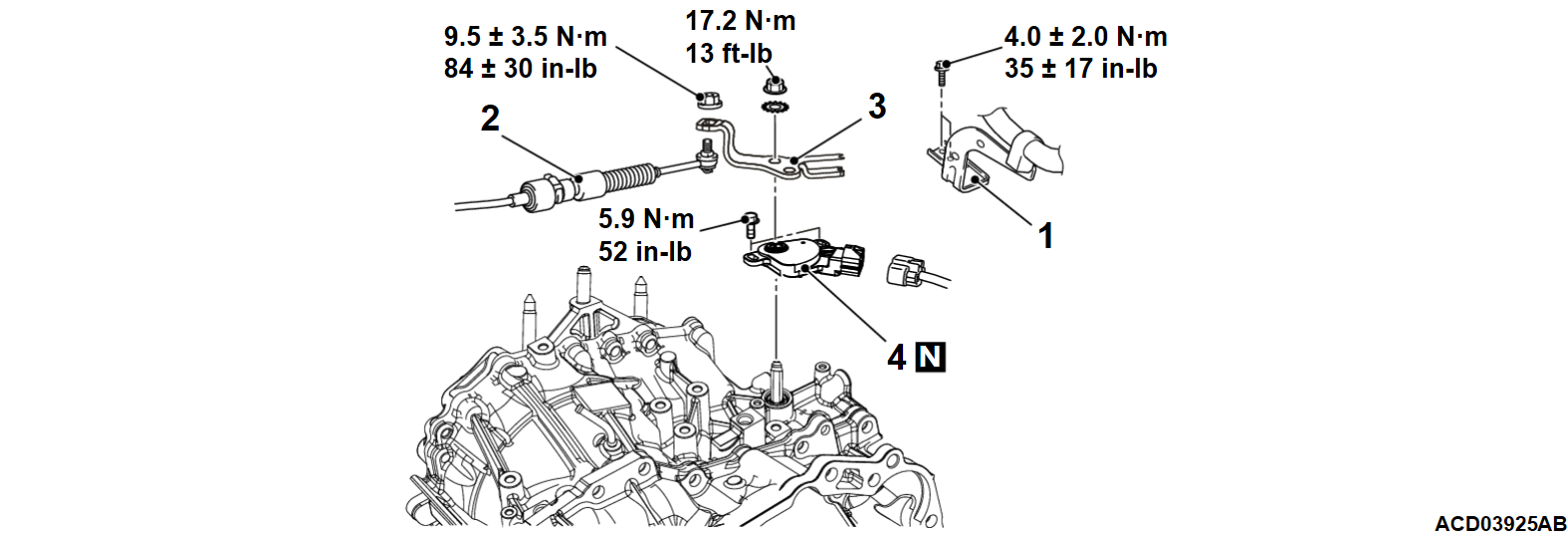

Removal steps
1.Harness bracket connection
2.Transaxle control cable connection
3.Manual control lever
4.Transmission range switch
