DTC P2763: Malfunction of the Lock-up Solenoid Valve (high input)




DIAGNOSTIC FUNCTION
The TCM monitors the lock-up solenoid valve circuit for open or short to power supply.


DESCRIPTIONS OF MONITOR METHODS
  • All the conditions listed below remain for 5 seconds.
    • The lock-up solenoid valve command current is 750 mA or more.
    • The lock-up solenoid valve current, which the TCM monitors, is 200 mA or less.
    • The solenoid valve drive circuit is not shorted to ground.
  • All the conditions listed below remain for 5 seconds.
    • The solenoid valve drive circuit is not shorted to ground.
    • The solenoid valve drive circuit system is defective.


MONITOR EXECUTION
  • Voltage of battery: 10 volts or more.


MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
  • P0715: Malfunction of primary pulley speed sensor
  • P0720: Malfunction of secondary pulley speed sensor
  • P2765: Malfunction of turbine speed sensor
Sensor (The sensor below is determined to be normal)
  • Primary pulley speed sensor
  • Secondary pulley speed sensor
  • Turbine speed sensor

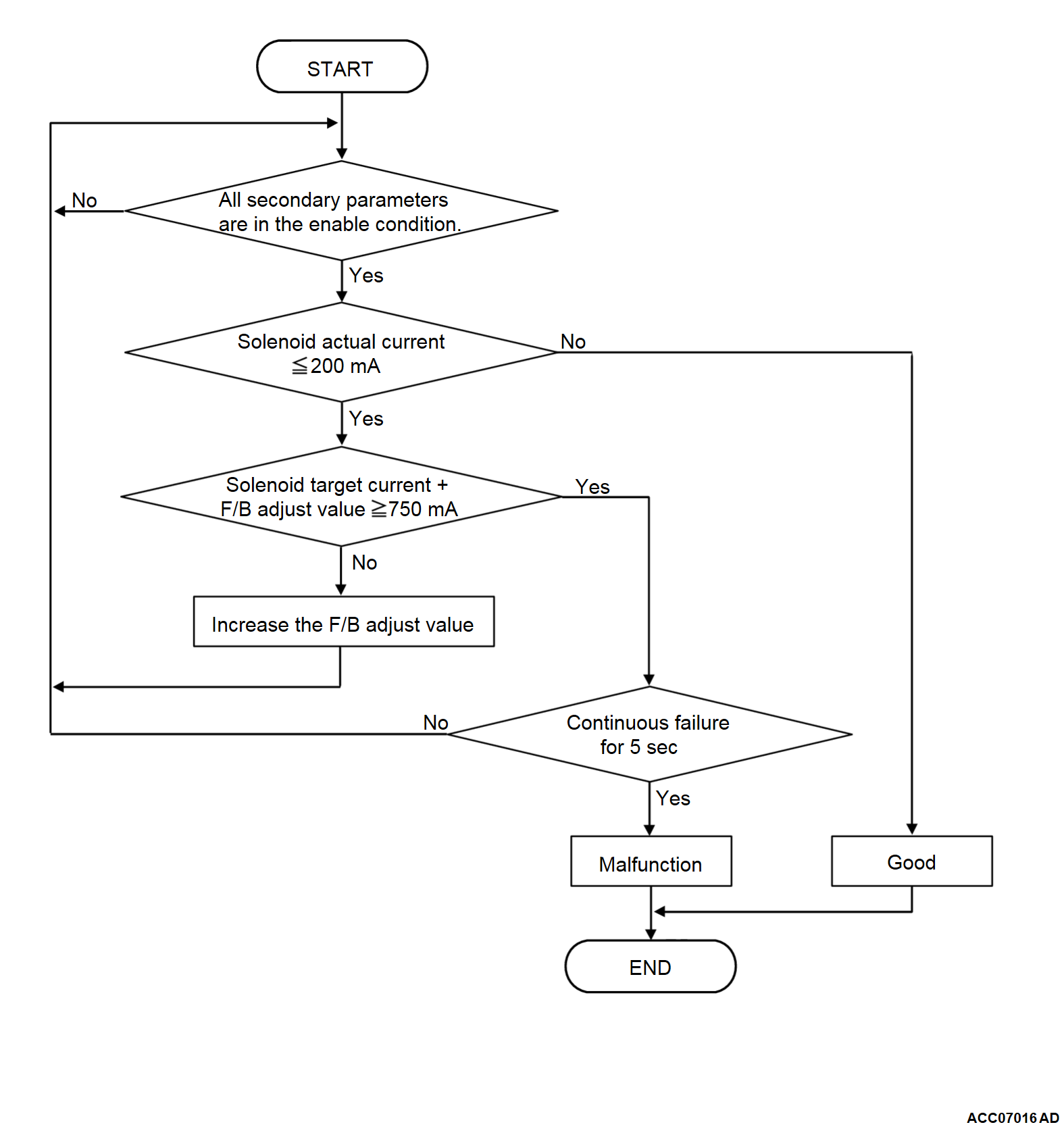

LOGIC FLOW CHARTS (Monitor Sequence)


DTC SET CONDITIONS
Check Conditions
  • Voltage of battery: 10 volts or more.
Judgment Criteria
  • Lock-up solenoid valve actual current: 200 mA or less (5 seconds).
  • Lock-up solenoid valve target current + F/B adjust value: 750 mA or more (5 seconds).


OBD-II DRIVE CYCLE PATTERN
Ignition switch: ON (start the engine and keep it for 10 seconds or more)


PROBABLE CAUSES
  • Malfunction of the valve body assembly (Faulty lock-up solenoid valve)
  • Damaged wiring harness and connectors
  • Malfunction of TCM


DIAGNOSIS
STEP 1. Voltage measurement at TCM connector (LULS terminal)
(1) Disconnect the TCM connector, and measure at the wiring harness side.
(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between the TCM connector (LULS terminal) and body ground.
OK: 0 V
Is the check result normal?
Go to Step 2.
: Repair the connector(s) or the wiring harness (LULS line between the CVT assembly connector and the TCM connector).

STEP 2. Check for open circuit in LULS line between the CVT assembly connector and the TCM connector
Is the check result normal?
Go to Step 3.
Repair the connector(s) or the wiring harness.

STEP 3. Lock-up solenoid valve check
Refer to .
Is the check result normal?
Go to Step 5.
Go to Step 4.

STEP 4. Check for open circuit in power supply line between the CVT assembly connector and the valve body harness connector (lock-up solenoid valve line)
Refer to .
Is the check result normal?
Replace the valve body assembly. (Refer to )
Replace the valve body harness. (Refer to )

STEP 5. Symptom recheck after erasing diagnostic trouble code
Is the diagnostic trouble code set?
Replace the TCM.
Intermittent malfunction (Refer to GROUP 00 - How to Cope with Intermittent Malfunctions ).
