23A-VALVE BODY HARNESS CHECK

VALVE BODY HARNESS CHECK

1. Disconnect the CVT assembly connector.

2. Remove the oil pan. (Refer to

)

3. Disconnect the valve body harness connector.

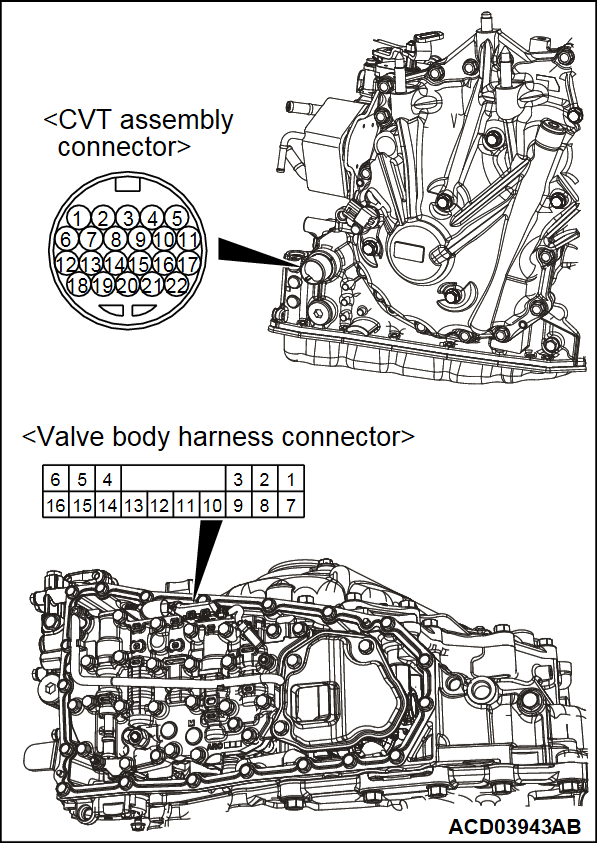

4. Check for continuity between the relevant CVT assembly connector terminals and the valve body harness connector terminals.

Item	Terminal number		Resistance value
Item	CVT assembly connector side	Valve body harness connector side	Resistance value
Line pressure solenoid valve	1	5	Continuity exists (2 Ω or less)
Line pressure solenoid valve	1	Other than above	No continuity
Primary pressure solenoid valve	2	12	Continuity exists (2 Ω or less)
Primary pressure solenoid valve	2	Other than above	No continuity
Secondary pressure solenoid valve	3	4	Continuity exists (2 Ω or less)
Secondary pressure solenoid valve	3	Other than above	No continuity
Select solenoid valve	4	2	Continuity exists (2 Ω or less)
Select solenoid valve	4	Other than above	No continuity
Lock-up solenoid valve	5	3	Continuity exists (2 Ω or less)
Lock-up solenoid valve	5	Other than above	No continuity
Primary pressure sensor	13	11	Continuity exists (2 Ω or less)
Primary pressure sensor	13	Other than above	No continuity
Secondary pressure sensor	14	9	Continuity exists (2 Ω or less)
Secondary pressure sensor	14	Other than above	No continuity
Sensor ground	18	8	Continuity exists (2 Ω or less)
Sensor ground	18	Other than above	No continuity
Sensor power supply	22	10	Continuity exists (2 Ω or less)
Sensor power supply	22	Other than above	No continuity

5. If not as specified, replace the valve body harness. (Refer to

)
