REMOVAL AND INSTALLATION <VEHICLES WITH S-AWC>


Pre-removal and post-installation operation
  • Under cover removal and installation (Refer to GROUP 51 - Under Cover .)
  • Transmission fluid draining and refilling (Refer to .)
  • Transfer oil draining and refilling (Refer to .)
  • Propeller shaft removal and installation (Refer to GROUP 25 - Propeller Shaft .)
  • Front axle crossmember assembly removal and installation (Refer to GROUP 32 - Crossmember .)
  • Drive shaft assembly <RH> removal and installation (Refer to GROUP 26 - Drive Shaft Assembly .)

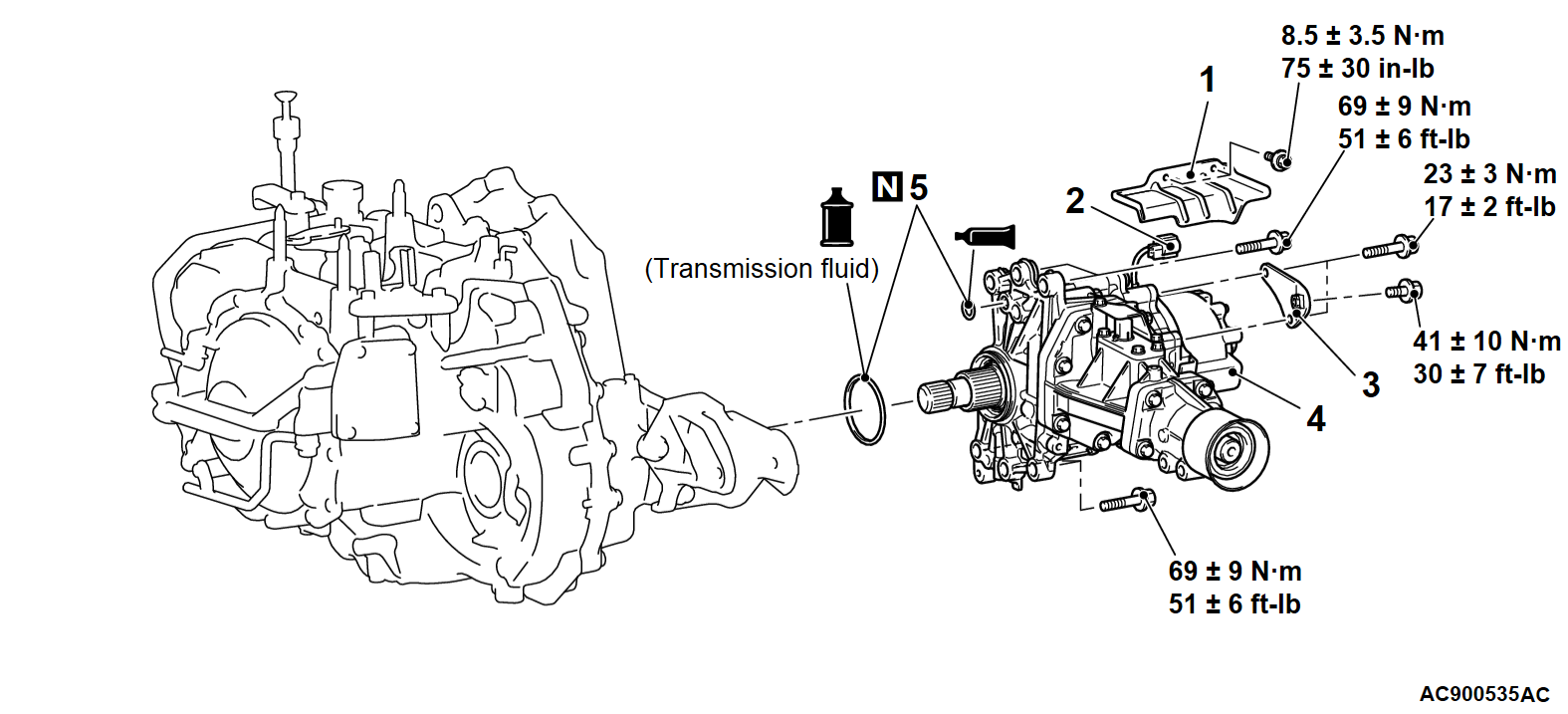

Removal steps
1.Heat protector
2.Connector connection
<<A>>3.Exhaust manifold bracket
4.Transfer assembly
5.O-ring



REMOVAL SERVICE POINT

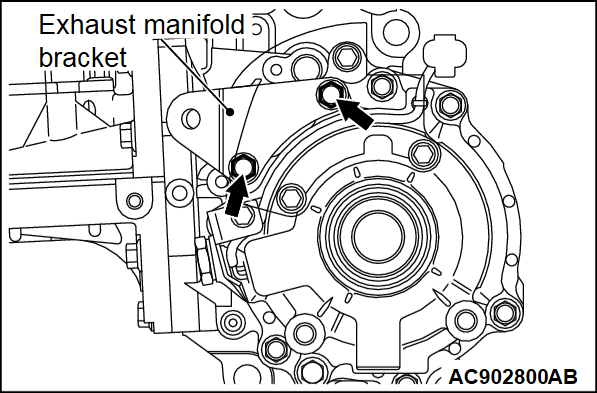

<<A>> EXHAUST MANIFOLD BRACKET
cautionDo not loosen the bolts other than shown.
