TRANSFER OIL CHANGE

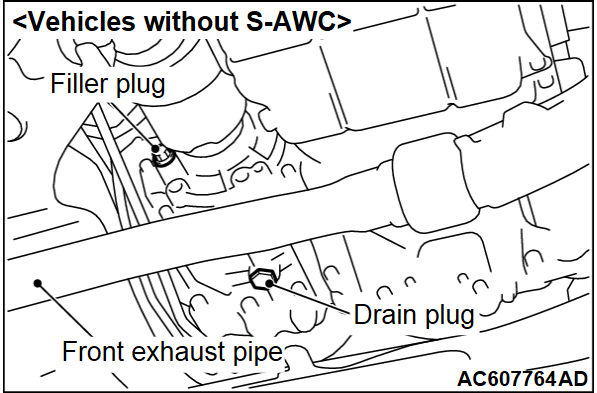

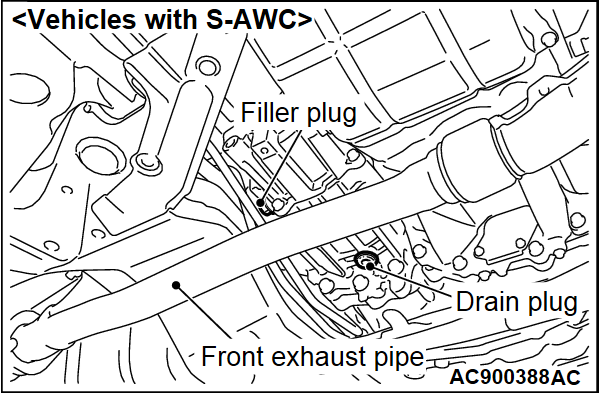

1. Remove the drain plug and gasket, to drain the transfer oil.
2. Install the drain plug and new gasket, and tighten to the specified torque.
Tightening torque: 32 ± 2 N·m (24 ± 1 ft-lb)

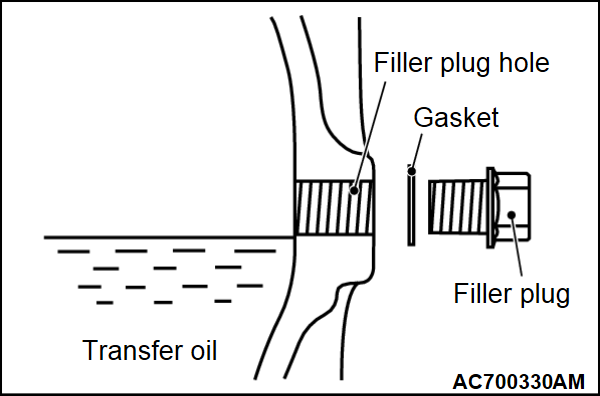

3. Remove the filler plug and gasket, and fill the transfer oil up to the lower edge of the filler plug hole.
  • Brand name:
    Mitsubishi Motors Genuine super hypoid gear oil API classification GL-5 SAE 80
  • Filling amount:
    0.47 dm3 (0.50 quarts) <Vehicles without S-AWC>
    0.45 dm3 (0.48 quarts) <Vehicles with S-AWC>
4. Install the filler plug and a new gasket, and tighten them to the specified torque.
Tightening torque: 32 ± 2 N·m (24 ± 1 ft-lb)
