REMOVAL AND INSTALLATION
cautionWhen the ACC-ECU is replaced, after turning the ignition switch "ON" or "LOCK"(OFF), always carry out the calibration of radar at one time (Refer to ).
Pre-removal operation
  • Front Bumper Assembly Removal (Refer to GROUP 51 - Front Bumper Assembly ).
Post-installation operation
  • Front Bumper Assembly Installation (Refer to GROUP 51 - Front Bumper Assembly ).

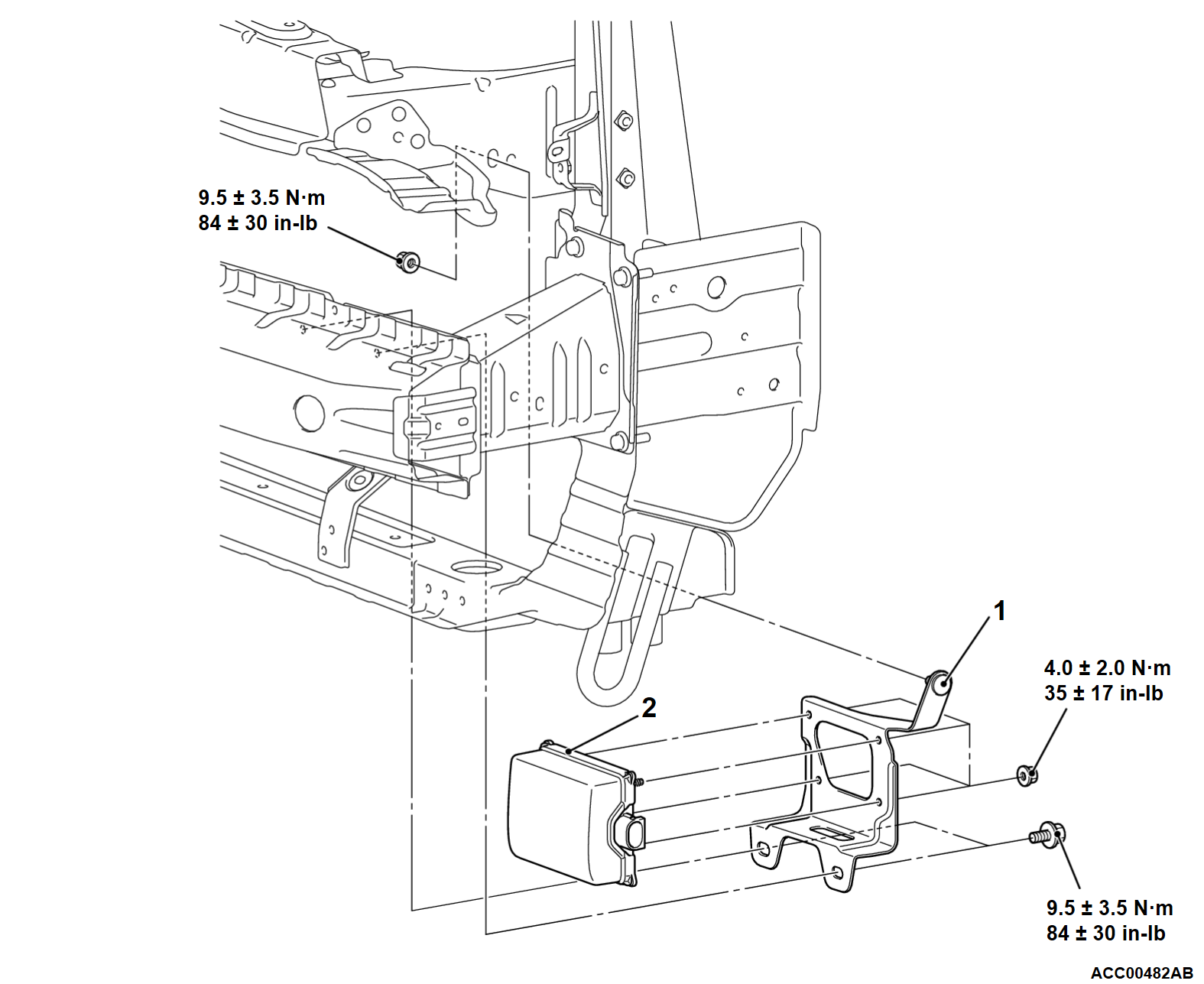

Removal steps
1.ACC-ECU bracket
2.ACC-ECU
