DTC P0121: Throttle Position Sensor (main) Plausibility




TECHNICAL DESCRIPTION
Compare the actual measurement of volumetric efficiency by a mass airflow sensor signal with volumetric efficiency estimated from a throttle position sensor (main) signal.


MONITOR EXECUTION
Continuous


MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
  • Not applicable
Sensor (The sensor below is determined to be normal)
  • Not applicable


DTC SET CONDITIONS

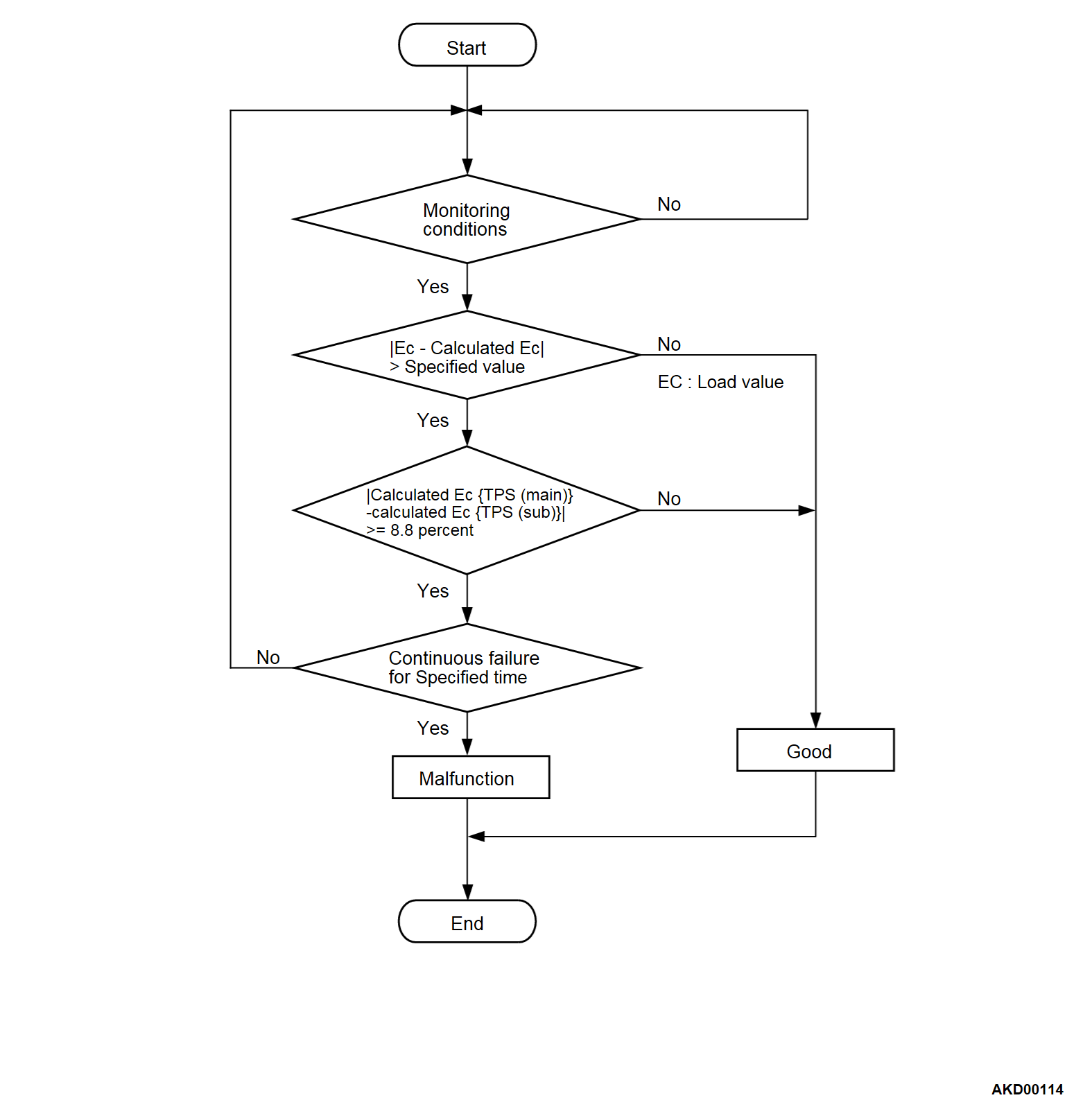

Logic Flow Chart
Check Conditions
  • The difference between the actual volumetric efficiency and the volumetric efficiency estimated by the throttle position sensor (main) is 0 percent or more. Or, the volumetric efficiency is 60 percent or less.
  • Engine speed is 750 r/min or higher.
Judgment Criterion
  • For 0.4 second, the difference between the actual volumetric efficiency and the volumetric efficiency estimated by the throttle position sensor (main) is 33 percent or more.
  • For 0.4 second, the difference between the volumetric efficiency estimated by the throttle position sensor (main) and the volumetric efficiency estimated by the throttle position sensor (sub) is 8.8 percent or more.


FAIL-SAFE AND BACKUP FUNCTION
  • Throttle opening degree is restricted.
  • Throttle opening degree position is in default position if throttle position sensor (sub) fails.


OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle Pattern 17 .


TROUBLESHOOTING HINTS (The most likely causes for this code to be stored are: )
  • Throttle position sensor (main) system failed.
  • Intake system vacuum leak.
  • There is some foreign matter around mass airflow sensor.
  • ECM failed.



DIAGNOSIS
Required Special Tools:
  • MB992744: Vehicle Communication Interface-Lite (V.C.I.-Lite)
  • MB992745: V.C.I.-Lite Main Harness A
  • MB992747: V.C.I.-Lite USB Cable Short
  • MB992748: V.C.I.-Lite USB Cable Long
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)
    • MB991824: Vehicles Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
  • MB991658: Test Harness
STEP 1. Using scan tool (M.U.T.-III), read the diagnostic trouble code (DTC).
cautionTo prevent damage to scan tool (M.U.T.-III), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (M.U.T.-III).
(1) Connect scan tool (M.U.T.-III). Refer to HOW TO CONNECT THE SCAN TOOL (M.U.T.-III) .
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Is the diagnostic trouble code other than P0121 stored?
Refer to, Diagnostic Trouble Code Chart .
Go to Step 2.

STEP 2. Using scan tool (M.U.T.-III), check data list item 13: Throttle Position Sensor (main).
(1) Detach the intake air hose at the throttle body.
(2) Disconnect the connector of the throttle body assembly.
(3) Use test harness special tool (MB991658) to connect only terminals TPSE, TPSM, TPS5 and TPSS line.
(4) Turn the ignition switch to the "ON" position.
(5) Set scan tool (M.U.T.-III) to the data reading mode for item 13, Throttle Position Sensor (main).
  • Output voltage should be between 0.3 and 0.7 volt when the throttle valve is fully closed with your finger.
  • Output voltage should be 4.0 volts or more when the throttle valve is fully open with your finger.
(6) Turn the ignition switch to the "LOCK" (OFF) position.
Is the sensor operating properly?
Go to Step 3.
Refer to, DTC P0122 - Throttle Position Sensor (main) Circuit Low Input , DTC P0123 - Throttle Position Sensor (main) Circuit High Input .

STEP 3. Check for intake system vacuum leak.
Are there any abnormalities?
Repair it. Then go to Step 6.
Go to Step 4.

STEP 4. Check for foreign matter being around the mass airflow sensor.
Are there any foreign matter?
Repair it. Then go to Step 6.
Go to Step 5.

STEP 5. Check the trouble symptoms.
(1) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle Pattern 17 .
(2) Check the diagnostic trouble code (DTC).
Is DTC P0121 stored?
Replace the ECM (Refer to Removal and Installation ). Then go to Step 6.
It can be assumed that this malfunction is intermittent. Refer to GROUP 00, How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions .

STEP 6. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle Pattern 17 .
(2) Check the diagnostic trouble code (DTC).
Is DTC P0121 stored?
Retry the troubleshooting.
The inspection is complete.
