DTC P2253: Heated Oxygen Sensor Offset Circuit High Voltage




HEATED OXYGEN SENSOR OFFSET CIRCUIT HIGH VOLTAGE CIRCUIT
Refer to DTC P0137 - Heated Oxygen Sensor (rear) Circuit Low Voltage .


CIRCUIT OPERATION
Refer to DTC P0137 - Heated Oxygen Sensor (rear) Circuit Low Voltage .


TECHNICAL DESCRIPTION
  • The ECM applies an offset voltage of 0.5 volt to the heated oxygen sensor.
  • The ECM checks for heated oxygen sensor offset voltage.


DESCRIPTIONS OF MONITOR METHODS
  • Heated oxygen sensor offset voltage is over specified range.


MONITOR EXECUTION
  • Continuous


MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
  • Not applicable
Sensor (The sensor below is determined to be normal)
  • Not applicable


DTC SET CONDITION

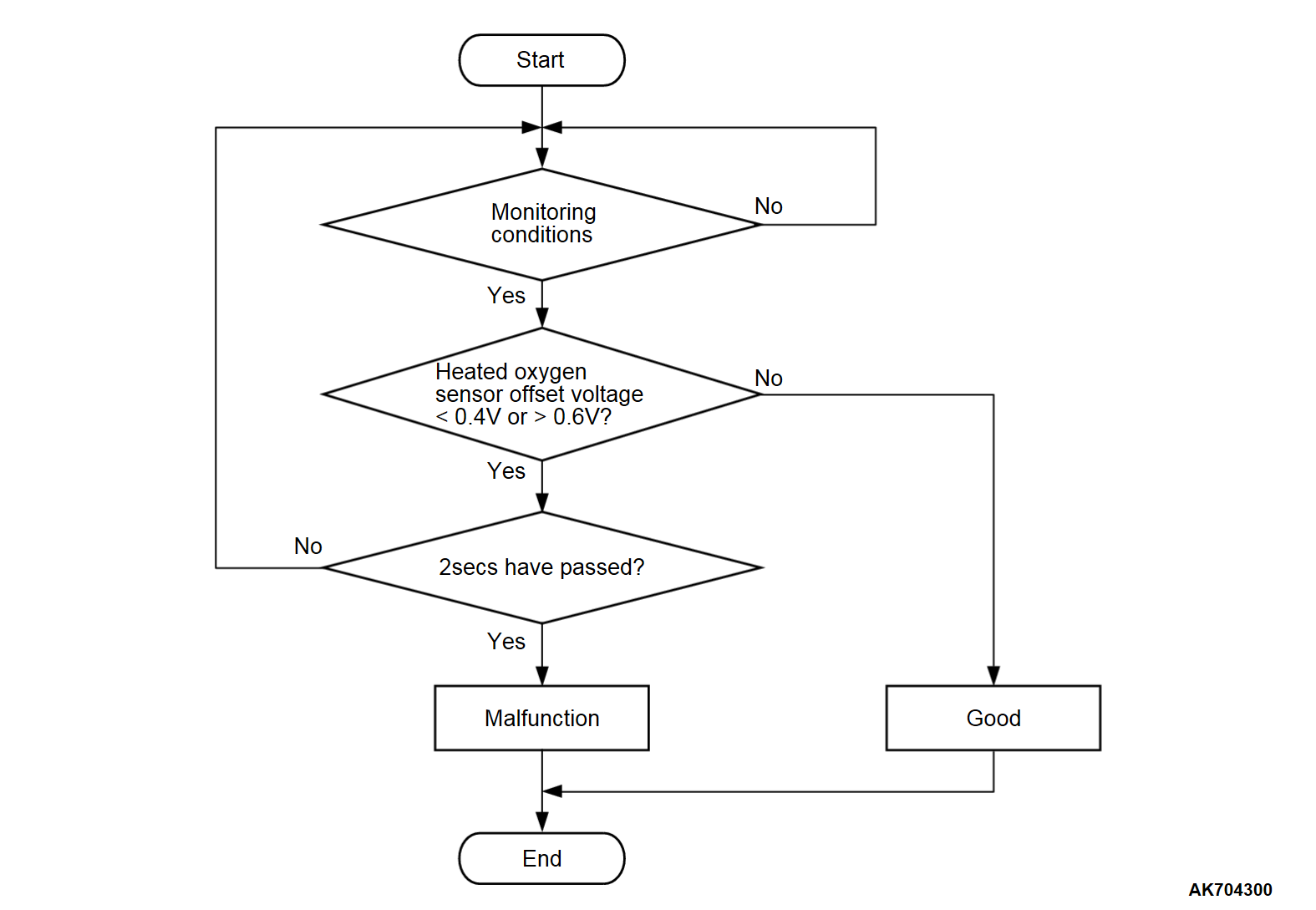

Logic Flow Chart


Check Condition
  • More than 2 seconds have passed since the engine starting sequence was completed.
Judgment Criterion
  • Heated oxygen sensor offset voltage is more than 0.6 volt for 2 seconds.


FAIL-SAFE AND BACKUP FUNCTION
  • Does not control air-fuel ratio closed loop.


OBD-II DRIVE CYCLE PATTERN
  • Refer to Diagnosis Function - OBD-II Drive Cycle - Pattern 23 .


TROUBLESHOOTING HINTS (The most likely causes for this code to be stored are: )
  • Heated oxygen sensor (rear) failed.
  • Shorted heated oxygen sensor (rear) circuit or connector damage.
  • ECM failed.



DIAGNOSIS
Required Special Tools:
  • MB992744: Vehicle Communication Interface-Lite (V.C.I.-Lite)
  • MB992745: V.C.I.-Lite Main Harness A
  • MB992747: V.C.I.-Lite USB Cable Short
  • MB992748: V.C.I.-Lite USB Cable Long
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)
    • MB991824: Vehicles Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
  • MB991658: Test Harness
  • MB992110: Power Plant ECU Check Harness
STEP 1. Check the heated oxygen sensor (rear).
(1) Disconnect the heated oxygen sensor (rear) connector and connect test harness special tool MB991658 to the connector on the heated oxygen sensor (rear) side.
(2) Warm up the engine until engine coolant temperature reaches 80°C (176°F) or higher.
(3) Drive at 50 km/h (31mph) or more for 10 minutes.
(4) Connect a digital voltage meter between terminal O2RL line and terminal ORLE line.
(5) Measure the output voltage of heated oxygen sensor under the following driving.
  • Transaxle: 2nd
  • Drive with wide open throttle
  • Engine: 3,500 r/min or more
(6)
Standard value: 0.6 - 1.0 V
noteIf the temperature of sensing area does not reach the high temperature [of approximately 400°C (752°F) or more] even though the heated oxygen sensor is normal, the output voltage would be possibly low in spite of the rich air-fuel ratio.
noteWhen the vehicle is driven with high loads, the temperature of the sensing area of the heated oxygen sensor is sufficiently high. Thus, it is not necessary to apply the voltage to the heater.
Is the measured voltage between 0.6 and 1.0 volt?
Go to Step 2.
Replace the heated oxygen sensor (rear). Then go to Step 6.

STEP 2. Measure the sensor offset voltage at ECM connector by using power plant ECU check harness special tool MB992110.
(1) Disconnect all ECM connectors. Connect the power plant ECU check harness special tool MB992110 between the separated connectors.
(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal ORLE and ground.
  • Voltage should be between 0.4 and 0.6 volt.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Is the measured voltage between 0.4 and 0.6 volt?
Go to Step 5.
Go to Step 3.

STEP 3. Check of short circuit to power supply in ORLE line between heated oxygen sensor (rear) connector and ECM connector.
Is the harness wire in good condition?
Go to Step 4.
Repair it. Then go to Step 6.

STEP 4. Check of short circuit to power supply in O2RL line between heated oxygen sensor (rear) connector and ECM connector.
Is the harness wire in good condition?
Go to Step 5.
Repair it. Then go to Step 6.

STEP 5. Check the trouble symptoms.
(1) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 23 .
(2) Check the diagnostic trouble code (DTC).
Is DTC P2253 stored?
Replace the ECM (Refer to Removal and Installation ). Then go to Step 6.
It can be assumed that this malfunction is intermittent. Refer to GROUP 00, How to Use Troubleshooting/ Inspection Service Points - How to Cope with Intermittent Malfunctions .

STEP 6. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 23 .
(2) Check the diagnostic trouble code (DTC).
Is DTC P2253 stored?
Retry the troubleshooting.
The inspection is complete.
