DTC P0137: Heated Oxygen Sensor (rear) Circuit Low Voltage




CIRCUIT OPERATION
  • A voltage corresponding to the oxygen concentration in the exhaust gas is sent to the ECM terminal O2RL from the output terminal of the heated oxygen sensor (rear).
  • Terminal ORLE line of the heated oxygen sensor (rear) is grounded with ECM terminal ORLE.
  • The ECM applies an offset voltage of 0.5 volt to ground terminal of the heated oxygen sensor (rear).


TECHNICAL DESCRIPTION
  • The output signal of the linear air-fuel ratio sensor is compensated by the output signal of the heated oxygen sensor (rear).
  • The ECM checks for the heated oxygen sensor (rear) output voltage.


DESCRIPTIONS OF MONITOR METHODS
  • Heated oxygen sensor (rear) output voltage is under the specified range.


MONITOR EXECUTION
  • Continuous


MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
  • Linear air-fuel ratio sensor monitor
  • Linear air-fuel ratio sensor heater monitor
  • Heated oxygen sensor (rear) heater monitor
  • Heated oxygen sensor offset voltage monitor
Sensor (The sensor below is determined to be normal)
  • Mass airflow sensor
  • Engine coolant temperature sensor
  • Intake air temperature sensor
  • Barometric pressure sensor
  • Throttle position sensor


DTC SET CONDITIONS

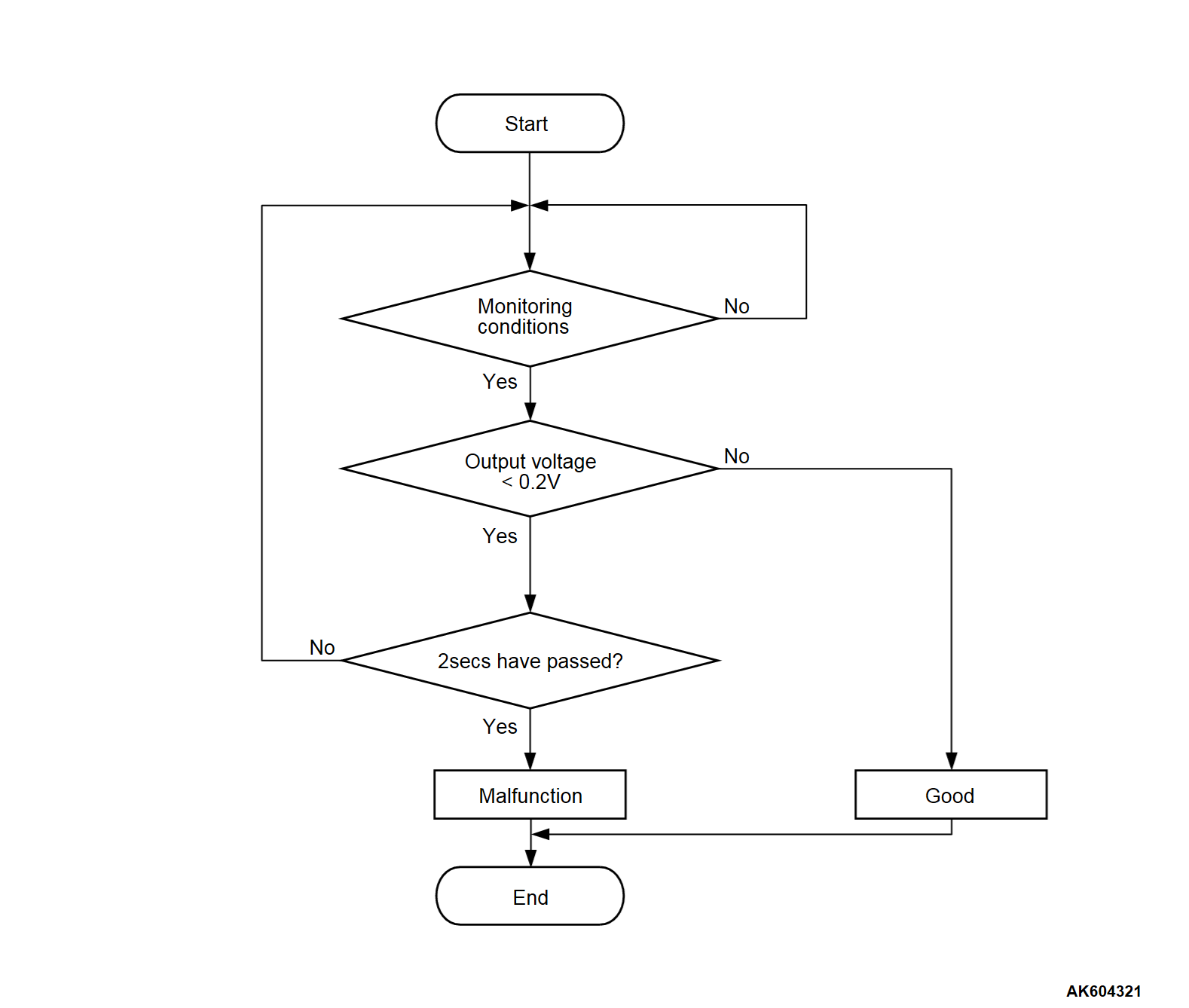

Logic Flow Chart


Check Conditions
  • Heated oxygen sensor offset voltage is between 0.4 and 0.6 volt.
  • Battery positive voltage is between 11 and 16.5 volts.
  • 3 minutes or more have passed since the engine starting sequence was completed.
Judgment Criterion
  • Heated oxygen sensor (rear) output voltage is lower than 0.2 volt for 2 seconds.


FAIL-SAFE AND BACKUP FUNCTION
  • None


OBD-II DRIVE CYCLE PATTERN
  • Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 22 .


TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
  • Heated oxygen sensor (rear) failed.
  • Open or shorted heated oxygen sensor (rear) circuit, harness damage or connector damage.
  • ECM failed.



DIAGNOSIS
Required Special Tools:
  • MB992744: Vehicle Communication Interface-Lite (V.C.I.-Lite)
  • MB992745: V.C.I.-Lite Main Harness A
  • MB992747: V.C.I.-Lite USB Cable Short
  • MB992748: V.C.I.-Lite USB Cable Long
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)
    • MB991824: Vehicles Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
  • MB991658: Test Harness
  • MB992110: Power Plant ECU Check Harness
STEP 1. Using scan tool (M.U.T.-III), check data list item AD: Heated Oxygen Sensor (rear).
cautionTo prevent damage to scan tool (M.U.T.-III), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (M.U.T.-III).
(1) Connect scan tool (M.U.T.-III). Refer to HOW TO CONNECT THE SCAN TOOL (M.U.T.-III) .
(2) Start the engine and run at idle.
(3) Set scan tool (M.U.T.-III) to the data reading mode for item AD, Heated Oxygen Sensor (rear).
  1. Transaxle: 2nd
  2. Drive with wide open throttle
  3. Engine: 3,500 r/min
    • The output voltages should be between 0.6 and 1.0 volt.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Is the sensor operating properly?
It can be assumed that this malfunction is intermittent. Refer to GROUP 00, How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions .
Go to Step 2.

STEP 2. Measure the sensor output voltage at heated oxygen sensor (rear) connector by backprobing
(1) Do not disconnect the heated oxygen sensor (rear) connector.
(2) Start the engine and run at idle.
(3) Measure the voltage between terminal O2RL line and ground by backprobing under the following driving.
  1. Transaxle: 2nd
  2. Drive with wide open throttle
  3. Engine: 3,500 r/min or more
    • The output voltage should be between 1.0 and 1.5 volts.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Is the measured voltage within the specified range?
Go to Step 3.
Go to Step 4.

STEP 3. Measure the sensor output voltage at ECM connector by using power plant ECU check harness special tool MB992110.
(1) Disconnect all ECM connectors. Connect the power plant ECU check harness special tool MB992110 between the separated connectors.
(2) Start the engine and run at idle.
(3) Measure the voltage between terminal O2RL and ground by backprobing under the following driving.
  1. Transaxle: 2nd
  2. Drive with wide open throttle
  3. Engine: 3,500 r/min or more
    • The output voltage should be between 1.0 and 1.5 volts.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Is the measured voltage between 1.0 and 1.5 volts?
Go to Step 4.
Repair or replace the connector(s), or check and repair the harness of open circuit and harness damage in O2RL line between heated oxygen sensor (rear) connector and ECM connector. Then go to Step 9.

STEP 4. Measure the sensor offset voltage at ECM connector by using power plant ECU check harness special tool MB992110.
(1) Disconnect all ECM connectors. Connect the power plant ECU check harness special tool MB992110 between the separated connectors.
(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal ORLE and ground.
  • Voltage should be between 0.4 and 0.6 volt.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Is the measured voltage between 0.4 and 0.6 volt?
Go to Step 5.
Repair or replace the connector(s), or check and repair the harness of short to ground in ORLE line between heated oxygen sensor (rear) connector and ECM connector. Then go to Step 9.

STEP 5. Check of open circuit and harness damage in ORLE line between heated oxygen sensor (rear) connector and ECM connector.
Is the harness wire in good condition?
Go to Step 6.
Repair the connector(s) or wiring harness. Then go to Step 9.

STEP 6. Check of short circuit to ground in O2RL line between heated oxygen sensor (rear) connector and ECM connector.
Is the harness wire in good condition?
Go to Step 7.
Repair the connector(s) or wiring harness. Then go to Step 9.

STEP 7. Check the heated oxygen sensor (rear).
(1) Disconnect the heated oxygen sensor (rear) connector and connect test harness special tool MB991658 to the connector on the heated oxygen sensor (rear) side.
(2) Warm up the engine until engine coolant temperature reaches 80°C (176°F) or higher.
(3) Drive at 50 km/h (31mph) or more for 10 minutes.
(4) Connect a digital voltage meter between terminal O2RL line and terminal O2LE line.
(5) Measure the output voltage of heated oxygen sensor under the following driving.
  • Transaxle: 2nd
  • Drive with wide open throttle
  • Engine: 3,500 r/min or more
Standard value: 0.6 - 1.0 V
noteIf the temperature of sensing area does not reach the high temperature [of approximately 400°C (752°F) or more] even though the heated oxygen sensor is normal, the output voltage would be possibly low in spite of the rich air/fuel ratio.
noteWhen the vehicle is driven with high loads, the temperature of the sensing area of the heated oxygen sensor is sufficiently high. Thus, it is not necessary to apply the voltage to the heater.
Is the measured voltage between 0.6 and 1.0 volt?
Go to Step 8.
Replace the heated oxygen sensor (rear). Then go to Step 9.

STEP 8. Using scan tool (M.U.T.-III), check data list item AD: Heated Oxygen Sensor (rear).
(1) Start the engine and run at idle.
(2) Set scan tool (M.U.T.-III) to the data reading mode for item AD, Heated Oxygen Sensor (rear).
  1. Transaxle: 2nd
  2. Drive with wide open throttle
  3. Engine: 3,500 r/min or more
    • The output voltage should be between 0.6 and 1.0 volt.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Is the sensor operating properly?
It can be assumed that this malfunction is intermittent. Refer to GROUP 00, How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions .
Replace the ECM (Refer to Removal and Installation ). Then go to Step 9.

STEP 9. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 22 .
(2) Check the diagnostic trouble code (DTC).
Is DTC P0137 set?
Retry the troubleshooting.
The inspection is complete.
