REMOVAL AND INSTALLATION


Pre-removal operation
  • Discharging refrigerant (Refer to ).
  • Engine room under cover front B and engine room side cover removal (Refer to GROUP 51 - Under cover ).
  • Drive belt removal (Refer to GROUP 11A - Crankshaft Pulley ). <2.4L Engine>
  • Drive belt removal (Refer to GROUP 11C - Crankshaft Pulley ). <3.0L Engine>
  • Generator and others belt removal (Refer to GROUP 11A - Crankshaft Pulley ). <2.4L Engine>
  • Generator and others belt removal (Refer to GROUP 11C - Crankshaft Pulley ). <3.0L Engine>
Post-installation Operation
  • Generator and others belt installation (Refer to GROUP 11A - Crankshaft Pulley ) <2.4L Engine>
  • Generator and others belt installation (Refer to GROUP 11C - Crankshaft Pulley ) <3.0L Engine>
  • Drive belt installation (Refer to GROUP 11A - Crankshaft Pulley ) <2.4L Engine>
  • Drive belt installation (Refer to GROUP 11C - Crankshaft Pulley ) <3.0L Engine>
  • Generator drive belt tension check and adjustment (Refer to GROUP 11A - Drive Belt tension Check ). <2.4L Engine>
  • Generator drive belt tension check and adjustment (Refer to GROUP 11C - Drive Belt tension Check ). <3.0L Engine>
  • Engine room under cover front B and engine room side cover installation (Refer to GROUP 51 - Under Cover ).
  • Charging refrigerant (Refer to ).

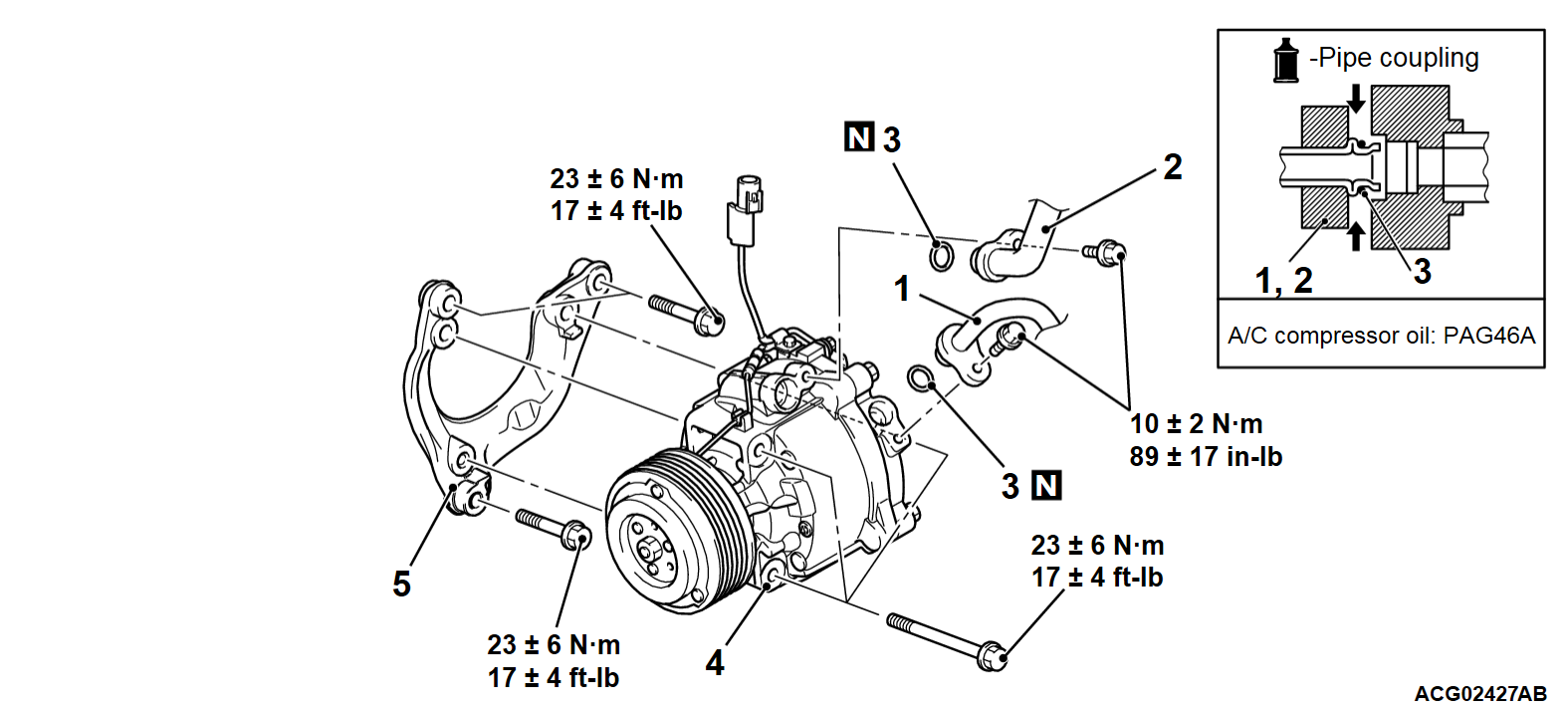

<2.4L Engine>
Removal steps
<<A>>1.Discharge flexible hose connection
<<A>>2.Suction flexible hose connection
3.O-ring
<<B>>>>A<<4.A/C compressor and clutch assembly
5.A/C compressor bracket
noteThe service points which are not described are the same as before.

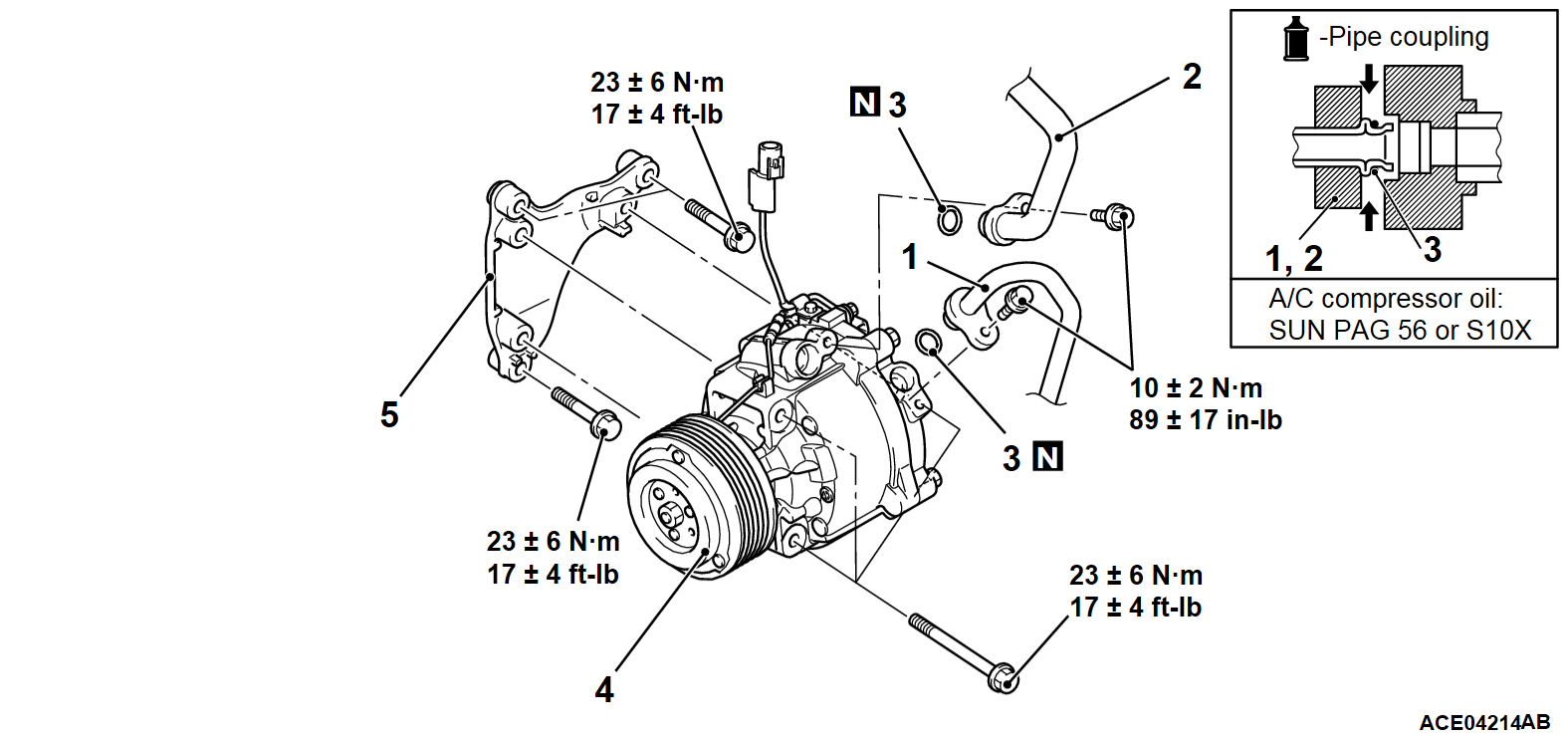

<3.0L Engine>
Removal steps
<<A>>1.Discharge flexible hose connection
<<A>>2.Suction flexible hose connection
3.O-ring
<<B>>>>A<<4.A/C compressor and clutch assembly
5.A/C compressor bracket
noteThe service points which are not described are the same as before.


REMOVAL SERVICE POINTS


<<A>> DISCHARGE FLEXIBLE HOSE/SUCTION FLEXIBLE HOSE DISCONNECTION
cautionUse the plug which is not breathable because A/C compressor oil or receiver have high hygroscopicity.
Plug the hose nipple removed to prevent the entry of dust and dirt.



<<B>> A/C COMPRESSOR AND CLUTCH ASSEMBLY REMOVAL
Be careful not to spill the A/C compressor oil and remove the A/C compressor.




INSTALLATION SERVICE POINT


>>A<< A/C COMPRESSOR AND CLUTCH ASSEMBLY INSTALLATION
If a new compressor is installed, first adjust the amount of oil according to the procedures described below, and then install the compressor.
1. Measure the amount [X cm3 (X fl.oz) of oil within the removed compressor.
2. Drain (from the new compressor) the amount of oil calculated according to the following formula, and then install the new compressor.
New compressor oil amount = 70cm3 (2.4 fl.oz)
70 cm3 - X cm3 = Y cm3 (2.4 fl.oz. - X fl.oz. = Y fl.oz)
noteY cm3 (Y fl.oz) indicates the amount of oil in the refrigerant line, the condenser, the evaporator, etc.
noteWhen replacing the following parts at the same times as the compressor, subtract the rated oil amount of each part from Y cm3 (Y fl.oz) and discharge from the new compressor.

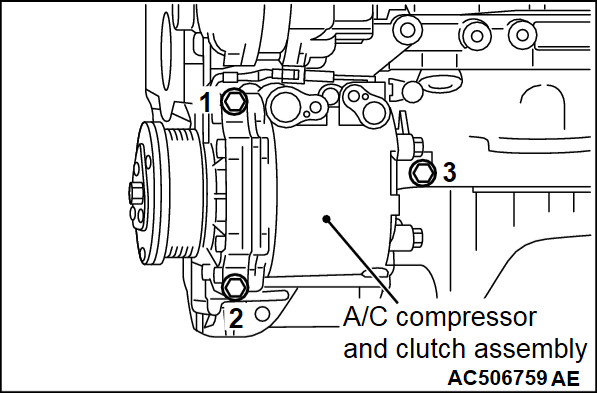

3. Tighten A/C compressor and clutch assembly mounting bolts to the specified torque in the order of number shown in the figure.
Tightening torque: 23 ± 6 N·m (17 ± 4 ft-lb)
