GENERATOR DRIVE BELT TENSION CHECK
1.
caution
Check the drive belt tension after turning the crankshaft clockwise one turn or more.

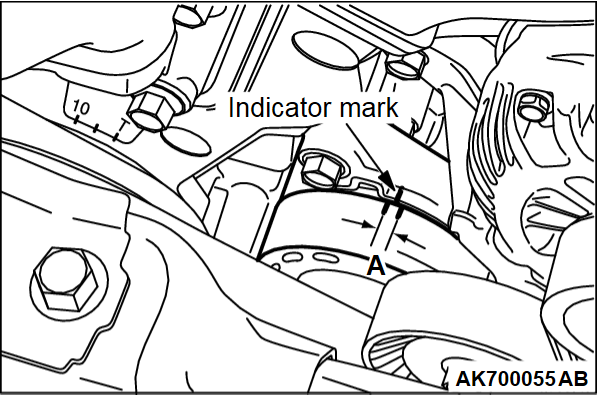

Make sure that the indicator mark is within the area marked with A in the illustration.
2.
If the mark is out of the area, replace the drive belt. (Refer to
).
note
The drive belt tension adjustment is not necessary, as the engine is equipped with an auto-tensioner.
