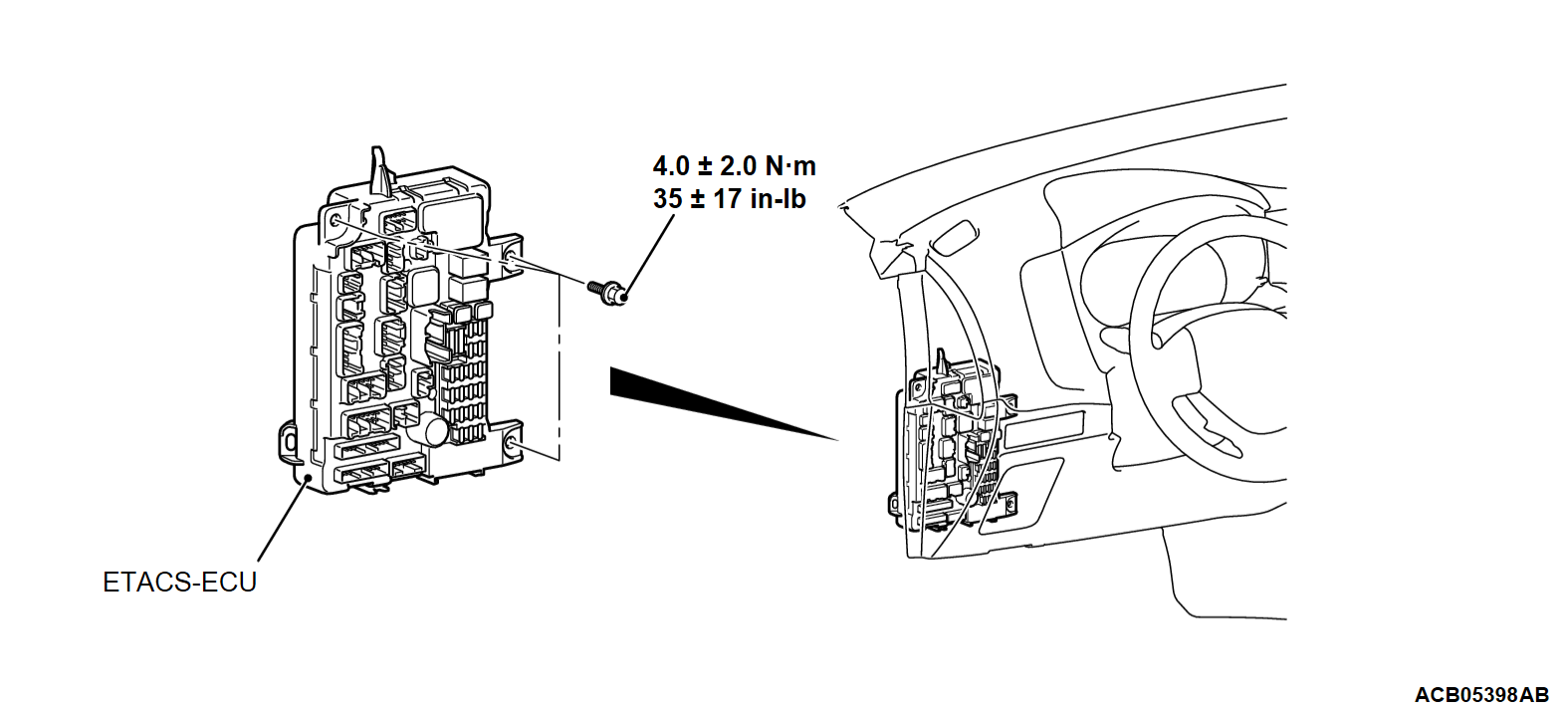

REMOVAL AND INSTALLATION
caution
  • When the ETACS-ECU of vehicles without KOS is replaced, the encrypted code of the ignition key needs to be registered to the ETACS-ECU. (If the encrypted code is not registered, the engine cannot be started. Register the encrypted code as described in Immobilizer System - How to Register Key ID .)
  • When the ETACS-ECU is replaced, chassis number writing and coding must be performed. When DTC No. B1761 "Chassis No. not programmed" or No. B222C "Coding not completed" is set in the ETACS-ECU, perform chassis number writing and coding. Refer to the "scan tool operation manual" and perform coding.
Pre-removal and Post-installation Operation
  • Bottom Cover Assembly (driver's side) Removal and Installation (Refer to GROUP 52A - Instrument Panel Assembly ).
  • Instrument Panel Lower LH Removal and Installation (Refer to GROUP 52A - Instrument Panel Assembly ).
