FUEL LEVEL SENSOR CHECK


<FWD>

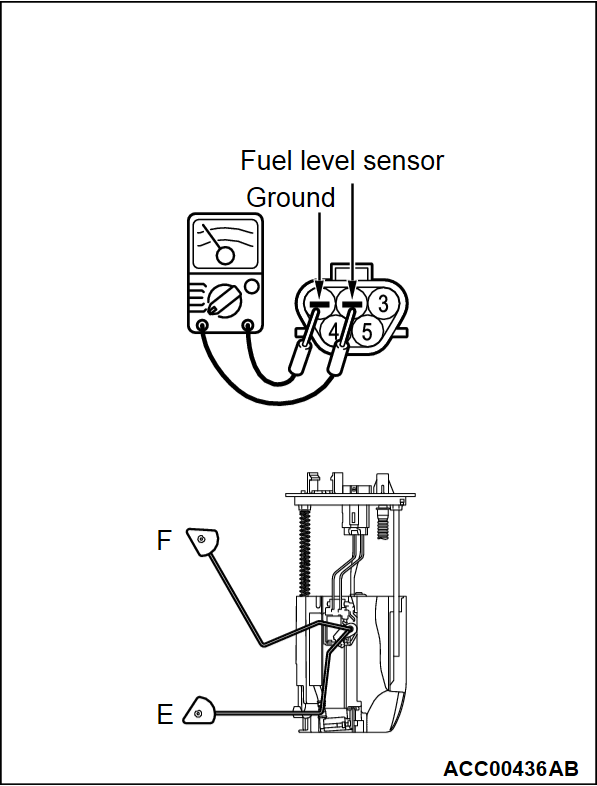

NOMINAL RESISTANCE OF THE FUEL LEVEL SENSOR
1. Remove the fuel pump module (Refer to GROUP 13C - On-vehicle Service, Fuel Pump Module Replacement ).
2. When float of the fuel level sensor is in stopper positions "F" and "E", ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.
Standard value:

Float positionGauge resistance value (ohms)
Stopper position "F"13.0 ± 1.0
Stopper position "E"120.0 ± 1.0
Float positionGauge resistance value (ohms)
Stopper position "F"13.0 ± 1.0
Stopper position "E"120.0 ± 1.0
When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.

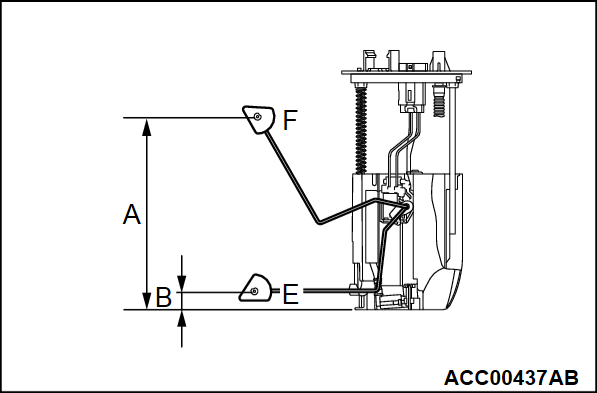

FUEL LEVEL SENSOR FLOAT HEIGHT
1. Remove the fuel pump module (Refer to GROUP 13C - On-vehicle Service, Fuel Pump Module Replacement ).
2. When float is moved to contact the float arm on the stopper, ensure that stopper positions "F" (height A) and "E" (height B) are within the standard value.
Standard value:

Float positionFloat height mm (in)
Stopper position "F" (height A)201.9 (7.9)
Stopper position "E" (height B)18.3 (0.7)
Float positionFloat height mm (in)
Stopper position "F" (height A)201.9 (7.9)
Stopper position "E" (height B)18.3 (0.7)




<AWD>

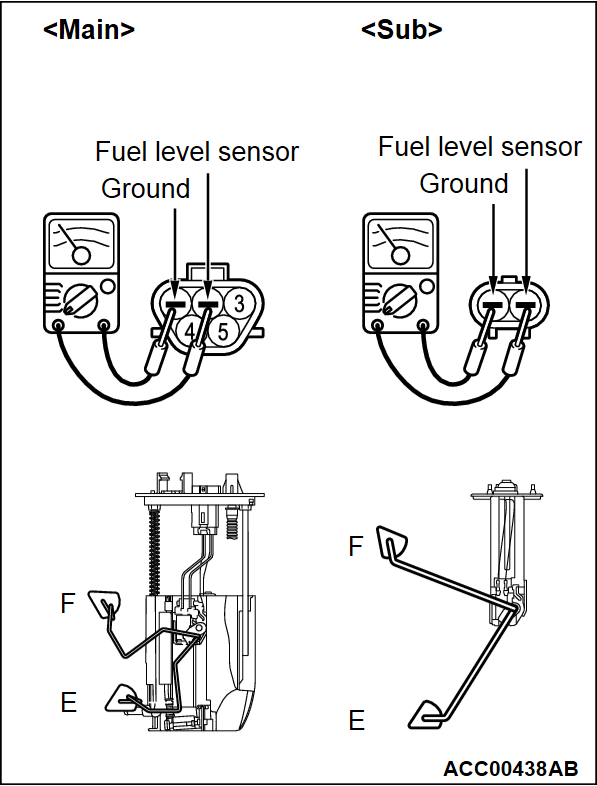

NOMINAL RESISTANCE OF THE FUEL LEVEL SENSOR
1. Remove the fuel pump module (Refer to GROUP 13C - On-vehicle Service, Fuel Pump Module Replacement ) <Main>.
2. Remove the fuel level sensor (Refer to GROUP 13C - On-vehicle Service, Fuel Level Sensor (Sub) Replacement <AWD>) <Sub>.
3. When float of the fuel level sensor is in stopper positions "F" and "E", ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.
Standard value:

Float positionGauge resistance value (ohms)
MainSub
Stopper position "F"6.5 ± 1.06.5 ± 1.0
Stopper position "E"44.7 ± 1.075.3 ± 1.0
Float positionGauge resistance value (ohms)
MainSub
Stopper position "F"6.5 ± 1.06.5 ± 1.0
Stopper position "E"44.7 ± 1.075.3 ± 1.0
When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.

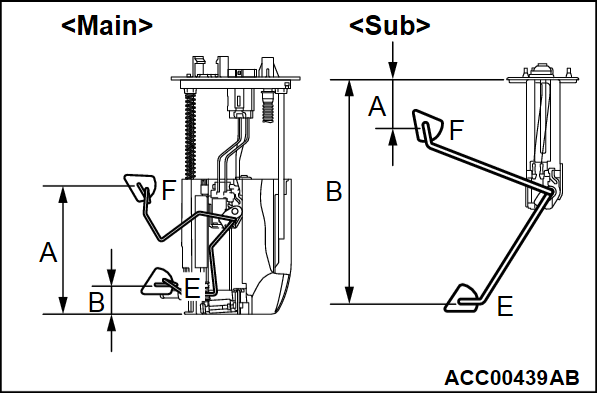

FUEL LEVEL SENSOR FLOAT HEIGHT
1. Remove the fuel pump module (Refer to GROUP 13C - On-vehicle Service, Fuel Pump Module Replacement ) <Main>.
2. Remove the fuel level sensor (Refer to GROUP 13C - On-vehicle Service, Fuel Level Sensor (Sub) Replacement <AWD>) <Sub>.
3. When float is moved to contact the float arm on the stopper, ensure that stopper positions "F" (height A) and "E" (height B) are within the standard value.
Standard value:

Float positionFloat height mm (in)
MainSub
Stopper position "F" (height A)166.2 (6.5)48.8 ± 3.0 (1.9 ± 0.1)
Stopper position "E" (height B)38.8 (1.5)238.0 ± 3.0 (9.3 ± 0.1)
Float positionFloat height mm (in)
MainSub
Stopper position "F" (height A)166.2 (6.5)48.8 ± 3.0 (1.9 ± 0.1)
Stopper position "E" (height B)38.8 (1.5)238.0 ± 3.0 (9.3 ± 0.1)
